Wio Lite RISC-V (GD32VF103) - With ESP8266

  • 199 kr

Estimated availability in November Wio Lite RISC-V is a  feather form factor RISC-V development board Based on GD32VF103, with the onboard E

Produkten är tyvärr slut i lager. :(

Artikelnummer: 530
Dela

Estimated availability in November

Wio Lite RISC-V is a  feather form factor RISC-V development board Based on GD32VF103, with the onboard ESP8266 Wio Core, it also features WiFi function.

GD32VF103CBT6 is a Bumblebee core based on Nuclei System Technology. Support RV32IMAC instruction set and ECLIC fast interrupt function. Core power consumption is only 1/3 of that of traditional Cortex-M3.

Onboard ESP8266 WiFi core and Lipo charging circuit make it a perfect IoT control board. There is also a micro SD slot at the backside of this board, which can expand system resources.

Meanwhile, as a Wio Lite Board, Wio Lite RISC-V definitely can work with the Grove Shield for Wio Lite. With this shield, over 200 Grove sensors, actuators, and displays are all yours. For instance, you can choose whatever grove OLED you like to make it a visual development board.

Features

  • RISC-V MCU GD32VF103
  • ESP8266 WiFi Wio Core
  • Feather form factor
  • JST2.0 Lipo Port
  • Onboard SD Slot
  • USB Type C

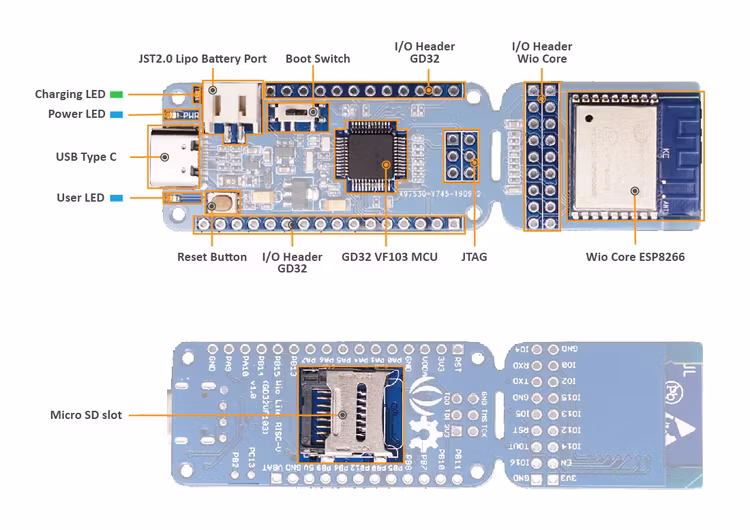

Hardware Overview
