ARDUINO UNO WIFI REV2

I lager.

625 kr

Lägg till WiFi till dina enheter med Arduino Uno WiFi. Det är i grunden en Arduino Uno Rev3 med mer spark: Den levereras med en helt ny 8-bitars mikroprocessor från Microchip och en inbyggd IMU (inertimätningsenhet). När det gäller WiFi-anslutningen är den säker med den nya ECC608-kryptokretsacceleratorn.

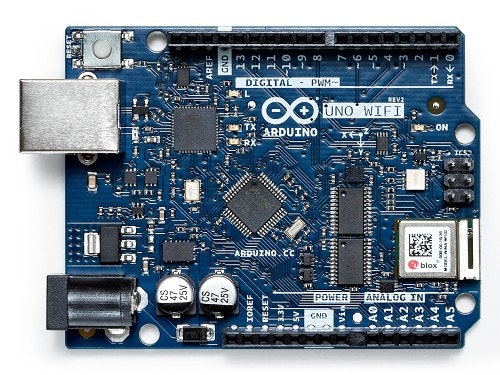

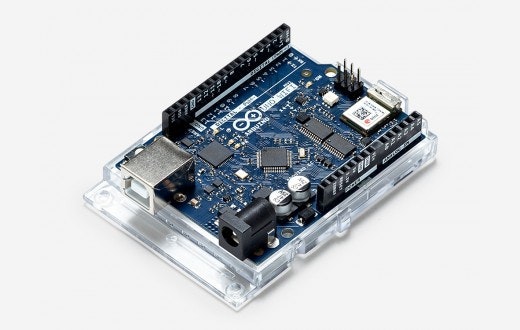

Add this board to a device and you'll be able to connect it to a WiFi network, using its secure ECC608 crypto chip accelerator. The Arduino Uno WiFi is functionally the same as the Arduino Uno Rev3, but with the addition of WiFi and some other enhancements. It incorporates a brand new 8-bit microprocessor from Microchip and has an onboard IMU (Inertial Measurement Unit).

The Wi-Fi Module is a self-contained SoC with integrated TCP/IP protocol stack that can provide access to a Wi-Fi network, or act as an access point.

The Arduino Uno WiFi has 14 digital input/output pins—5 can be used as PWM outputs with Pin 11 that is not PWM as on the UNO Rev3 —6 analogue inputs, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller. Simply connect it to a computer with a USB cable or power it with an AC adapter to get started.

MicrocontrollerATMEGA4809
Operating Voltage5V
Input Voltage (recommended)7 - 12V
Input Voltage (limit)6 - 12V
Digital I/O Pins14 — 5 Provide PWM Output
PWM Digital I/O Pins5
Analog Input Pins6
DC Current per I/O Pin20 mA
DC Current for 3.3V Pin50 mA
Flash Memory48 KB (ATMEGA4809)
SRAM6,144 B (ATMEGA4809)
EEPROM256 Bytes (ATMEGA4809)
Clock Speed16 MHz
LED_BUILTIN25
Length68.6 mm
Width53.4 mm
Weight25 g

PLEASE NOTE: Pin 11 is not PWM enabled and the connector is wrongly marked on some batches. Available PWM pins are: 3, 5, 6, 9, and 10.
