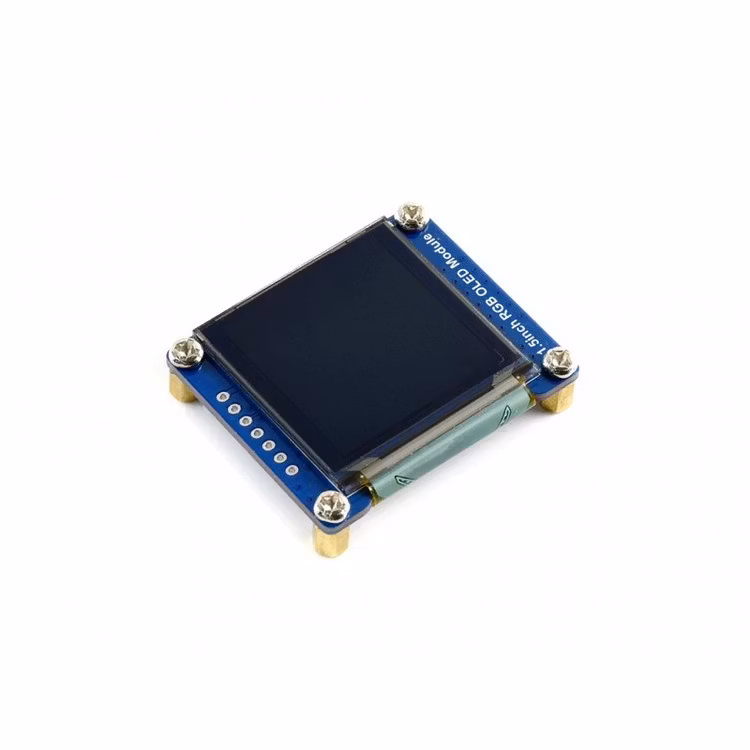

1.5inch RGB OLED Module

I lager.

249 kr

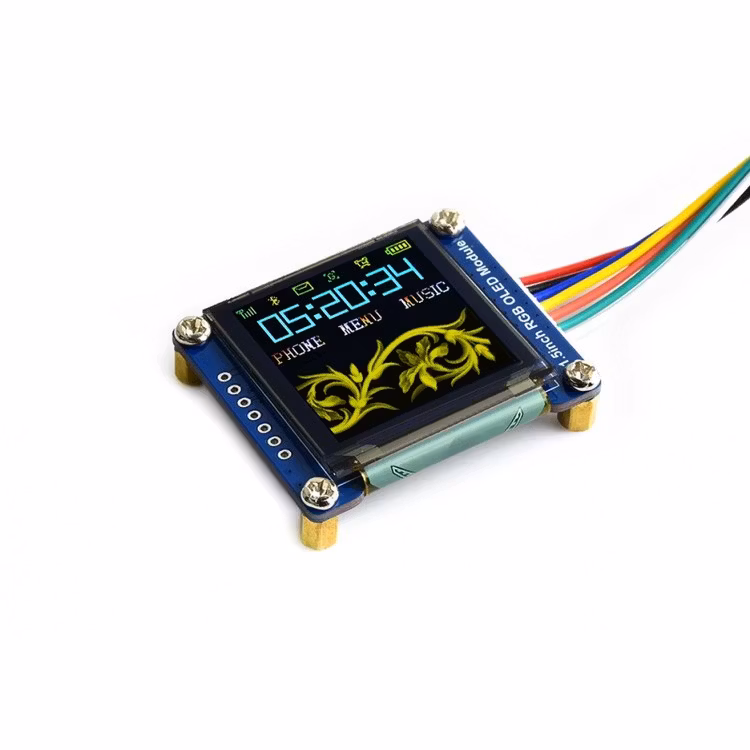

This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.

Features

  • 128x128 high resolution, 65K colors, clearly displays colorful images
  • Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

  • Driver: SSD1351
  • Interface: 4-wire SPI, 3-wire SPI
  • Display color: RGB, 65K colors
  • Resolution: 128x128
  • Viewing angle: >160°
  • Operating voltage: 3.3V / 5V
  • Dimension: 44.5 x 37 (mm)

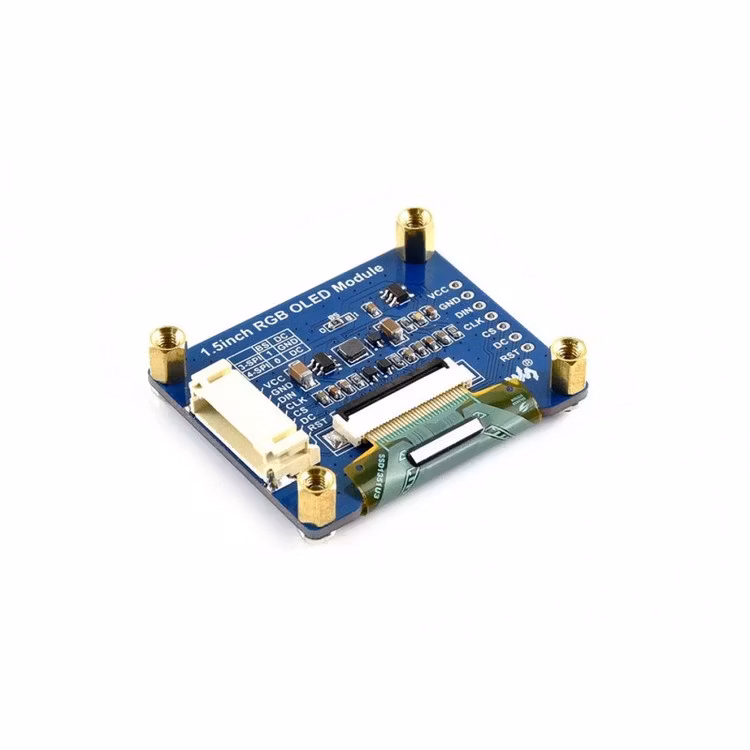

Interface

SYMBOLDESCRIPTION
VCCPower (3.3~5V input)
GNDGround
DINData input
CLKClock data input
CSChip selection, low active
DC4-wire SPI: Data/Command selection (high for data, low for command)
3-wire SPI: Connects to GND, keeps low
RSTReset, low active

There are two available drive interfaces for this RGB OLED module: 4-wire SPI (default) and 3-wire SPI:

 BSDC
4-wire SPI0DC
3-wire SPI1Connects to GND


Development Resources

Wiki : www.waveshare.com/wiki/1.5inch_RGB_OLED_Module
