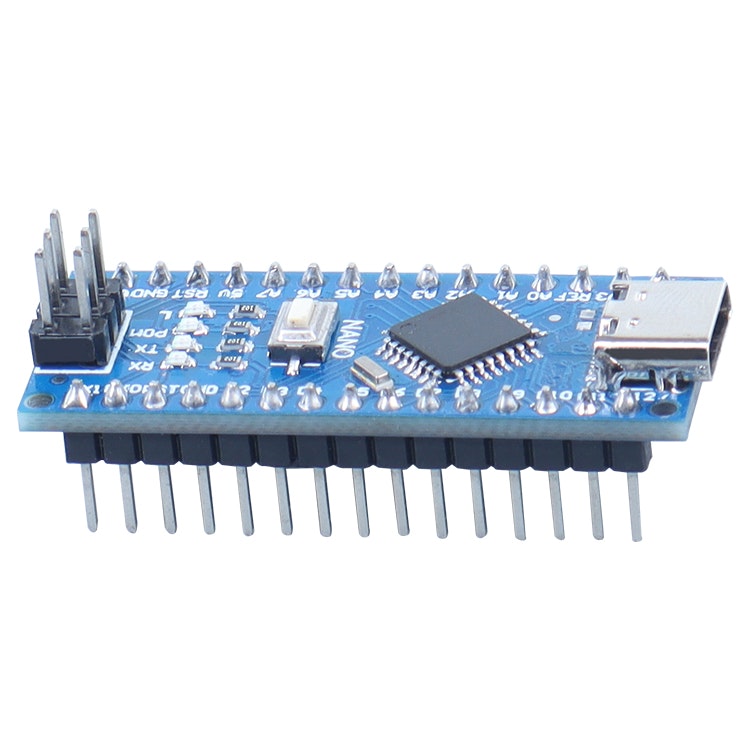

NANO V3 CH340 ATMEGA328 with USB Type-C

  • 99 kr

Type C USB NANO V3.0 compatible with Arduino.Description:This Nano with a USB-C connector. It uses a CH340 USB-serial chip for programming. The type-c usb

I lager.
Lagersaldo: 3
Artikelnummer: 940
Dela

Type C USB NANO V3.0 compatible with Arduino.

Description:

This Nano with a USB-C connector. It uses a CH340 USB-serial chip for programming.

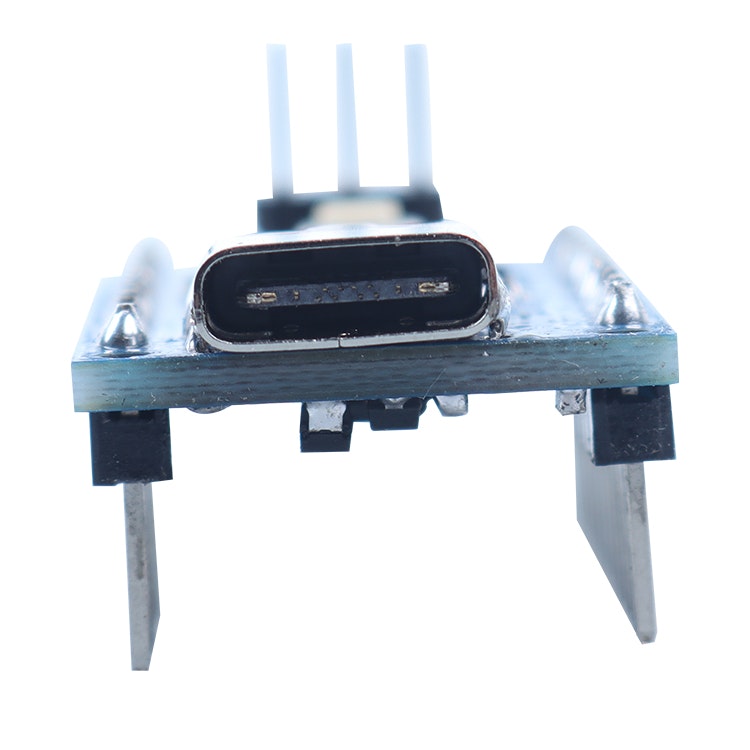

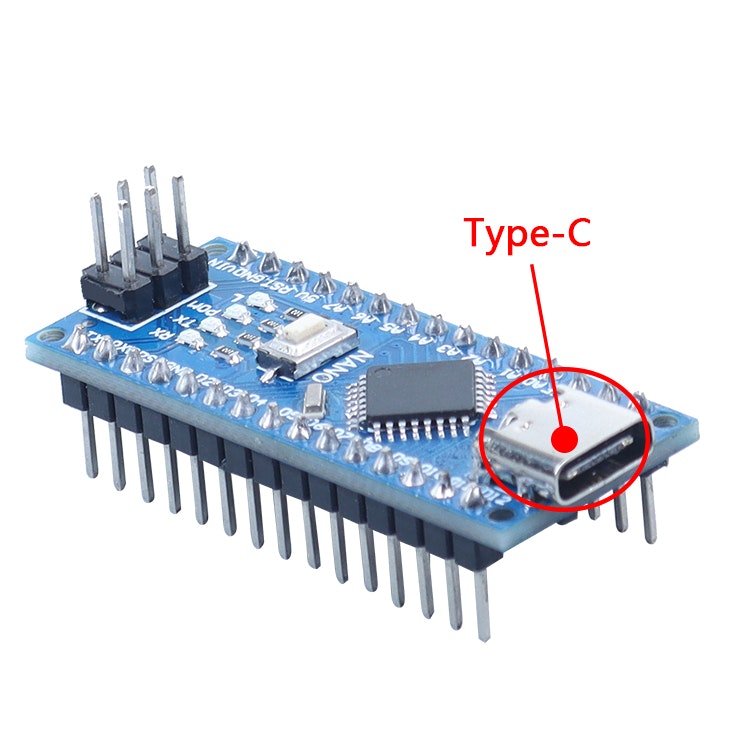

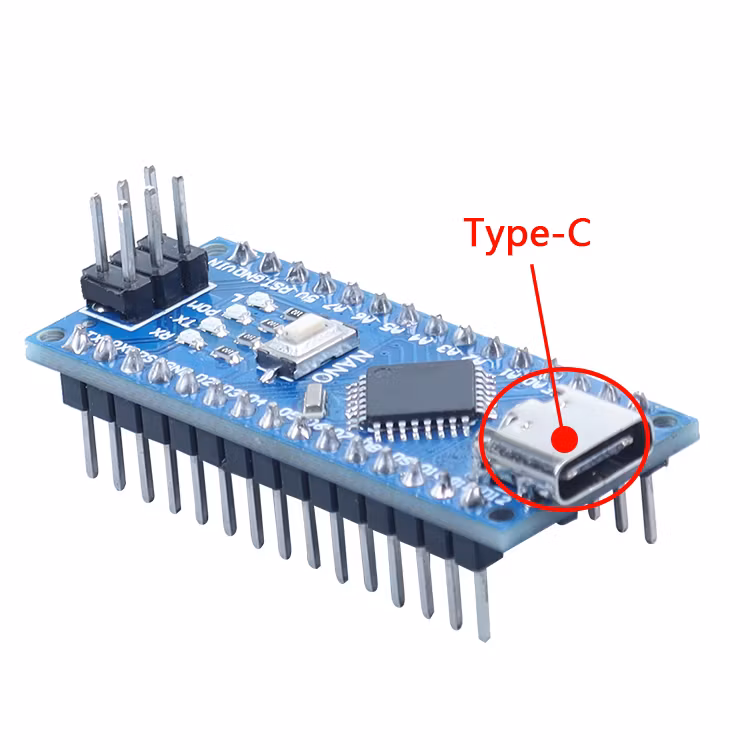

The type-c usb is more convenient to use and small in size.

It has exactly the same pins as the common Nano board.

The microprocessor is ATmega328 (Nano3.0).With Type-c USB interface, it also has 14 digital input/output ports (6 of which can be used as PWM output), 8 analog inputs, a 16MHz crystal oscillator, an ICSP header and a reset button.Power supply:Type-c USB interface power supply and external vin connection 7~12V external DC power supply.Memory:ATmega328 includes on-chip 32KB Flash, of which 2KB is used for Bootloader. There are also 2KB SRAM and 1KB EEPROM.

Processor: ATmega328
Working voltage: 5V
Input voltage (recommended): 7-12V
Input voltage (range): 6-20V
Digital IO pins: 14 (6 of which are used as PWM outputs) (D0~D13)
Analog input pins: 6 (A0~A5)
IO pin DC current: 40mA
Flash Memory: 32KB (of which 2KB is used for bootloader)
SRAM: 2KB
EEPROM: 1KB (ATmega328)
USB to serial chip: CH340
Working clock: 16 MHZ

Package list

1x NANO Board (without cable)
Standard Anti-static Poly Bag
Type C cable

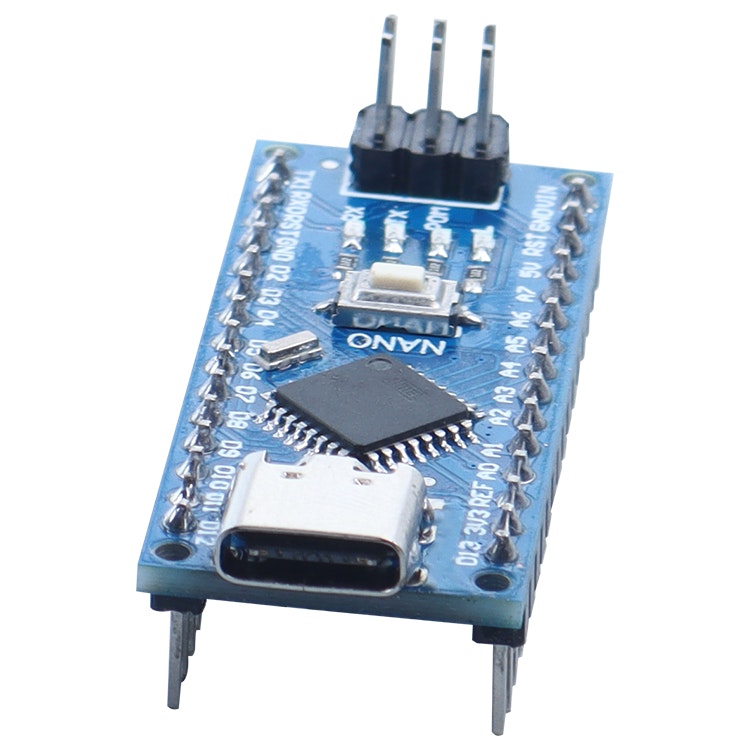

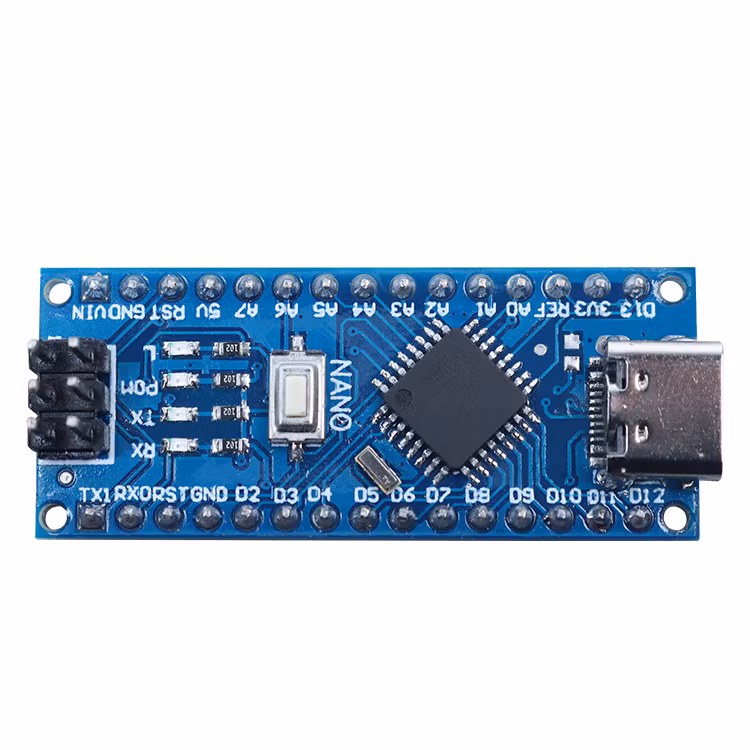

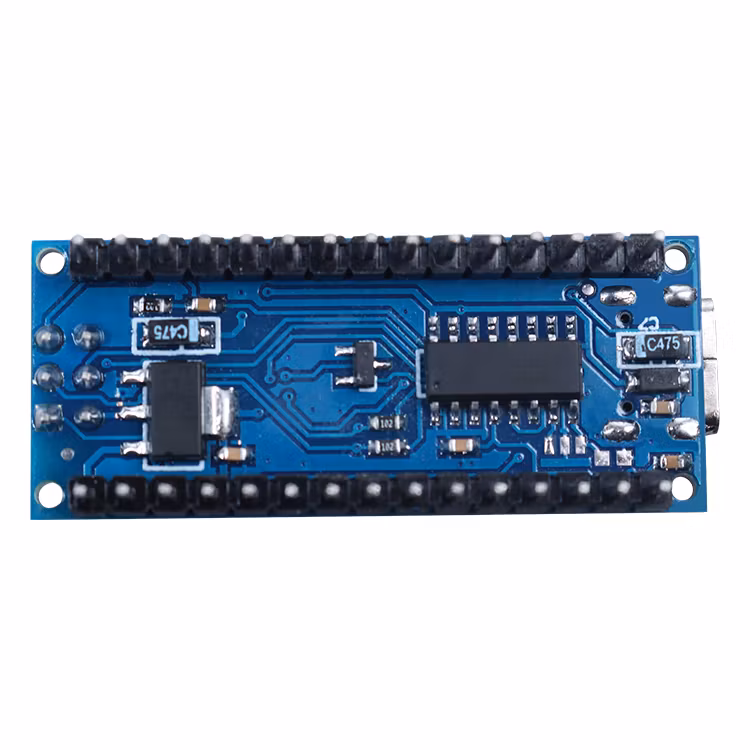

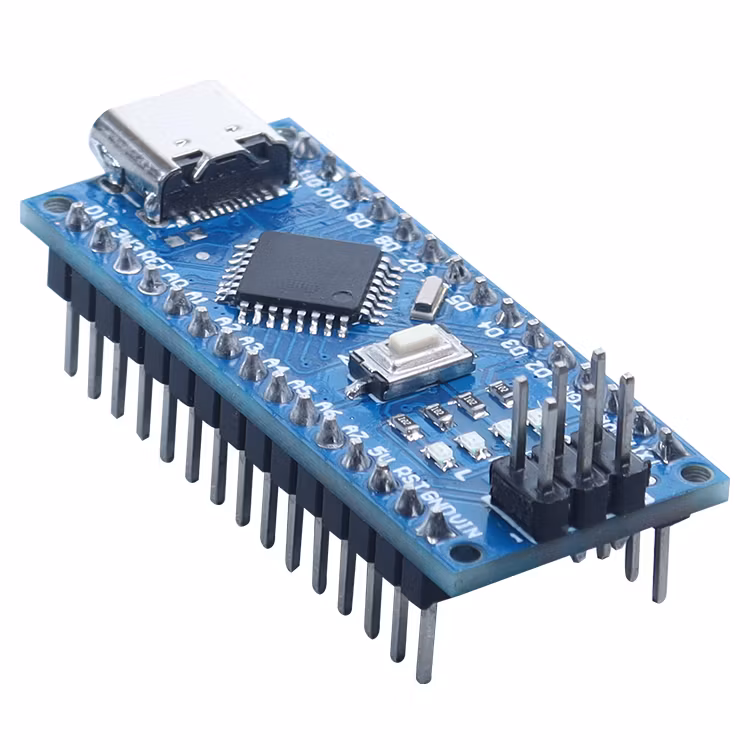

Details Images
