XIAO RP2040 is a microcontroller using the Raspberry RP2040 chip. It runs at up to 133MHz, is built with rich interfaces in a tiny thumb size, and fully supports Ardunio, MicroPython, and CircuitPython. The onboard interfaces are enough for developing multiple applications.
XIAO RP2040 is a microcontroller using the Raspberry RP2040 chip. It runs at up to 133MHz, is built with rich interfaces in a tiny thumb size, and fully supports Arduino, MicroPython, and CircuitPython. The onboard interfaces are enough for developing multiple applications.
XIAO RP2040 is a development board of the Seeeduino XIAO series. Like the Seeeduino XIAO, it is a compact board with a wide range of interfaces. The XIAO RP2040 is equipped with the Raspberry RP2040 chip (Dual-core ARM® Cortex® M0+ @133MHz). Powerful performance and low power, ideal for various wearable and small projects.
Powerful MCU: Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
Rich on-chip resources: 264KB of SRAM, and 2MB of onboard Flash memory
Flexible compatibility: Support Micropython/Arduino/CircuitPython
Easy project operation: Breadboard-friendly & SMD design, no components on the back
Small size: As small as a thumb(20x17.5mm) for wearable devices and small projects
Multiple interfaces: 11 digital pins, 4 analog pins, 11 PWM Pins,1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface
Broad compatibility: Pins compatible with Seeeduino XIAO and supports Seeeduino XIAO's Expansion board
In addition to the powerful CPU, the XIAO RP2040 has 2MB of Flash on board. 11 digital pins, 4 analog pins, 11 PWM Pins,1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface. Some PINs have various functions, Moreover, XIAO RP2040 supports the USB Type-C interface which can supply power and download code. 1 Reset button, 1 BOOT button, 1 user-programmable RGB LED, 1 power LED, 2 status indicators, and 1 user LED are on board, allowing developers to debug their code very easily.
The XIAO RP2040 is very compact because all electronic components are soldered on the same board surface, which means you can easily solder the XIAO RP2040 to your own PCB. XIAO RP2040 is pin-compatible with Seeeduino XIAO, so XIAO RP2040 can be learned and developed using the Expansion board of Seeeduino XIAO.
The XIAO RP2040 fully supports C/C++ and MicroPython because it uses the same chip (RP2040) as the Seeed RP2040 Microcontroller family.
You can also use the Thonny editor to program as if you were using Raspberry Pi Pico
Hey community, we've set up a #tinyml channel on our Discord server, please click to join for 24/7/365 making, sharing, discussing and helping each other out.
All the I/O pins are 3.3V, please do not input more than 3.3V, otherwise, the CPU may be damaged.
CPU: Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
Storage: 264KB of SRAM, and 2MB of on-board Flash memory
I/O PINs: 11 digital pins, 4 analog pins, 11 PWM Pins
Interface: 1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface
Power supply and downloading interface: USB Type-C interface
LEDs: 1 user LED, 1 power LED, two LEDs for serial port downloading, 1 RGB LED
button: 1 RESET button, 1 BOOT button
Power Pads: For the battery power supply
Software compatibility: Support Micropython/Arduino/CircuitPython
Projection cover for protecting the circuit

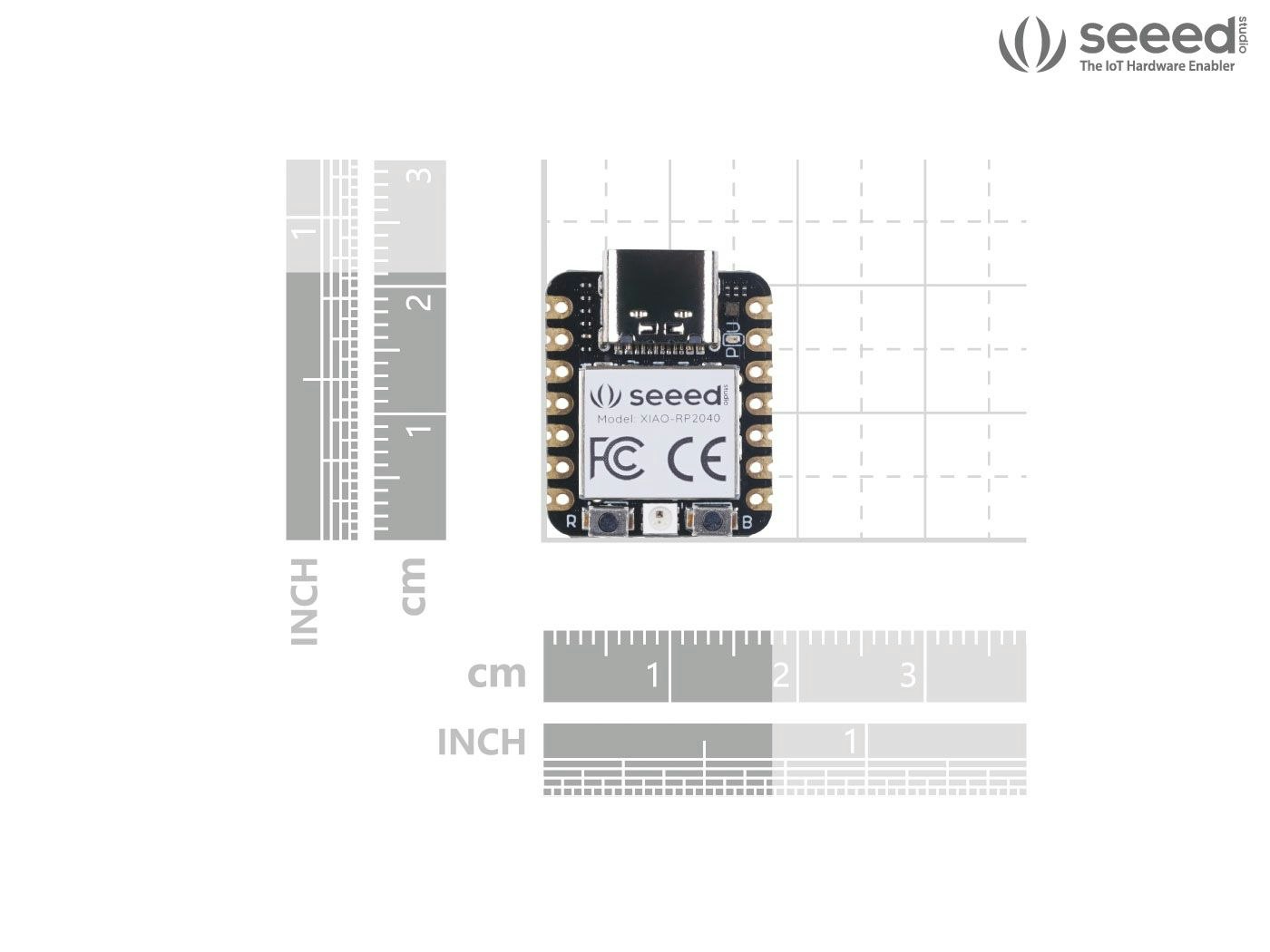

Dimensions: 20x17.5x3.5 mm
Rapid prototyping (directly attached to the expanded PCB as a minimal system)
Perfect for all the projects need mini Arduino
USB development (USB to multi-channel TTL/USB host mode, etc.)
Comparison between Seeeduino XIAO and XIAO RP2040
Dual-core ARM® Cortex® M0+ @133MHz
ARM® Cortex®-M0+ @48MHz
Reset Button/ Boot Button
No Button(reset pad)
Full Color RGB LED
1 x XIAO RP2040 Microcontroller
2 x 7pins header
LEARN AND DOCUMENTS
This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.
Here are some Features of Raspberry Pi RP2040 chip,RP2040-based Boards, Accessories and Projects from the community, including how to build your own RP2040 PCB Board.
