e-Paper Raw shield kit, kompatibel med Arduino

  • 249 kr

Universal e-Paper Driver Shield for Arduino/NUCLEO, supports various Waveshare SPI e-Paper raw panelsOverviewThis is a universal driver board for connecting Ard

I lager.
Lagersaldo: 10
Artikelnummer: 66
Dela

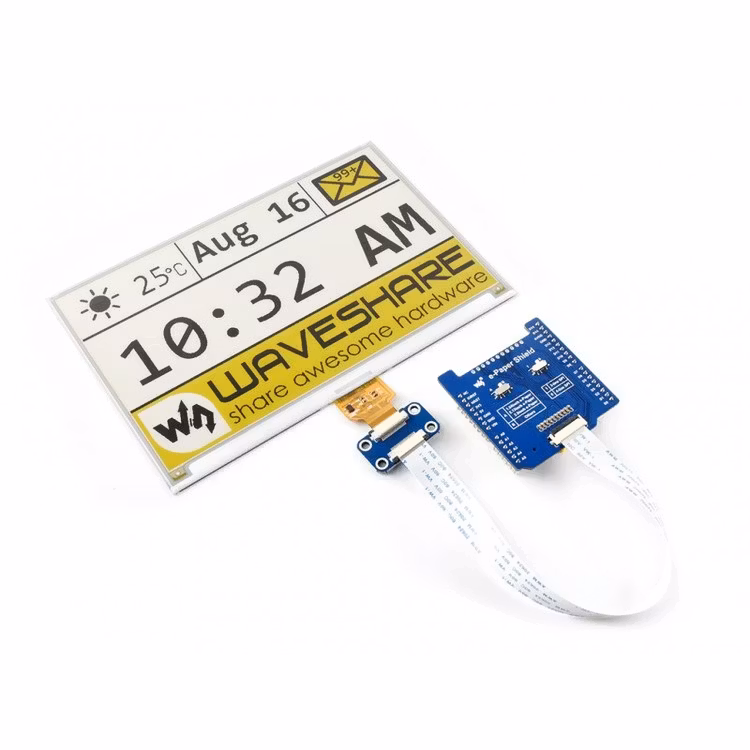

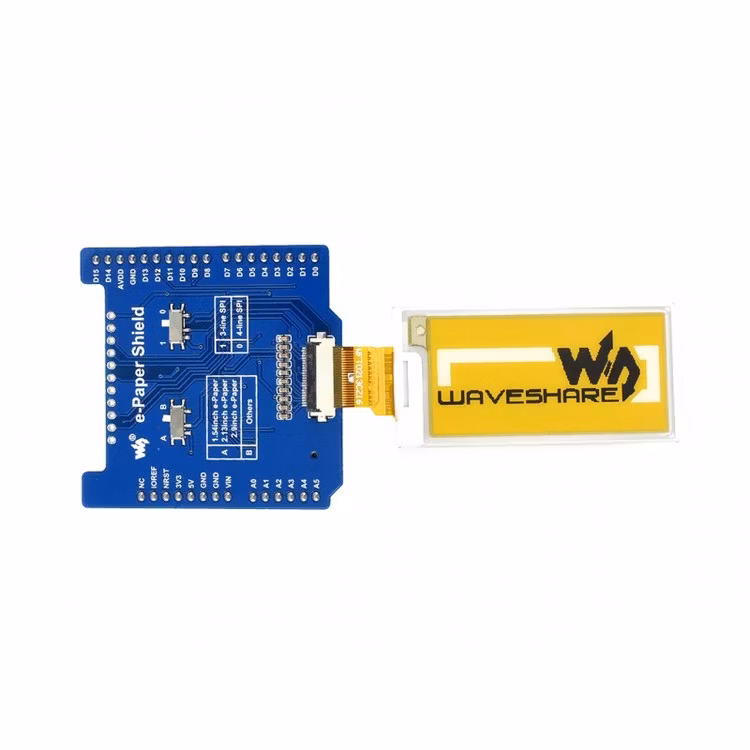

Universal e-Paper Driver Shield for Arduino/NUCLEO, supports various Waveshare SPI e-Paper raw panels

Overview

This is a universal driver board for connecting Arduino/NUCLEO and e-Paper raw panels can be used to drive various SPI interface e-Paper from Waveshare.

Features

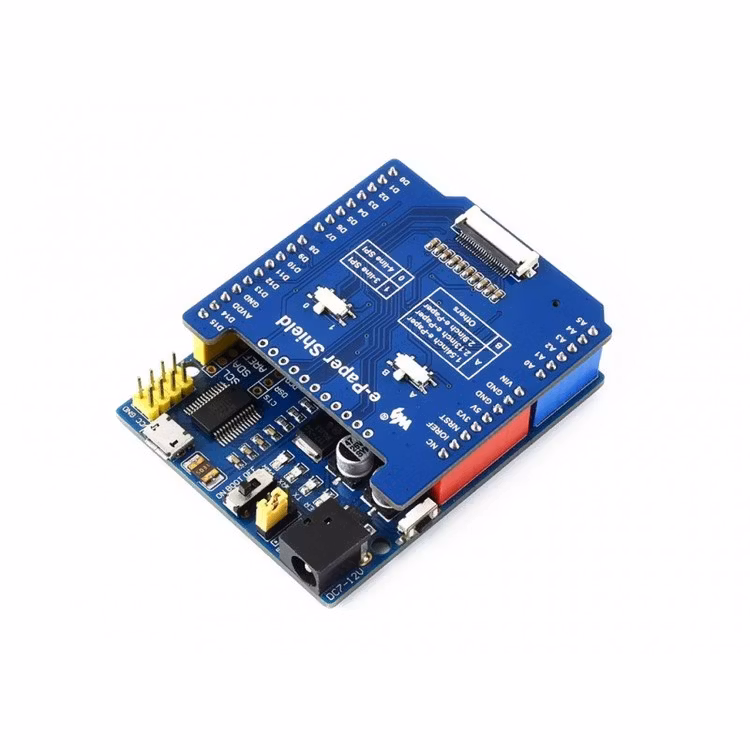

  • Standard Arduino connectivity, compatible with host boards like UNO, Leonardo, NUCLEO, XNUCLEO
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Onboard external RAM, more available space
  • Micro SD slot, images can be stored on TF card for displaying
  • Reserved control interface, for connecting with other control boards/li>
  • Comes with development resources and manual (examples for Arduino/STM32)

Specifications

  • Operating voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI (default)
  • Outline dimension: 53.34mm × 53.34mm

Interface

PIN
ARDUINO/NUCLEO PIN
DESCRIPTION
VCC
5V
Power
GND
GND
Ground
SCK
SCK
SPI clock input
MOSI
MOSI
SPI data input
MISO
MISO
SPI data output
EPD_CS
D10
e-Paper chip selection
EPD_DC
D9
e-Paper data/command
EPD_RST
D8
e-Paper reset
EPD_BUSY
D7
e-Paper busy
SD_CS
D6
SD card chip selection
SPIRAM_CS
D5
SPI RAM chip selection

Dimensions

e-Paper Shield dimensions

Development Resources

Wiki : www.waveshare.com/wiki/e-Paper_Shield


Shipping list

Weight: 0.017 kg

Note: e-Paper and Raspberry Pi are NOT included.

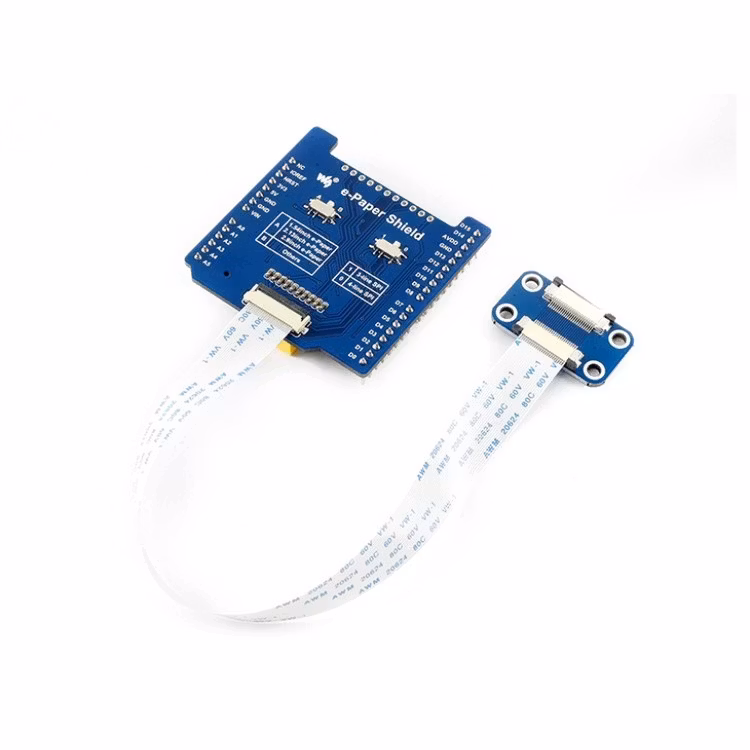

  1. e-Paper Shield x1
  2. e-Paper Adapter x1
  3. 24PIN FFC x1

1+2+3
