micro IoT (V1.0) - micro:bit IoT Expansion Board

  • 649 kr

With the development of IoT, there are so many mature IoT platforms emerging in both domestic and overseas, but most of them are mainly designed for the profess

I lager.
Artikelnummer: 542
Dela
  • Information

With the development of IoT, there are so many mature IoT platforms emerging in both domestic and overseas, but most of them are mainly designed for the professional, which could be very hard for the non-experts to get started. Therefore, we specifically developed this Micro: IoT, a micro:bit-based IoT expansion board. Use the board together with DFRobot Easy IoT platform, lower the barrier of using IoT.

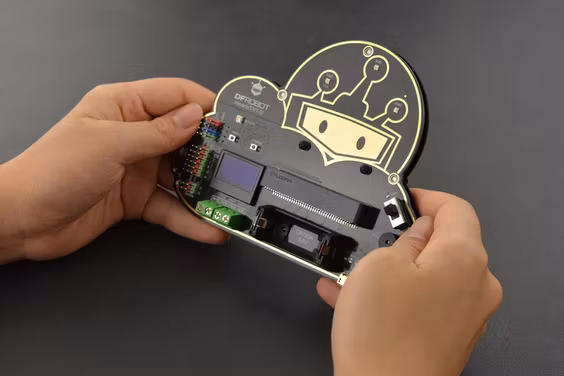

This micro: IoT board is pretty cute and delicate, on which we integrated Wi-Fi, OLED, 2-way motor drive, 6-way IO port, 2-way IIC, 1-way serial port, 1-way buzzer, 3-way RGB, 2-way servo, Li-ion battery holder, charging circuit, emergency power interface etc. So many resources for you to programme! Even without complicated background knowledge, you can build you IoT applications in few steps!

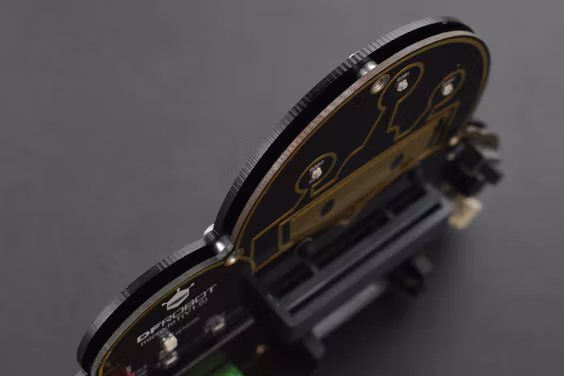

We designed the board as cloud shape to make it more suitable for the theme of IoT. As for power supply, we selected CR123A 3.6V lithium rechargeable battery. This kind of battery features small size, high capacity and high safety. What’s more, we add short circuit and reverse connection protection for the product to further improve the safety in using Li-ion Battery.

FEATURES

  • Cute and delicate appearance.

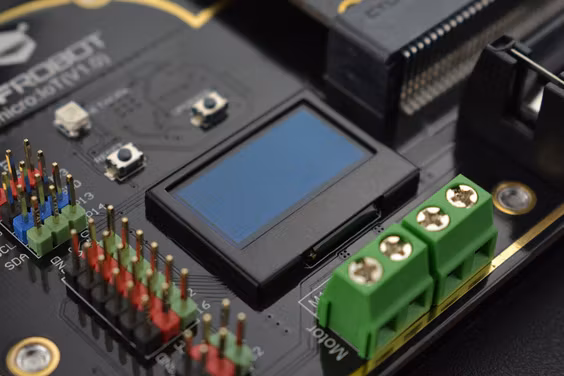

  • Integrated Wi-Fi IoT module, OLED screen, easy to update data.
  • 2-way motor drive, 2-way servo, 6-way IO port, 3-way RGB LED, more options for programming.

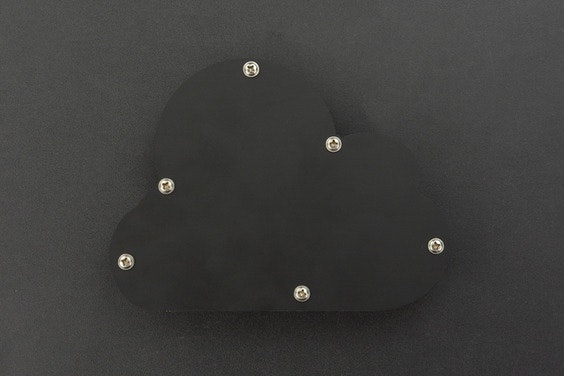

  • PMMA Packaging, prevent damage to the inside components.
  • Supports makecode, mind+, python etc.

SPECIFICATION

  • Power Supply: Li-ion battery or External power
  • STM8S IIC Address: 0×01
  • Battery Type: CR123A 3.6V Rechargeable Li-ion Battery (Note: do not use 3V CR123A battery and non-rechargeable. Recharging the non-rechargeable battery is dangerous.)
  • Digital Output Voltage: 0V/3.3V
  • Analog Input Voltage: 0~3.3V DC
  • Standard Gravity Pins
  • Micro:bit Pins: P0 P1 P2 P8 P12 P16

                                   2-way Motor Drive

                                   2-way Servo Pins

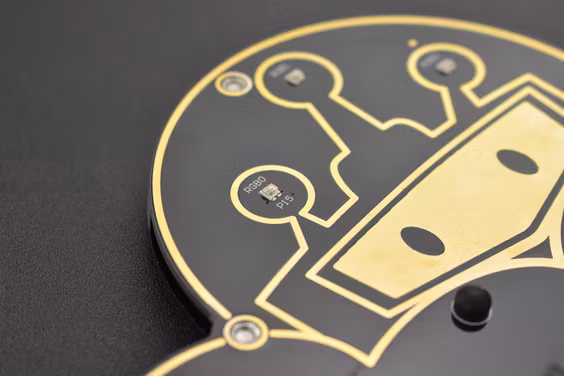

                                   On-board 3-way RGB LED

                                   On-board buzzer and Switch

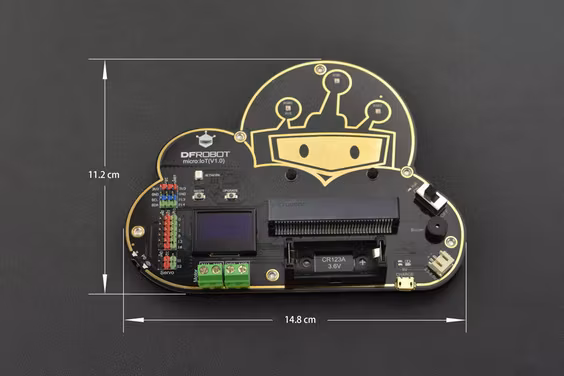

  • Dimension: 148×112mm/5.83×4.41”
  • Mount Hole: M3 Screw hole

DOCUMENTS

SHIPPING LIST

  • micro: IoT x1
