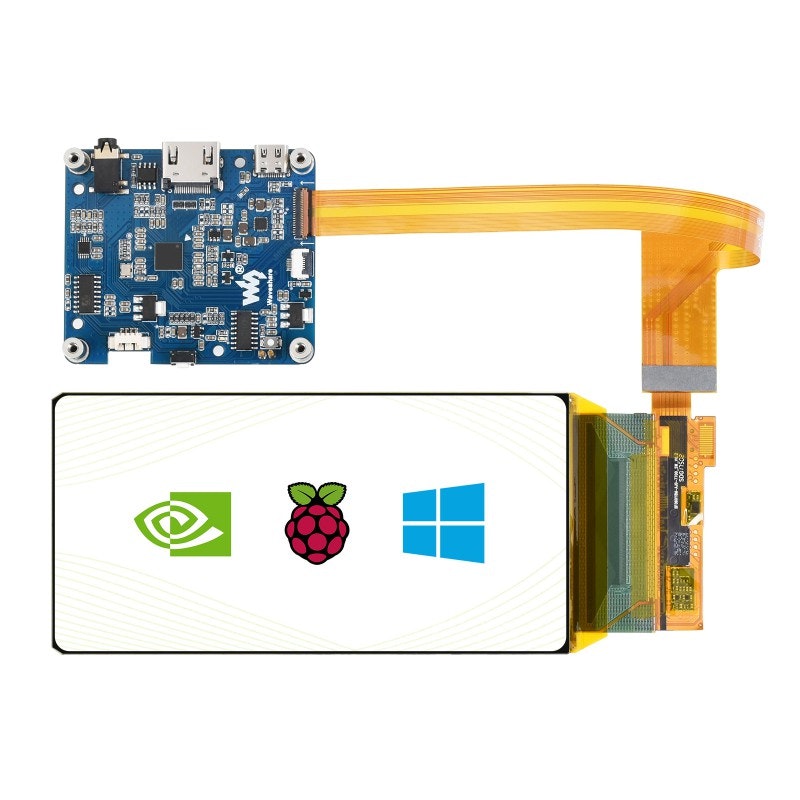

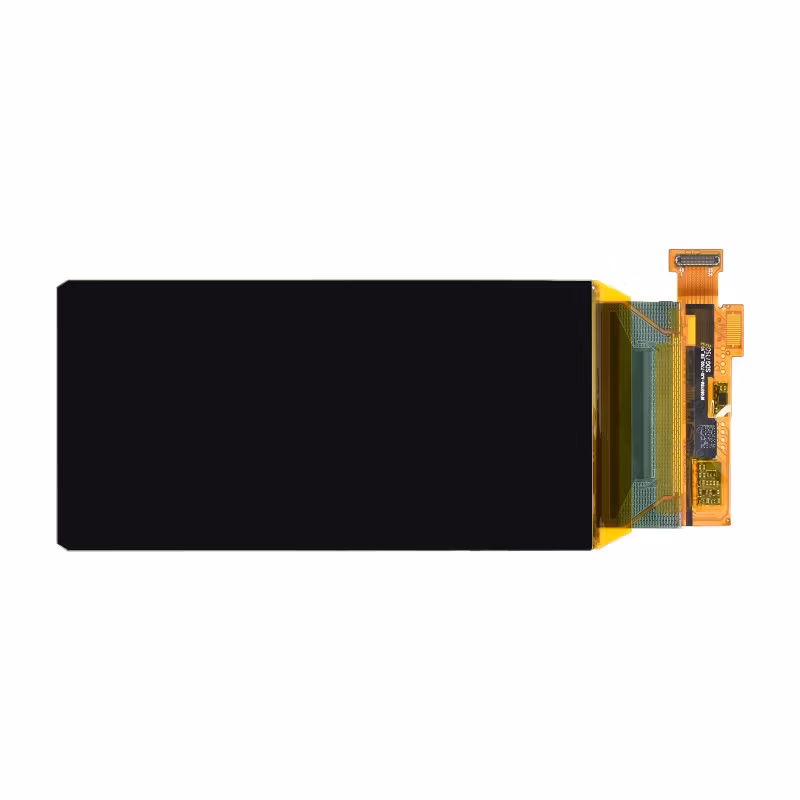

6inch Flexible AMOLED, HDMI, 1080×2160, Rounded Corners

  • 1 399 kr

6inch Flexible AMOLED, HDMI Port, 1080×2160 Resolution, Rounded Corners6″ Flexible AMOLEDSize 6″Resolution 1080×2160Display Panel AMOLEDPanel Feature Flexible P

Produkten är tyvärr slut i lager. :(

Artikelnummer: 1100
Dela

6inch Flexible AMOLED, HDMI Port, 1080×2160 Resolution, Rounded Corners

6″ Flexible AMOLED

Size 6″

Resolution 1080×2160

Display Panel AMOLED

Panel Feature Flexible Panel

Viewing Angle 160°

Display Port HDMI

Audio Output 1 3.5mm Jack

Audio Output 2 4PIN Header

The display orientation is portrait by default, 1080×2160 resolution (H×V). Change the software config for landscape display.

Device & System Support



Raspberry Pi

Supports Raspberry Pi OS / Ubuntu / Kali / WIN10 IoT / Retropie, driver free

Supports all versions of Raspberry Pi



Jetson Nano

Supports Ubuntu

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7

Connection Examples

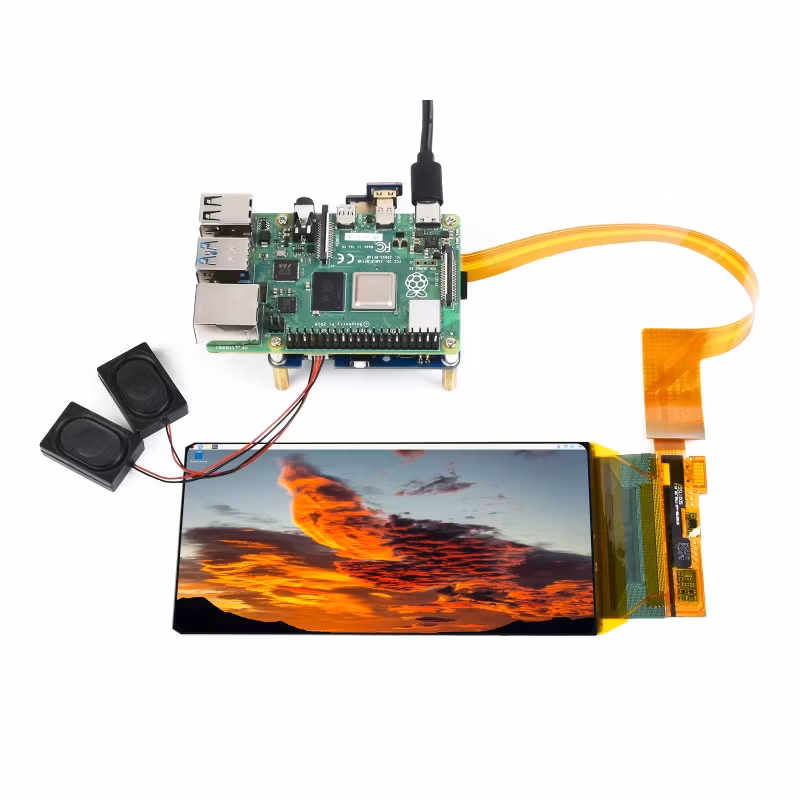

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With AI Computer Jetson Nano

Working With Mini PC

Rendering The Real Sight

100% Adobe RGB, 100% DCI-P3 Color Gamut,
Rendering More Colors, Bringing More Immersive Movie Experience

AMOLED Active Light-Emitting Screen

The Next-Generation Display Technology, 2.33M Active Light-Emitting Pixels

Compared to those traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image

High Contrast, No Detail Would Be Lost

Striking One-Hundred-Thousand Grade Contrast Radio

Compared to normal LCD displays, the AMOLED screen features ultra high contrast radio, which means hundredfold light/dark performance. Even when representing gradations and details like the deep starry sky, it is able to bring you immersive experience easily.

Virtually 0nit True Black

Brighter Highlight, Darker Shadow

The regular LCD requires backlight and color film to work, i.e. it represents colors by controlling the white light from backlight layer to pass through the color film, and generally there's so called light-leak issue.

Unlike LCD, the AMOLED features active emissive technology, each pixel on the AMOLED will light up by itself like a firefly, or turn off completely, to create brighter highlight or true black shadow, while retaining rich details.

As Thin As A Cicada's Wings

Thinner Than 1mm Display, Slim Like A Paper

Design Features

Appearance And Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/6inch_HDMI_AMOLED

Shipping list

Weight: 0.159 kg

  1. 6inch HDMI AMOLED x1
  2. Speaker x1
  3. HDMI flat cable ~1m x1
  4. USB-A to USB-C cable ~1m x1
  5. HDMI Adapter (C) x1
  6. HDMI Adapter (B) x1
  7. Screws pack x1
