Digital Capacitive Touch Sensor
This arduino digital capacitive touch sensor provides a one-touch style switch on your Arduino project. It uses the most popular capactiive sensing technology which is the same as your mobile phone.
Getting tired with clicking mechanic button? Try this capacitive touch sensor. Right now we can find touch sensor on most electronic device. So upgrade your Arduino project with our new version touch sensor and make it cool!!
This little sensor can "feel" people and metal touch and feedback a high/low voltage level. Even isolated by cloth or paper, it still can feel the touch. The sensitivity will decrease as the isolation getting thick. For detail of usage, please check it's wiki.

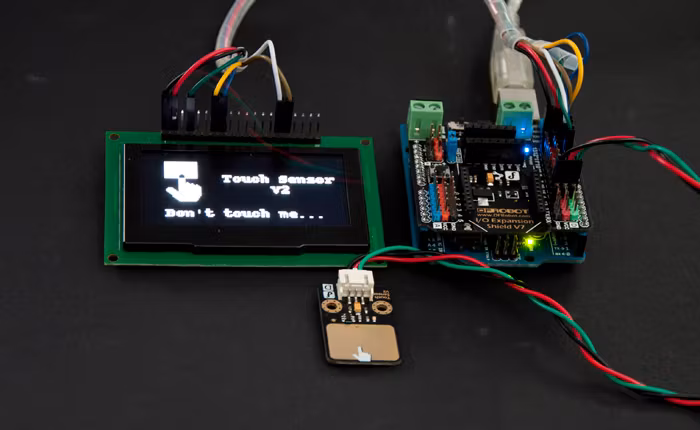

With this interactive sensor Arduino can feel your touch
To ease the difficulty, a Gravity Interface is adapted to allow plug&play. The IO expansion shield is the best match to connect this sensor with your Arduino. As this sensor can work at 3.3V which make it compatible with Raspberry Pi, intel edison, joule and curie.
- Wide voltage range from 3.3V to 5V
- Standard assembling structure (two 3mm holes with multiple of 5cm as interval)
- Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
- Icons to simplely illustrate sensor function
- High quality connector
- Immersion gold surface
- Supply Voltage: 3.3V to 5V
- Interface: Digital
- Size:22x30mm (0.87 x 1.18 in)

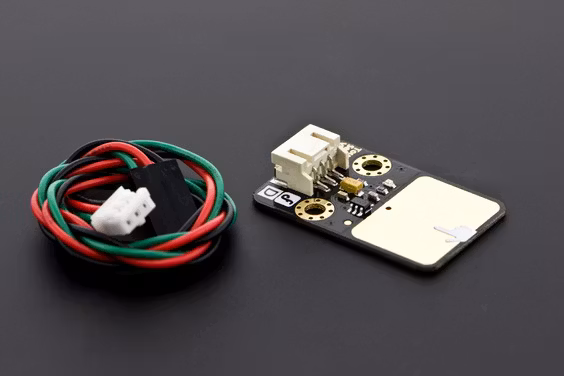

- Capacitive Touch Sensor x1
- Digital cable x1
