LOLIN D1 Mini V4.0.0

I lager.
Antal: 8

135 kr

Artikelnummer: 1051

New product

LOLIN D1 Mini V4.0.0 - WEMOS WIFI Internet of Things Board based ESP8266 4MB MicroPython Nodemcu Arduino Compatible.

What's new about V4.0.0

  • Optimize the circuit
  • Add LOLIN I2C PORT
  • TYPE-C USB port

Features

  • 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)
  • 1 analog input(3.2V max input)

  • Type-C USB Port

  • LOLIN I2C Port

  • Compatible with MicroPythonArduino, Nodemcu

  • lots of Shields

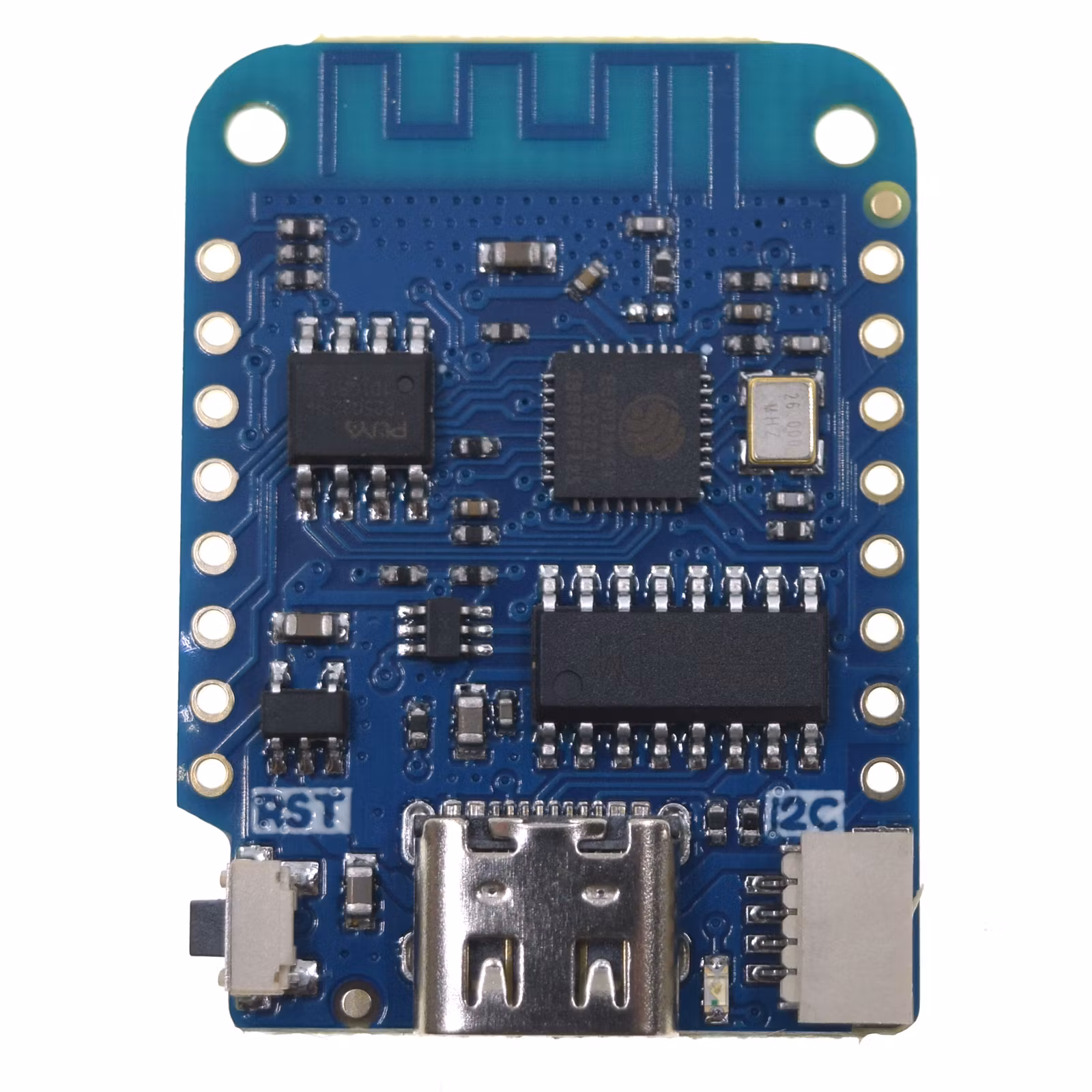

TOP


Bottom

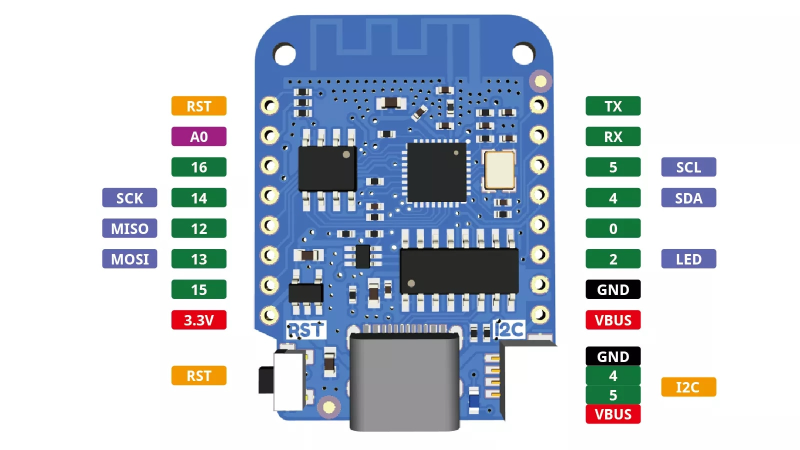

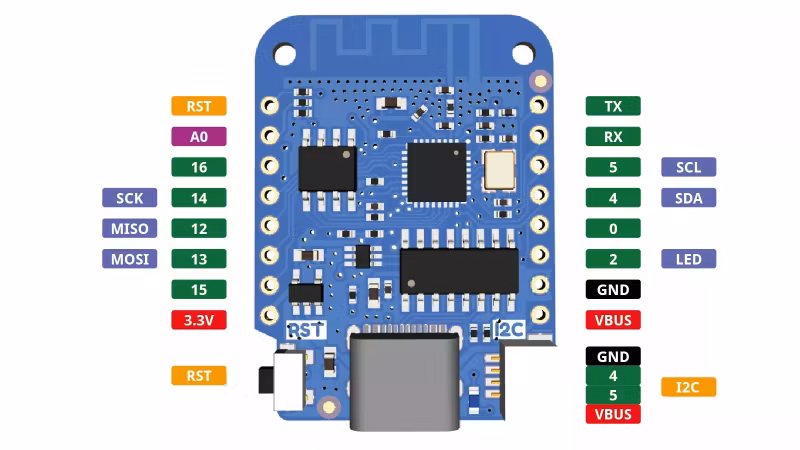

Pins

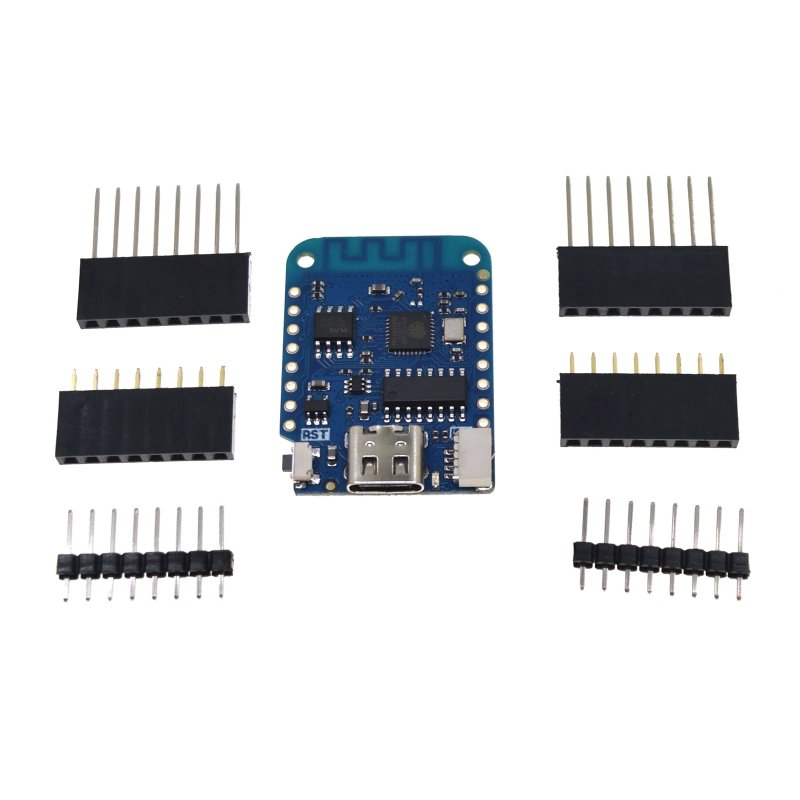

Shipping List



1.Long femalepinsx2pcs

2.Short female pins x2pcs

3.Normal pins x2pcs

4.LOLIN D1 mini x1pcs


Tutorials

Documentation

Technical specs

Operating Voltage3.3V
Digital I/O Pins11
Analog Input Pins1(3.2V Max)
Clock Speed80/160MHz
Flash4M Bytes
Size34.2*25.6mm
Weight3g
