Solar Power Manager, Embedded 10000mAh Li-Po Battery, Supports 6V~24V Solar Panels

I lager.

375 kr

Artikelnummer: 997

Leverans V 20-21

Solar Power Manager (B), Embedded 10000mAh Rechargeable Li-Po Battery, Multi Protection Circuits

SOLAR POWER MANAGER

Compatible with 6V~24V solar panels, embedded 10000mAh Li-po battery

Recharged From Solar Panel, Or TYPE-C Power Adapter
5V/3A Regulated Output

Product Features

The Solar Power Manager (B) is compatible with general 6V~24V solar panels. It can recharge the 3.7V rechargeable Li-po battery through solar panel or USB TYPE-C connection, and provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP).

The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep operating with high-efficiency, stability, and safety. It is suitable for solar powered, low-power IoT, and other environmental protection projects.

  • Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
  • Flexible battery recharging: from solar panel or USB TYPE-C power adapter
  • Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input
  • Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency
  • Onboard aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
  • PH2.0 battery connector, with embedded 10000mAh 3.7V rechargeable Li-po battery
  • Several LED indicators, for monitoring the status of solar panel and battery
  • Multi protection circuits: over charge / over discharge / reverse-proof / over heat / over current, stable and safe to use

Specifications

 SOLAR POWER MANAGERSOLAR POWER MANAGER (B)
SOLAR IN6V ~ 24V6V ~ 24V (18V by default)
RECHARGINGSolar panel, power adapter, USB
BATTERY3.7V 850mAh 14500 Li-ion battery (NOT included)3.7V 10000mAh Li-po battery
USB INPUT5V (Micro USB)5V (TYPE-C, with PD quick charge support)
5V OUTPUT5V / 1A (USB OUT, pin header)5V / 3A (USB-OUT, TYPE-C)
RECHARGING CUTOFF VOLTAGE4.2V ± 1%
OVER DISCHARGING PROTECTION VOLTAGE2.9V ± 1%
SOLAR PANEL RECHARGING EFFICIENCY~78%
USB RECHARGING EFFICIENCY~82%~93%
BATTERIES BOOST OUTPUT EFFICIENCY~86%~92%
QUIESCENT CURRENT (MAX)<2mA
CASEN/AMetal case
OPERATING TEMPERATURE-40℃ ~ 85℃
DIMENSIONS65.2 × 56.2 × 22.9mm108.0 × 71.0 × 25.2mm

Supports 6V~24V Solar Panels

5-Level Voltage Switch, For Setting Solar Panel Input Voltage To Improve Efficiency

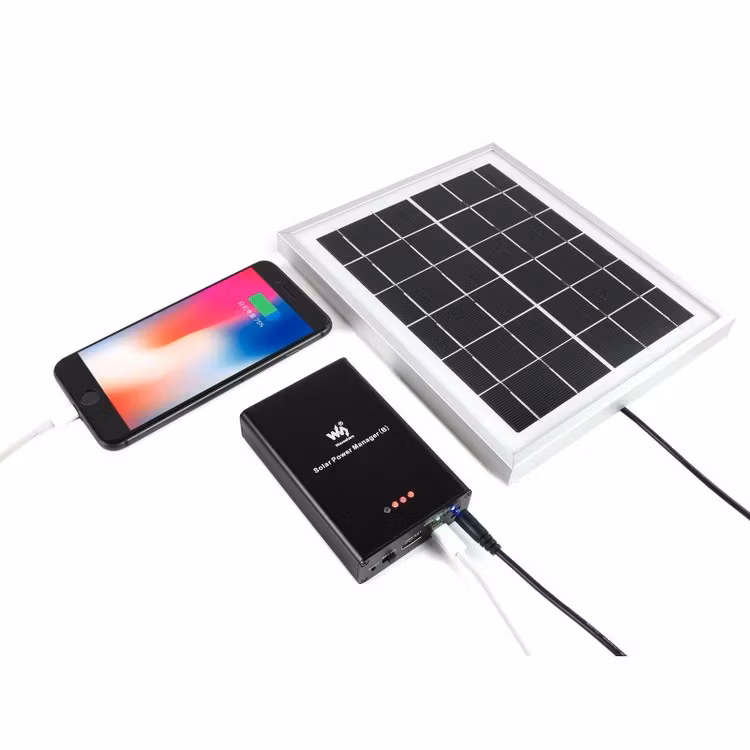

Application Example

Solar-Powered Control System For MCUs / Development Boards Like:
Raspberry Pi / Jetson Nano / Arduino...

for reference ONLY, the Raspberry Pi, display, solar panel are NOT included.

More Possibilities

Suitable For Mini Solar Road Lamp, Intelligent Agriculture, Or IoT Applications

Resources Introduction

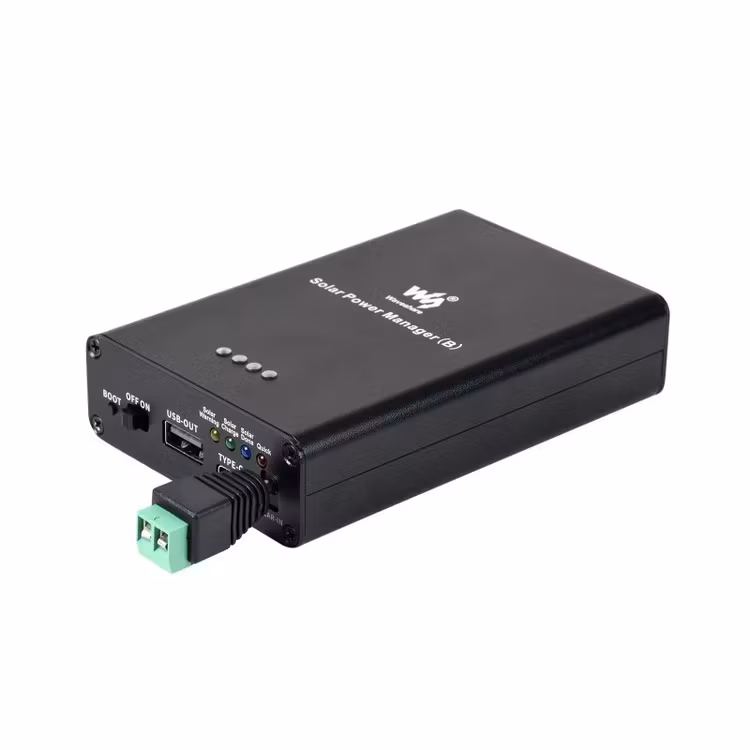

  1. Solar panel input
    recharging through DC-002 jack or screw terminal
  2. TYPE-C recharging/output port
    supports 5V power adapter for recharging
    supports PD protocol quick charge adapter
    supports PD/QC/FCP/PE/SFCP multi protocols output
  3. USB output port
    5V/3A regulated output
    supports PD/QC/FCP/PE/SFCP multi protocols output

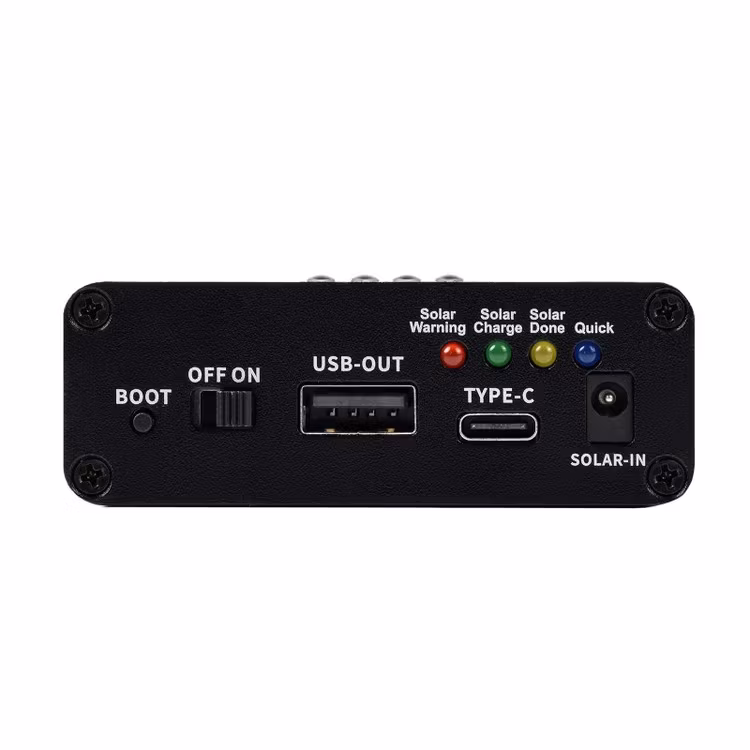

  1. Battery on/off switch
  2. BOOT button
  3. Quick charge indicator
  4. Solar panel status indicators
    Solar Warning: lights up if solar panel is reversed
    Solar Charge: lights up when recharging from solar panel
    Solar Done: lights up when the battery is fully recharged
  5. Battery life indicators

Outline Dimensions

Resources & Services

Wiki: Solar_Power_Manager_(B)

Shipping list

Weight: 0.29 kg

  1. Solar Power Manager (B) x1
  2. Adapter x1
