ReSpeaker Mic Array v2.0 Speech Recognition,Alexa

899 kr

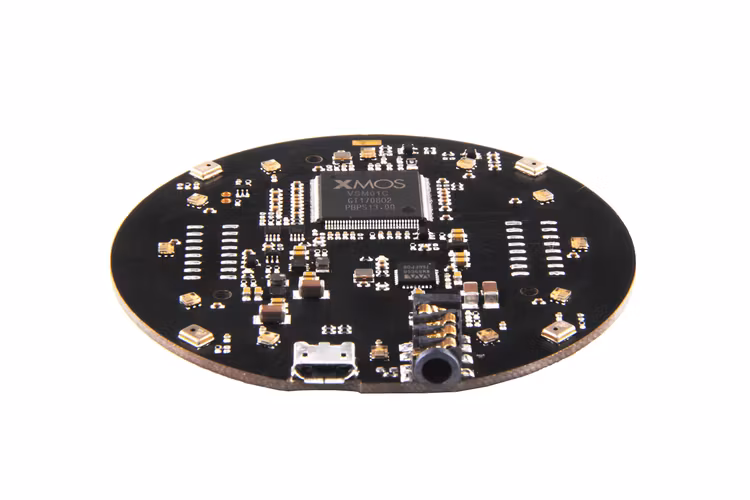

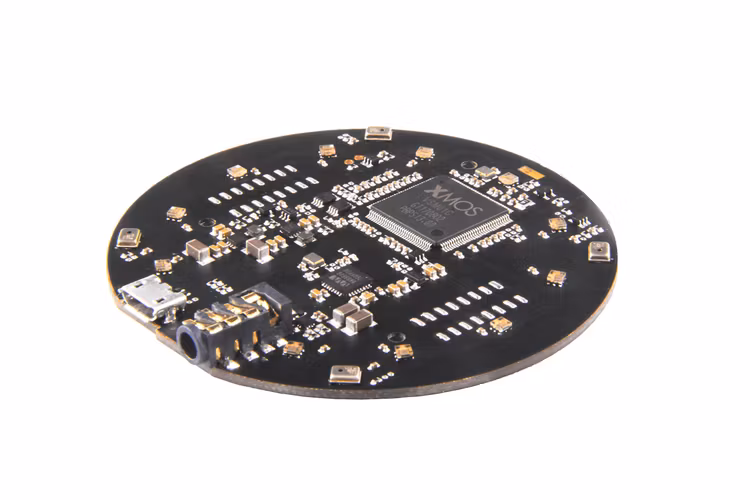

The ReSpeaker Mic Array v2.0 is a hardware-based solution for creating or adding voice-interface to your projects. The board is a far-field microphone array device capable of detecting voices up to 5m away even with the presence of background noise. The onboard hardware-enabled algorithms are powered by the XMOS XVF-3000.

Several improvements have been made since the original ReSpeaker Mic Array v1.0. The first thing you may notice is the reduction of microphones. With the improved performance of the XMOS XVF-3000, including the improved full duplex AEC, we’ve been able to deliver increased performance with fewer microphones, and thus a lower cost.


Key feature

Pick Up Voices From Far Away


  • Far-field voice capture enables you to capture and understand requests from up to 5m away

Improved Voice Audio Quality

  • Reduces environmental voice echo with de-reverberation

  • Remove current audio output with AEC

Compatibility

When it comes to development we believe you should have as many options as possible. The ReSpeaker Mic Array v2.0 is able to work with most modern Linux, macOS, and Windows systems*.
*We do recommend Linux for firmware updates.

Document

We are working hard to ensure the setup is simple. The documentation on our wiki will help you get up and running quickly, and should unknown issues pop up our tech support team is ready to help. You can ask questions in our ReSpeaker forum, which is checked daily. You can also check out the GitHub for more support.

Technical specification

  •  XVF-3000 from XMOS
  • 4 High Performance Digital Microphones
  • Supports Far-field Voice Capture
  • Speech Algorithms On-Chip
  • 12 Programmable RGB LED Indicators
  • Microphones: ST MP34DT01TR-M
  • Sensitivity: -26 dBFS (Omnidirectional)
  • Acoustic Overload Point: 120 dBSPL
  • SNR: 63 dB
  • Power Supply: 5V DC from Micro USB or Expansion Header
  • Dimensions: 70mm (Diameter)
  • 3.5mm Audio Jack Output Socket

Applications

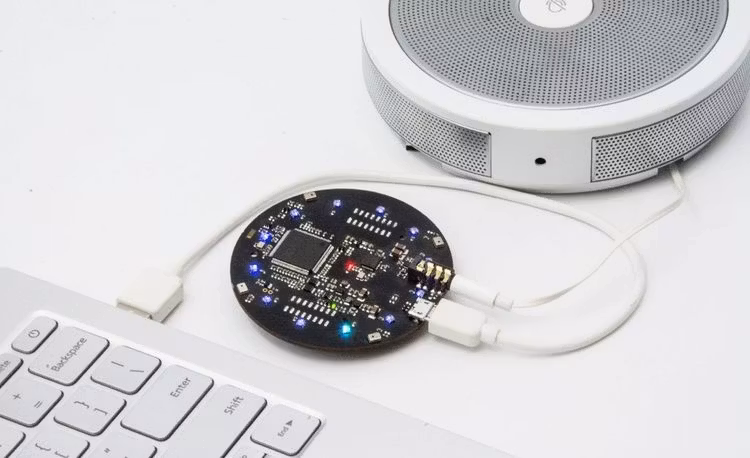

• USB Voice Capture

• Smart Speaker

• Intelligent Voice Assistant Systems

• Voice Recorders

• Voice Conferencing System

• Meeting Communicating Equipment

• Voice Interacting Robot

• Car Voice Assistant

• Other Voice Interface Scenarios

ReSpeaker Mic Array v2.0 - DOA & AEC Test


Learn

Wiki

Technical details

Dimensions70mm x70mm x13.3mm
WeightG.W 70g
BatteryExclude

Part List

ReSpeaker Mic Array v2.01

ECCN/HTS

ECCNEAR99
HSCODE8518900090
USHSCODE90230000
UPC841454120278
