TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 For Arduino

  • 299 kr

TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 For ArduinoChipsetAtmega328PFLASHQSPI flash/SRAM, up to 4 x 16 MBKEYresetPower indicator lampred

I lager.
Artikelnummer: 328
Dela
  • Information

TTGO T-Deer Pro Mini Lora V02 LoRa 433MHz/868MHz/915MHz Mega328 For Arduino

Chipset
Atmega328P
FLASH
QSPI flash/SRAM, up to 4 x 16 MB
KEY
reset
Power indicator lamp
red
lora
TTGO LORA 433M
on-board clock
16MHz crystal oscillator
working voltage
2.3V-3.6V
working current
about 8mA
working temperature range
-40℃ ~ +85℃
size

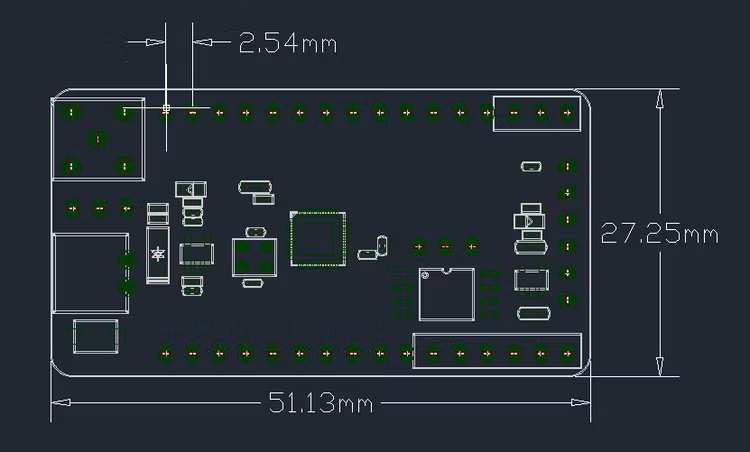

51.13mm*27.25mm*12.29mm
Power Supply Specifications
　
Power Supply
USB 5V/1A
charging current
500mA
battery
3.7V lithium battery


Shipping List

433MHz Shipping LIst


Are you interested in 868 Mhz or 915 Mhz contact us.

Shipping List

868MHz Shipping LIst

or

Shipping List

915MHz Shipping LIst
