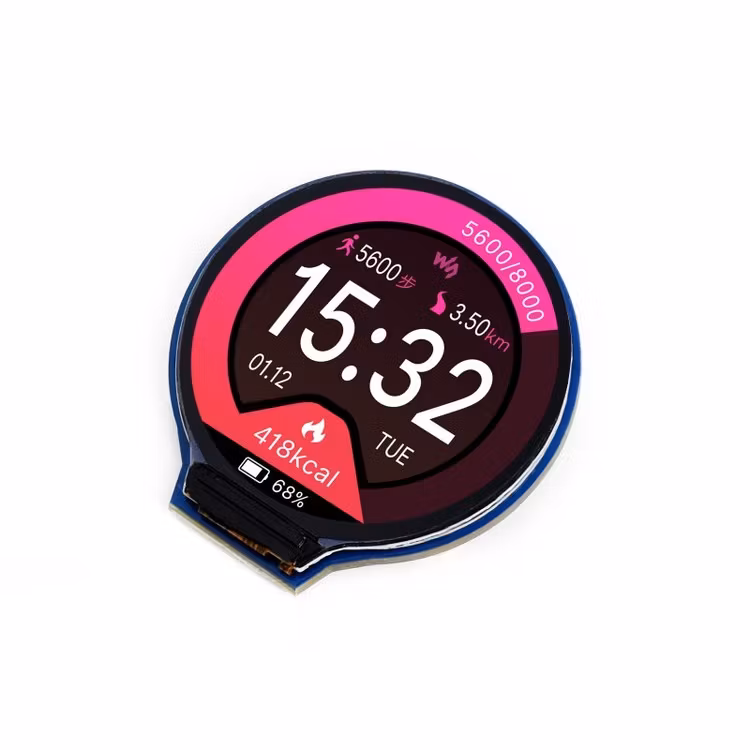

1.28inch Round LCD Display Module, 65K RGB

  • 249 kr

1.28inch Round LCD Display Module, 65K RGB Colors, 240×240 Resolution, SPI Interface1.28" ROUND LCD DISPLAY MODULEEmbedded GC9A01 Driver, Using SPI BusComes wit

I lager.
Lagersaldo: 13
Artikelnummer: 19192
Dela
  • Information

1.28inch Round LCD Display Module, 65K RGB Colors, 240×240 Resolution, SPI Interface

1.28" ROUND LCD DISPLAY MODULE

Embedded GC9A01 Driver, Using SPI Bus

Comes with examples for Raspberry Pi, Arduino, STM32, etc.



Size  1.28"

Resolution 240×240

Display Color  65K RGB

Interface  SPI

Driver GC9A01

Features At A Glance

  • 240×240 resolution, 65K RGB colors, clear and colorful displaying effect
  • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
  • Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications

OPERATING VOLTAGE
3.3V / 5V
RESOLUTION
240 × 240 pixels
COMMUNICATION INTERFACE
4-wire SPI
DISPLAY SIZE
Φ32.4mm
DISPLAY PANEL
IPS
PIXEL SIZE
0.135 × 0.135mm
DRIVER
GC9A01
DIMENSIONS
40.4 × 37.5mm Φ37.5mm

Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

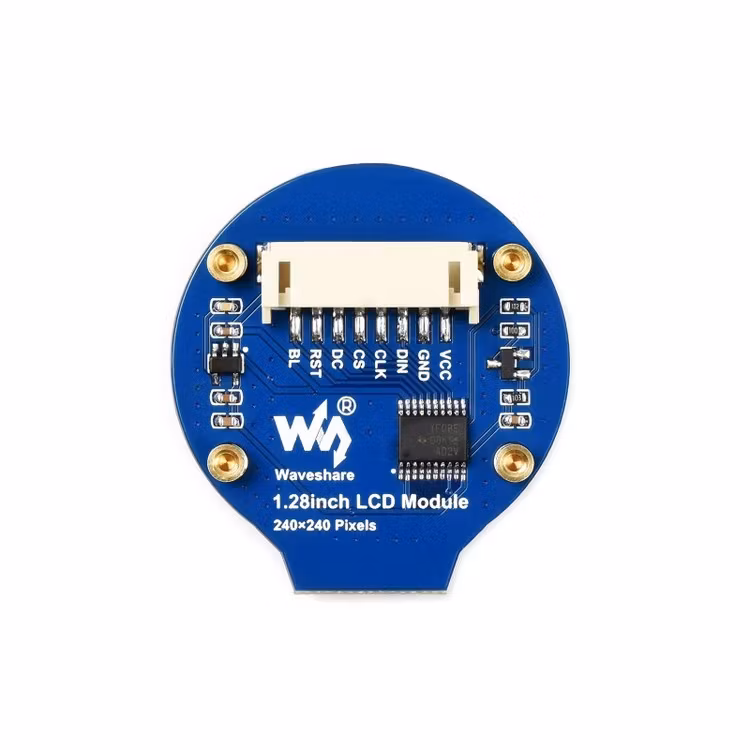

VCC
Power (3.3V / 5V input)
GND
Ground
DIN
SPI data input
CLK
SPI clock input
CS
Chip selection, low active
DC
Data/Command selection (high for data, low for command)
RST
Reset, low active
BL
Backlight

Hardware Connection

Connecting With Raspberry Pi

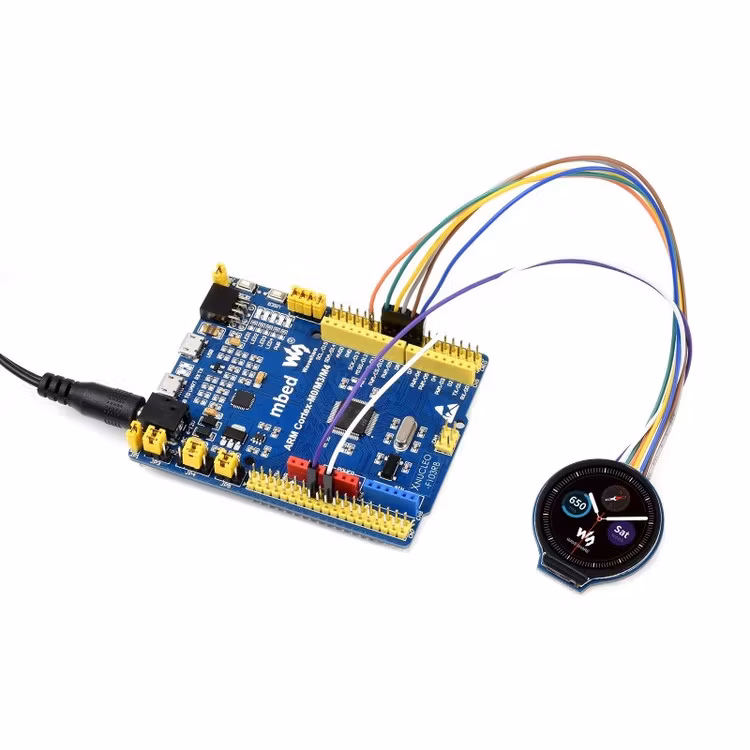

Connecting With Arduino Board

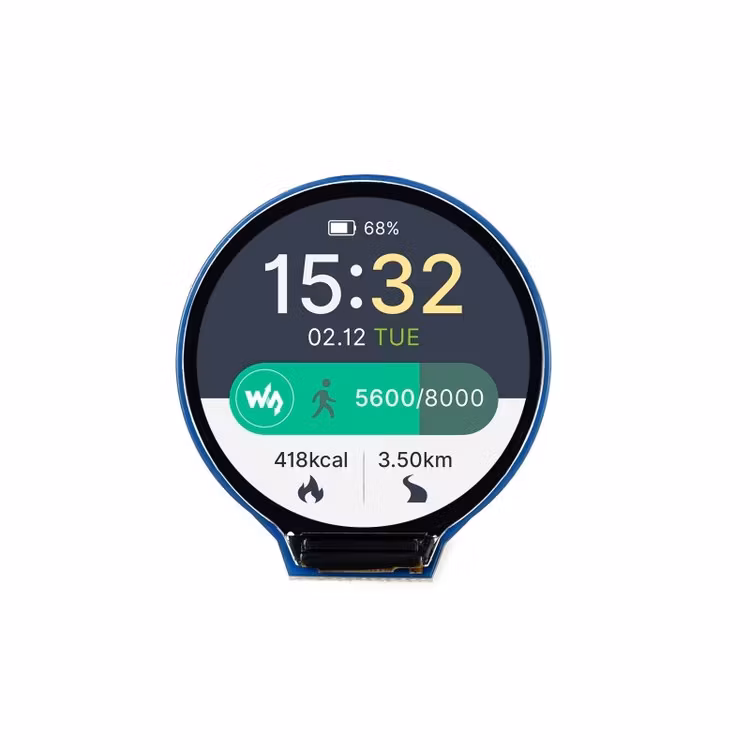

Living Example

Outline Dimensions

Wiki: 1.28inch_LCD_Module

Shipping list

Weight: 0.015 kg

  1. 1.28inch LCD Module x1
  2. PH2.0 8PIN 20cm cable x1
