1.3inch IPS LCD display HAT for Raspberry Pi

  • 199 kr

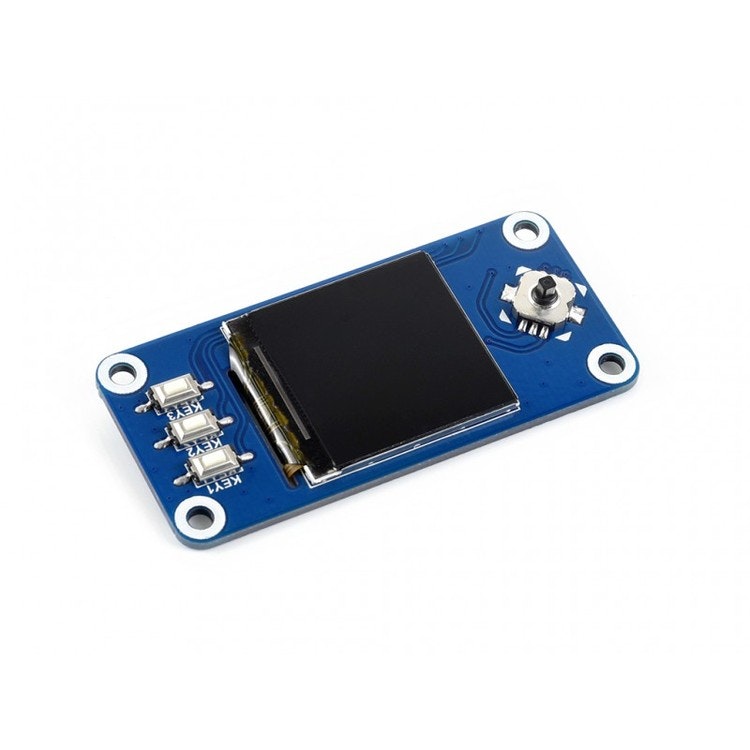

1.3inch IPS LCD display HAT for Raspberry Pi, 240x240 pixels, SPI interfaceOverviewThis is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240x240 pi

I lager.
Artikelnummer: 14972
Dela

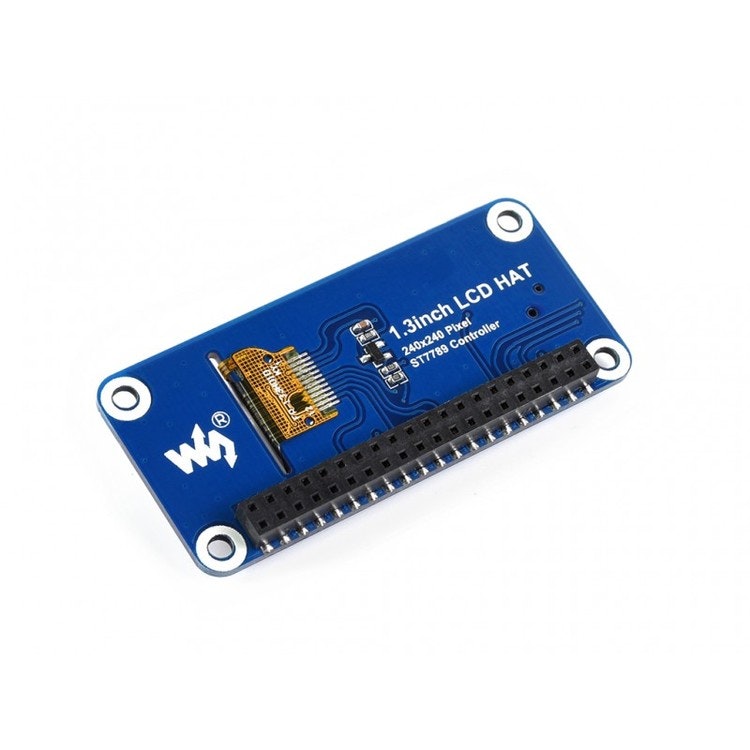

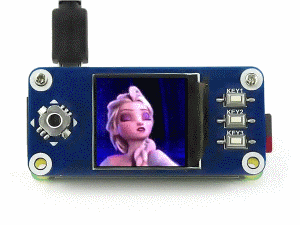

1.3inch IPS LCD display HAT for Raspberry Pi, 240x240 pixels, SPI interface

Overview

This is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240x240 pixels, with embedded controller, communicating via SPI interface.

Trying to add a control interface for your Pi? This compact display would be the ideal choice.


Features

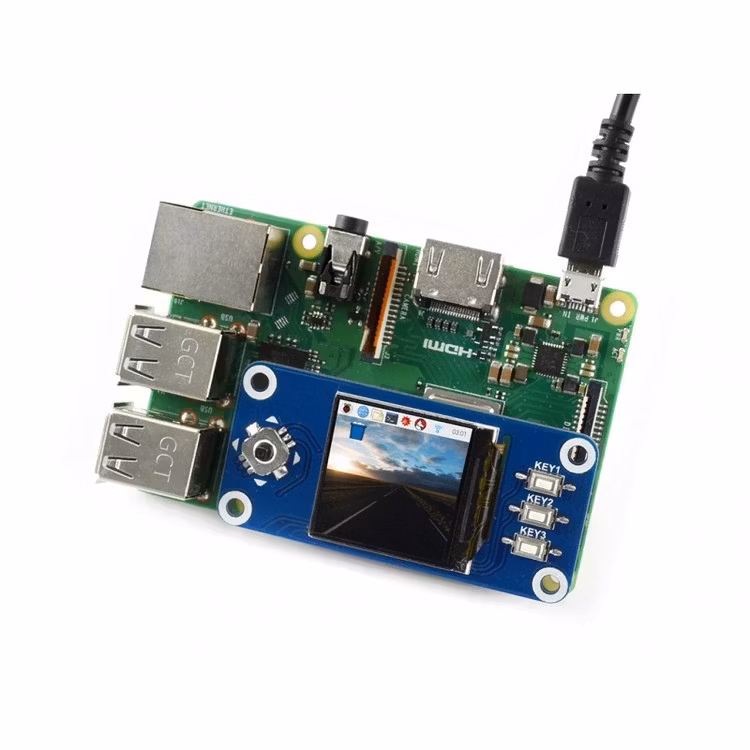

  • Standard Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • IPS screen, wide viewing angle, better display
  • High definition in small size
  • 1x joystick, 3x pushbuttons, handy and useful
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Driver: ST7789
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 240x240
  • Backlight: LED
  • Operating voltage: 3.3V

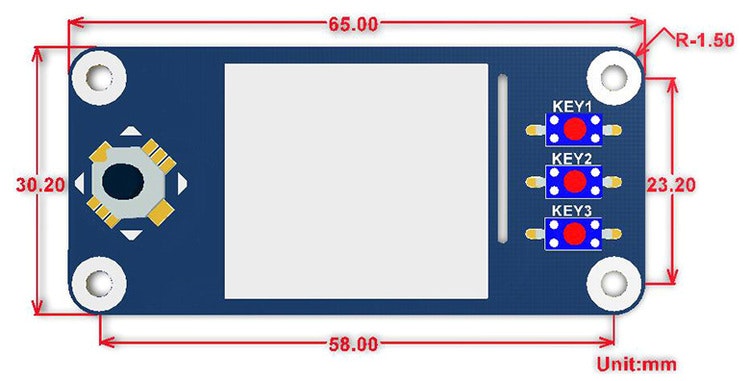

Interface

SYMBOLRaspberry Pi PIN (BCM)DESCRIPTION
KEY1P21Button 1/GPIO
KEY2P20Button 2/GPIO
KEY3P16Button 3/GPIO
Joystick UpP6Joystick Up
Joystick DownP19Joystick Down
Joystick LeftP5Joystick Left
Joystick RightP26Joystick Right
Joystick PressP13Joystick Press
SCLKP11/SCLKSPI clock input
MOSIP10/MOSISPI data input
DCP25Data/Command selection (high for data, low for command)
CSP8/CE0Chip selection, low active
RSTP27Reset, low active
BLP24Backlight


Development Resources

Wiki : Wiki
