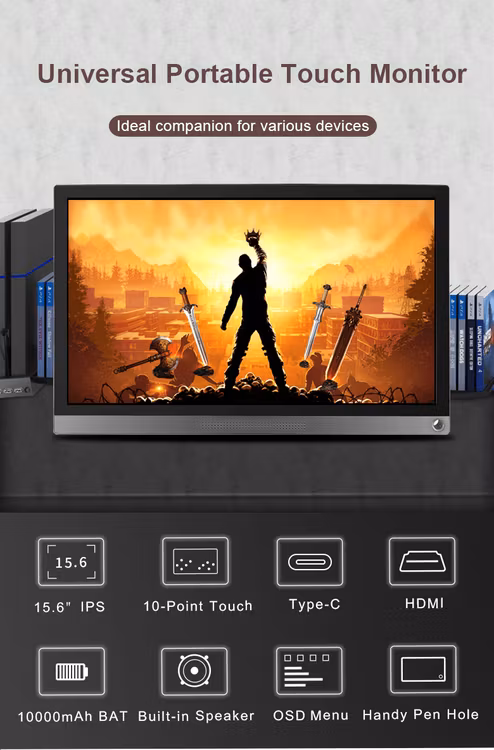

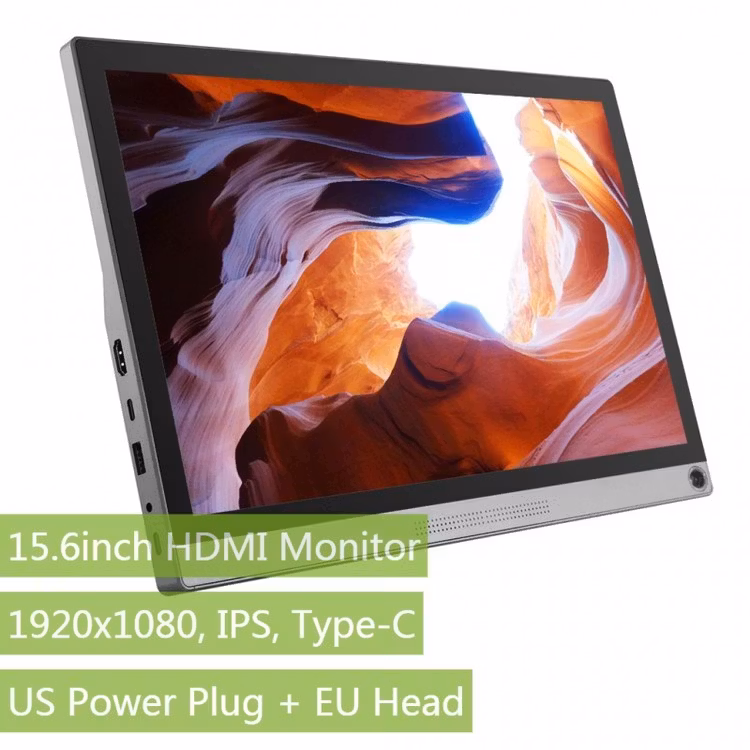

15.6inch Universal Portable Touch Monitor (for EU), 1920×1080, IPS, Type-C

  • 2 449 kr

This is a universal portable touch monitor, which features Type-C and HDMI connectivity, 1920×1080 pixels, toughened glass capacitive touch panel, and powerful

I lager.
Lagersaldo: 1
Artikelnummer: 323

This is a universal portable touch monitor, which features Type-C and HDMI connectivity, 1920×1080 pixels, toughened glass capacitive touch panel, and powerful 10000mAh battery.

It's the perfect companion for Raspberry Pi, besides, other popular mini PC are also supported, such as Jetson Nano. In the case of working as a simple monitor with host devices like desktop computer, notebook, cell phone, or game console, it is also a "serious" option. Switch to the HD big screen in one second through the Type-C or HDMI connection, then start to study/work effectively, or enjoy yourself with your favorite drama/game.


  • Display: 15.6inch, 1920×1080 pixels, IPS screen (up to 178° viewing angle)
  • Touch panel: capacitive, toughened glass panel, 6H hardness
  • Display interface: Type-C/HDMI
  • Touch interface: Type-C/USB
  • Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black
    • When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
  • Supports desktop computers with Windows 10/8.1/8/7, 10-point touch, and driver free

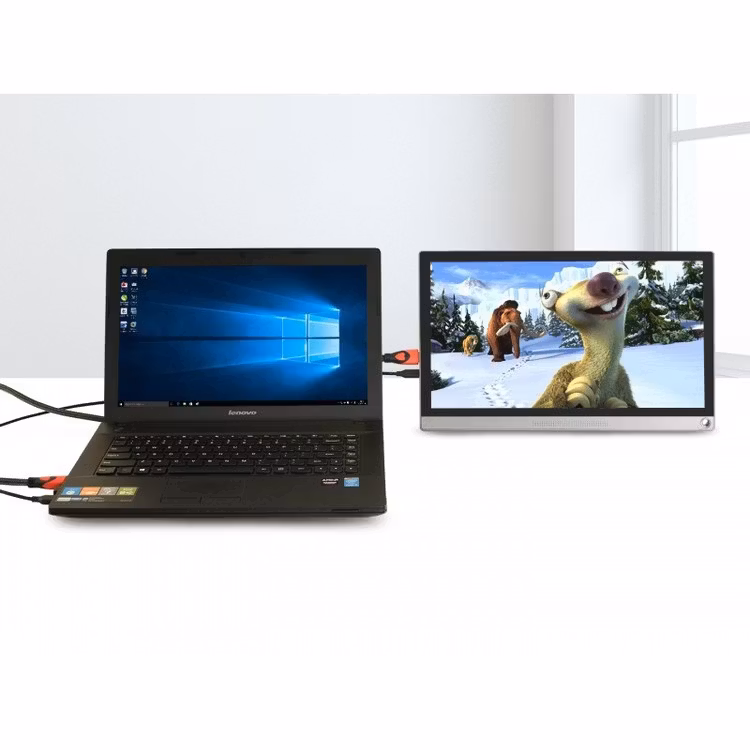

  • Supports notebooks from Apple, HUAWEI, Lenovo, HP, DELL, etc. dual-screen display, balance the work and entertainment
  • Supports cell phones from HUAWEI, OPPO, Samsung, etc. mirror cast via the Type-C connection, ideal companion for travelling
  • Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch
  • Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
  • USB expansion port for mouse/keyboard
  • Type-C/HDMI audio input, 3.5mm headphone/speaker jack
  • Embedded ferrite Hi-Fi speaker
  • 10000mAh big battery, enables 3-4h playtime on the trip

Development Resources

Wiki : www.waveshare.com/wiki/15.6inch_HDMI_Monitor


You may also want to buy a protective case for this monitor: 15.6inch HDMI Monitor Case


Why the LCD doesn't work with my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.
Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?
It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power.
For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

Shipping list

Weight: 1.785 kg

  1. 15.6inch HDMI Monitor x1
  2. Power adapter US head 12V/2A Type-C x1
  3. USB-A to USB-C cable x1
  4. USB-C to USB-C cable x1
  5. HDMI cable x1
  6. Power adapter EU head x1

15.6" Touch Monitor

  • Size15.6"
  • Resolution1920×1080
  • Display PortType-C/HDMI
  • Display PanelIPS
  • Viewing Angle178°
  • Touch TypeCapacitive
  • Touch Points10-Points
  • Touch PortType-C/USB
  • Touch PanelToughened Glass
  • Display FeatureHigh Dynamic Range
  • OSD MenuBrightness/Contrast
  • USB ExtensionExternal Devices
  • SoundHi-Fi Speaker
  • Audio Output3.5mm Jack
  • Big Battery10000mAh
  • GamingXbox360/PS4/Switch
  • SmartphoneHuawei/Samsung...
  • EnclosurePolycarbonate

Device & System Support


Raspberry Pi

Supports Raspbian, 10-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free


Supports Windows 10 / 8.1 / 8 / 7, 10-points touch, driver free

Game Console

Xbox360, PS4, Switch...


Huawei, Samsung, OPPO, LG, HTC...(mirror cast)

Hookup Example

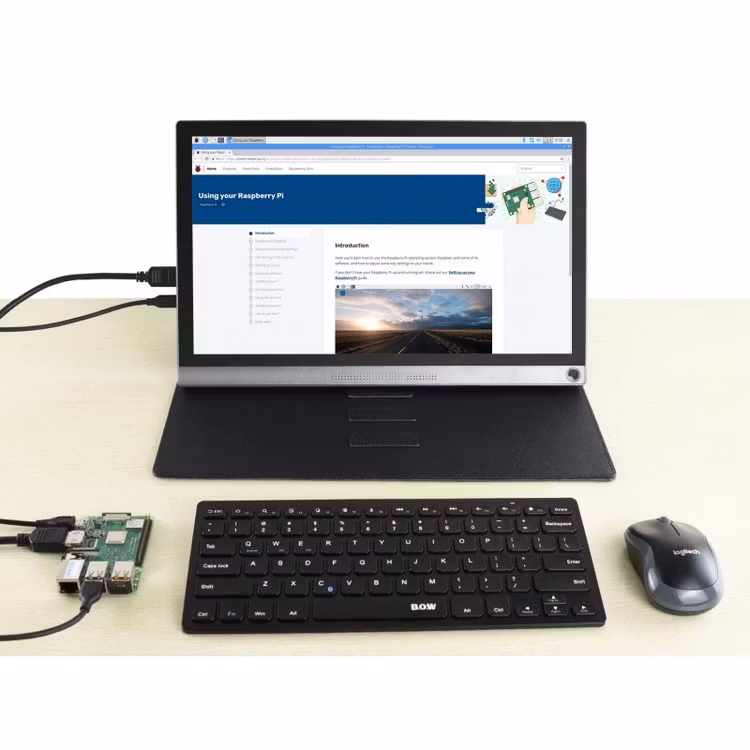

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With AI Computer Jetson Nano

Working With Full-Featured Type-C Mini PC

Working With Full-Featured Type-C Smartphone

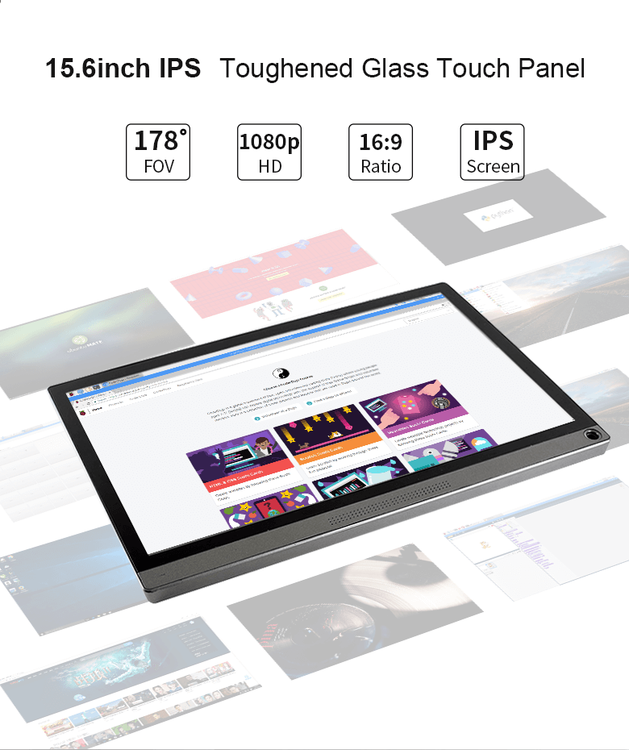

Display Panel

IPS Panel

HDR Feature

HDR (High Dynamic Range) Technology, Delivering More Realistic And Colorful Visual Effect

Touch Control


1) up to 10-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

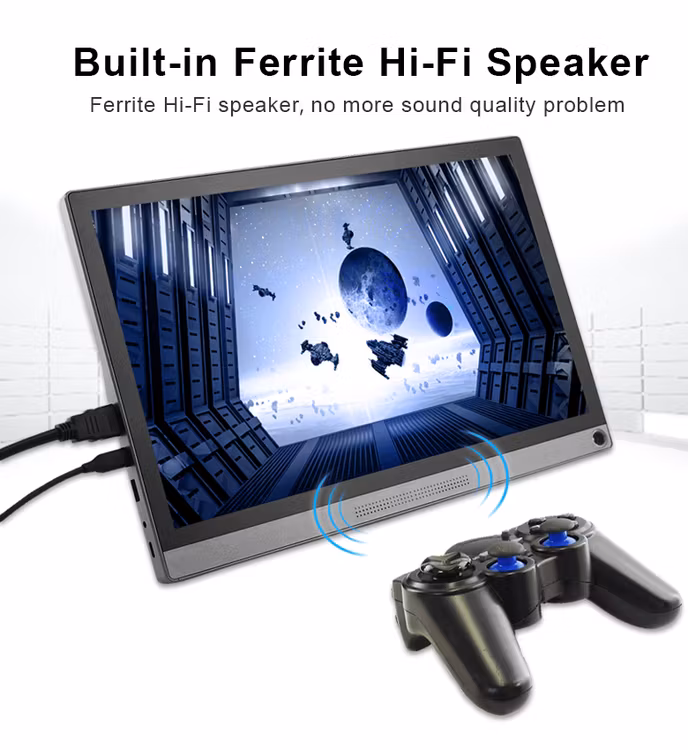

Audio Feature


Enjoy Gaming

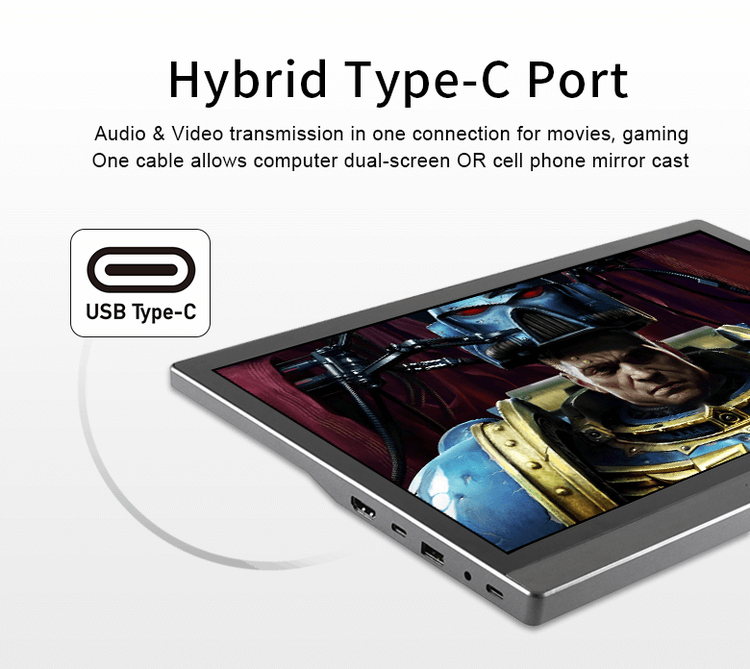

Full-Featured Type-C Port

Audio And Video Transmission In One Connection
One Cable Is Just Enough For Either Computer Dual-Screen OR Smartphone Mirror Cast

Big Battery Inside

Embedded 10000mAh Battery, Enables 3-4h Battery Life, Ideal For Travelling

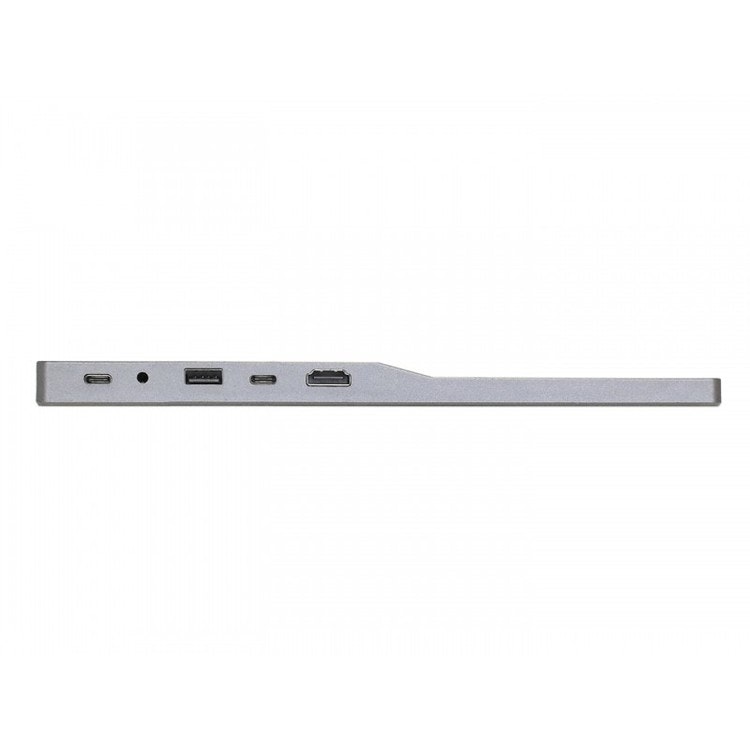

Appearance And Dimensions


(Including But Not Limited To)

mini PCSupports popular mini PC like Raspberry Pi, Jetson Nano, BB Black, etc.
When working with Rasperry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IoT, driver free
PCSupports desktop computers with HDMI port
Supports Windows 10/8.1/8/7, 10-points touch, driver free
NotebookAppleMacBook 12", MacBook Pro, MacBook Air, iPad Pro 2018
HUAWEIMateBook, MateBookX, MateBookXPro, MateBookE
MIAir 12.5/13.3", Pro15.6", MI gaming laptop
LenovoYoga5 Pro, ThinkPad_XI Carbon 2017, Miix 720
HPPavilion x2, EliteBook Folio G1
GoogleChromeBook Pixels, PielBook Pen
RazerBlade/Blade Stealth
MicrosoftSurface Book 2
ASUSZenBook3, U306, U321 series, U4100, ROG series
SmartphoneHUAWEIMate10, Mate10 Pro, Mate20, Mate20 Pro, Mate20 X, P20, P20 Pro
HonorNote10, Magic 2, V20
HTCU Ultra
RazerRazer Phone, Razer Phone 2
ASUSROG gaming phone
SamsungS8, S8+, S9, S9+, S10, Note8, Note9

Resources & Services

Wiki: www.waveshare.com/wiki/15.6inch_FHD_Monitor

Product Certification

HDMI Certified
