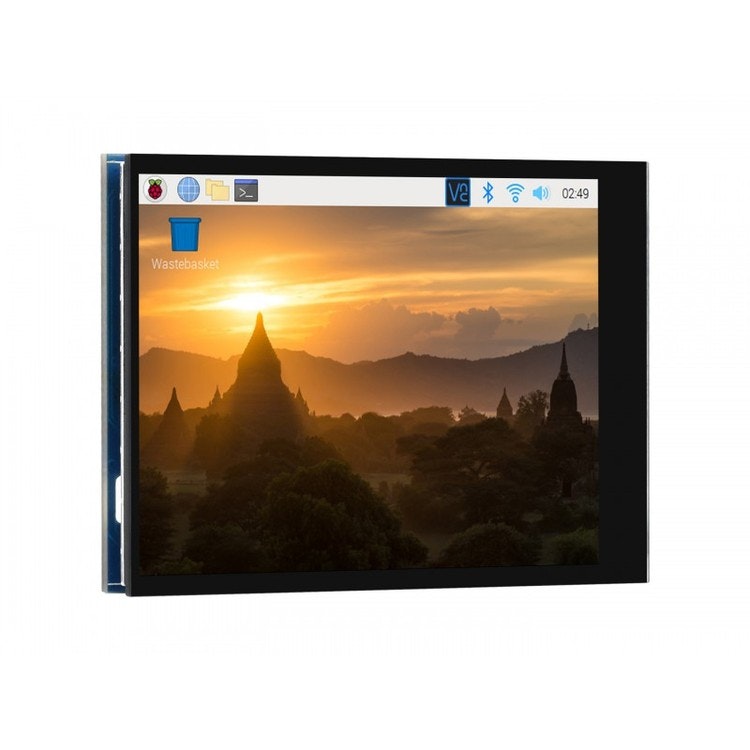

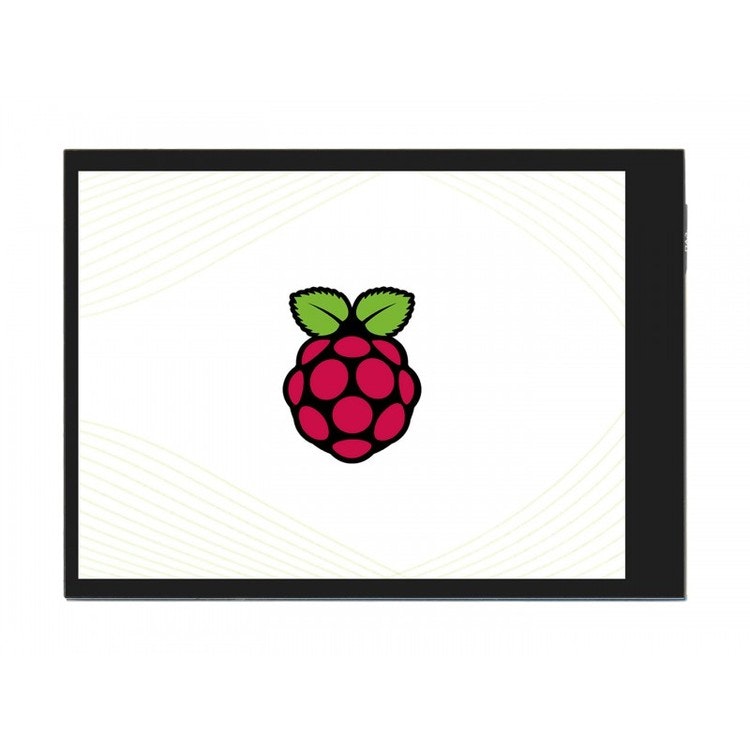

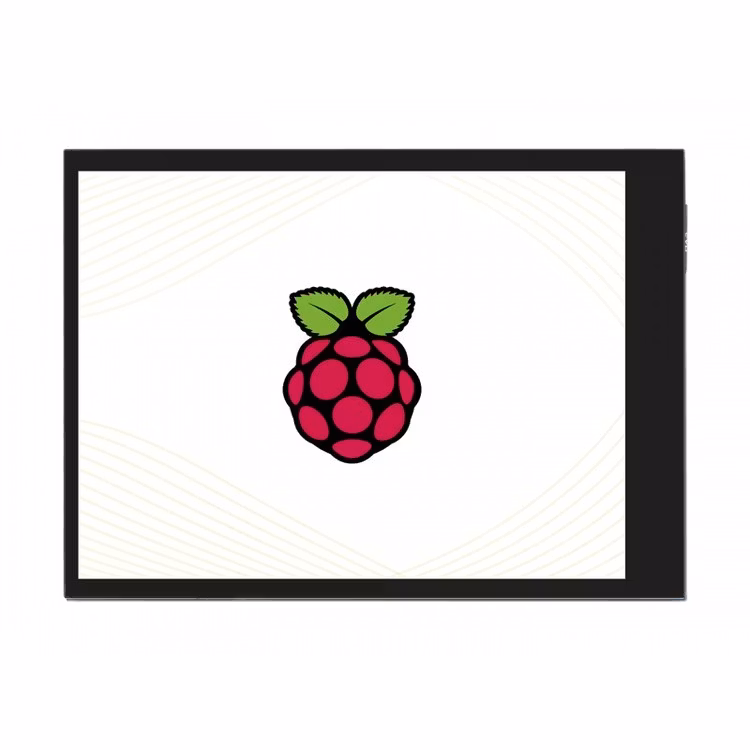

2.8inch Capacitive Touch Screen LCD for Raspberry Pi, 480×640, DPI, IPS

I lager.
499 kr

469 kr

Artikelnummer: 884
  • 2.8inch Capacitive Touch Screen LCD For Raspberry Pi, 480×640, DPI, IPS, Fully Laminated Toughened Glass Cover, Low Power Solution

2.8" DPI Touch Display


  Size 2.8"

Resolution 480×640

Display Port DPI666 (262K Colors)

Display Panel IPS

Viewing Angle 160°

Touch Type Capacitive

Touch Points 5-Points

I

Touch Port 2C

Touch Panel Toughened Glass

Touch Panel Tech Fully Laminated

Power Consumption Low Power

Device & System Support



Raspberry Pi

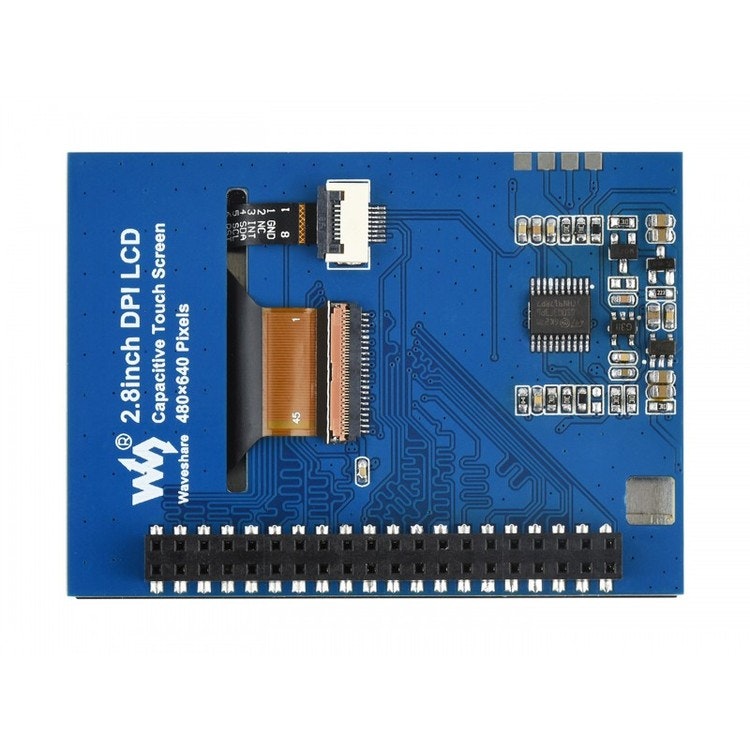

Based on Raspberry Pi 40PIN GPIO header
Driven by Raspberry Pi DPI666 interface, up to 60Hz refresh rate
5-Points touch control through Raspberry Pi I2C interface
Supports systems like Raspbian, Kali...

Supports future version which is backward compatible

  • The display orientation is portrait by default, 480×640 resolution (H×V). Change the software config for landscape display.

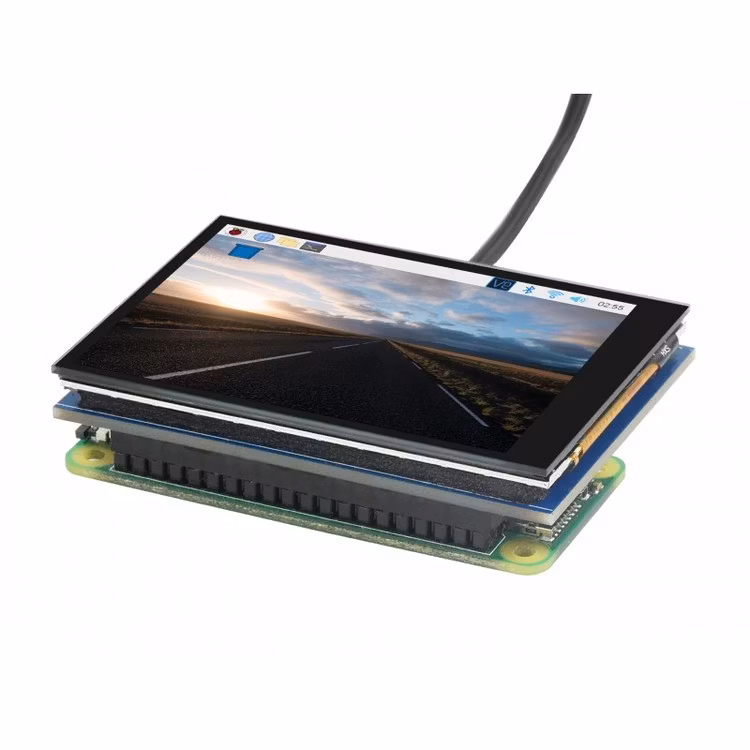

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Display

IPS Panel

Touch Control



1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) fully laminated screen, better display experience, dust-proof.

Appearance And Dimensions

Resources & Services

Wiki: 2.8inch_DPI_LCD

Shipping list

Weight: 0.034 kg

  • 2.8inch DPI LCD x1
