7inch IPS Display for Raspberry Pi, DPI interface, no Touch, 1024x600

I lager.

499 kr

Artikelnummer: 237

1024x600, 7inch IPS Display for Raspberry Pi, DPI interface, no Touch

Features

  • 1024x600 high resolution
  • Compatible with Raspberry Pi 2B/3B/Zero/Zero W
  • The TFT LCD is directly driven by Raspberry Pi DPI interface, refresh rate up to 60Hz
  • Supports Raspbian, Ubuntu, OSMC, etc.
  • The backlight can be turned off to lower power consumption
  • Compact size, suit for various projects

PACKAGE CONTENT

Weight: 0.242 kg

  1. 7inch 1024×600 IPS LCD x1
  2. RGB LCD HAT x1
  3. LCD stand x1
  4. Quick start sheet x1

7" DPI Display

  • Size
  • 7"
  • Resolution
  • 1024×600
  • Display Port
  • DPI
  • Display Panel
  • IPS
  • Viewing Angle
  • 170°
  • Consumption
  • Low Power

Device & System Support



Raspberry Pi

Based on Raspberry Pi 40PIN GPIO header
Driven by Raspberry Pi DPI interface, up to 60Hz refresh rate
Supports systems like Raspbian, Ubuntu MATE*, OSMC...

Supports future version which is backward compatible

* Ubuntu MATE on Pi 4B is not available now, until the official image is released

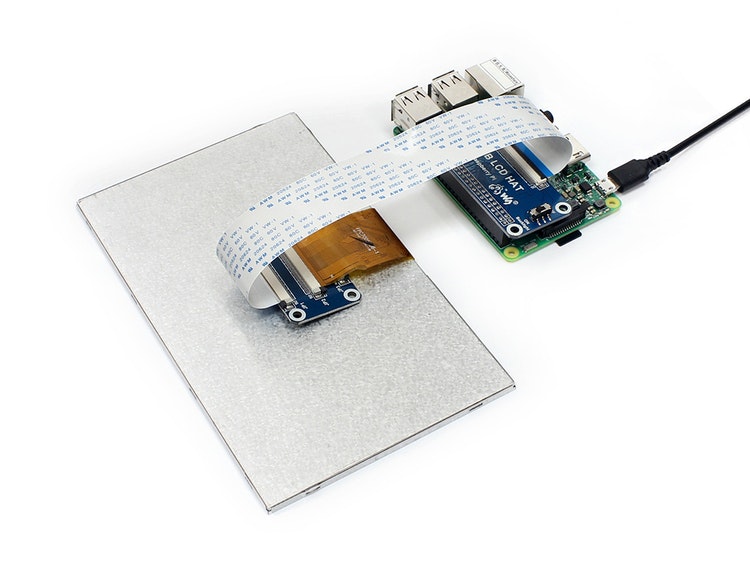

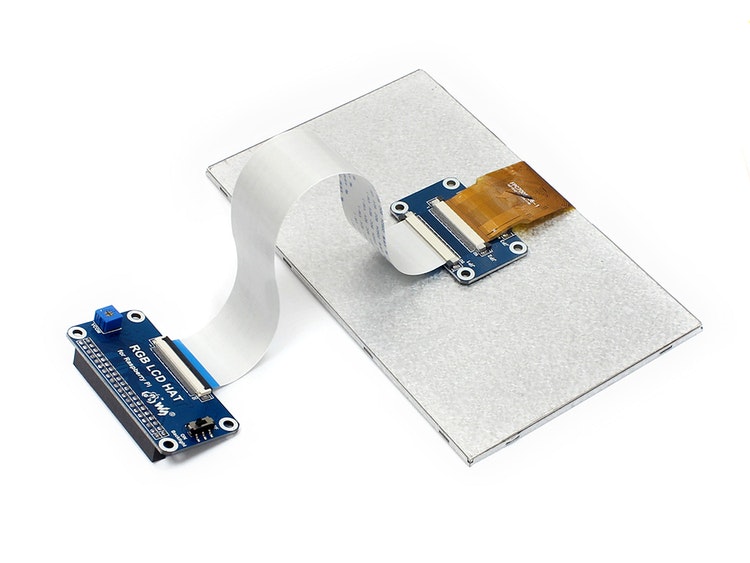

Hookup Example

Working With Different Versions Of Raspberry Pi

Display

IPS Panel

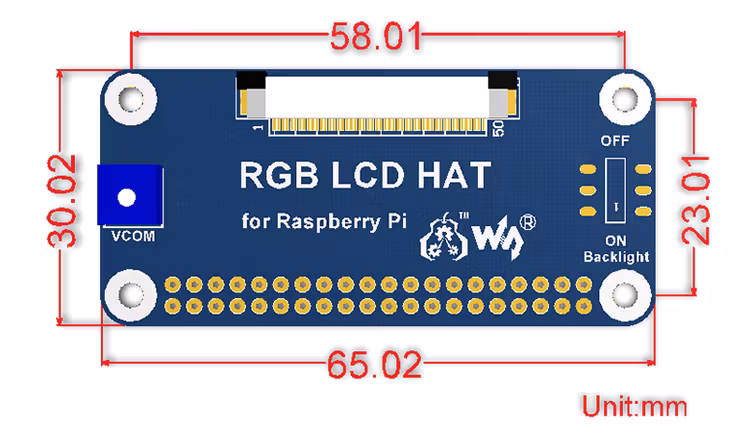

Appearance And Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/7inch_DPI_LCD


Wiki

Shipping list

Weight: 0.721 kg

Net Weight: 0.221 kg

  1. 7inch 1024×600 IPS LCD x1
  2. RGB LCD HAT x1
  3. LCD stand (large size) x1
  4. Quick start sheet x1
