Raspberry Pi Camera HD v2

  • 349 kr

Official Raspberry Pi Camera Board V2FeaturesOfficial Raspberry Pi Camera Board supports Raspberry Pi and Jetson NanoSony IMX219 8-megapixel sensorCamera specif

Produkten är tyvärr slut i lager. :(

Artikelnummer: 541
Dela

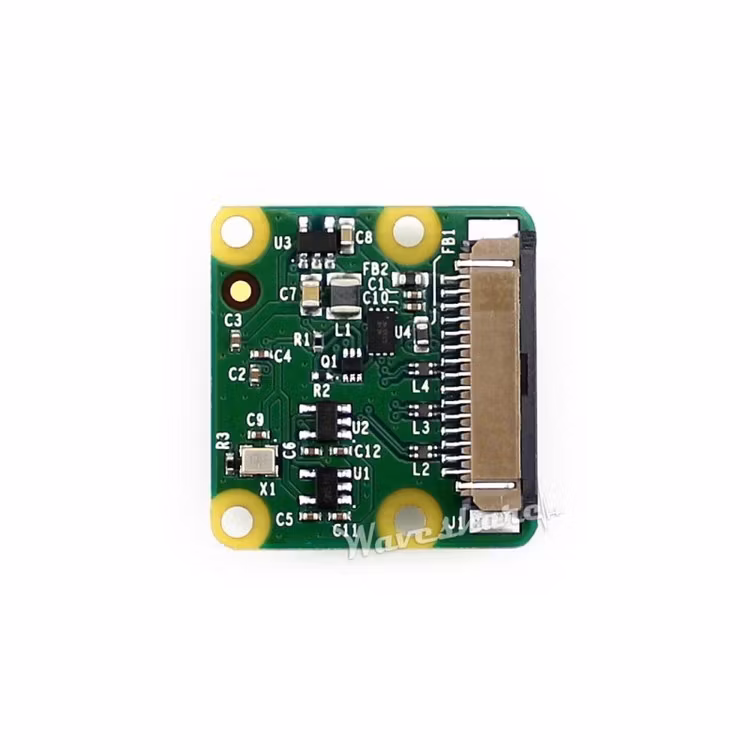

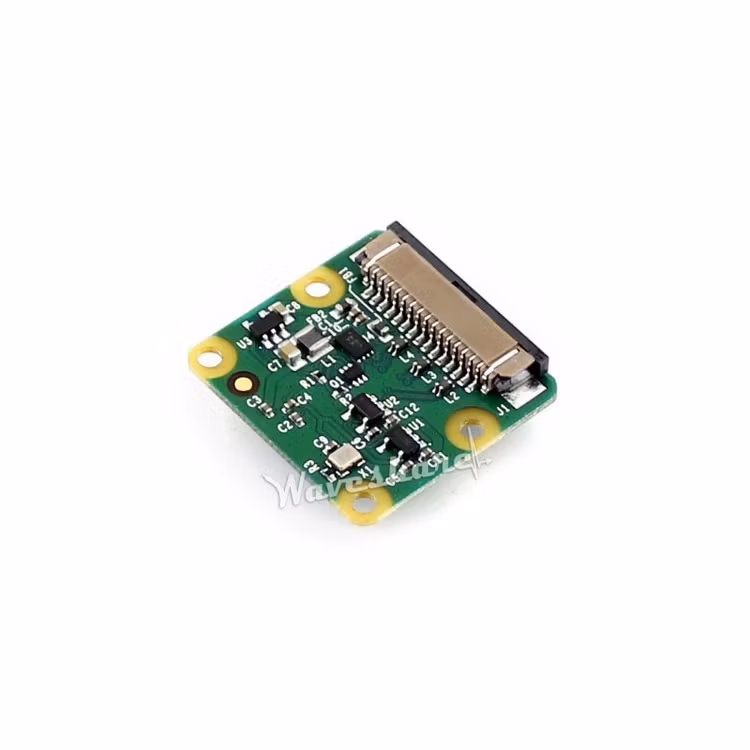

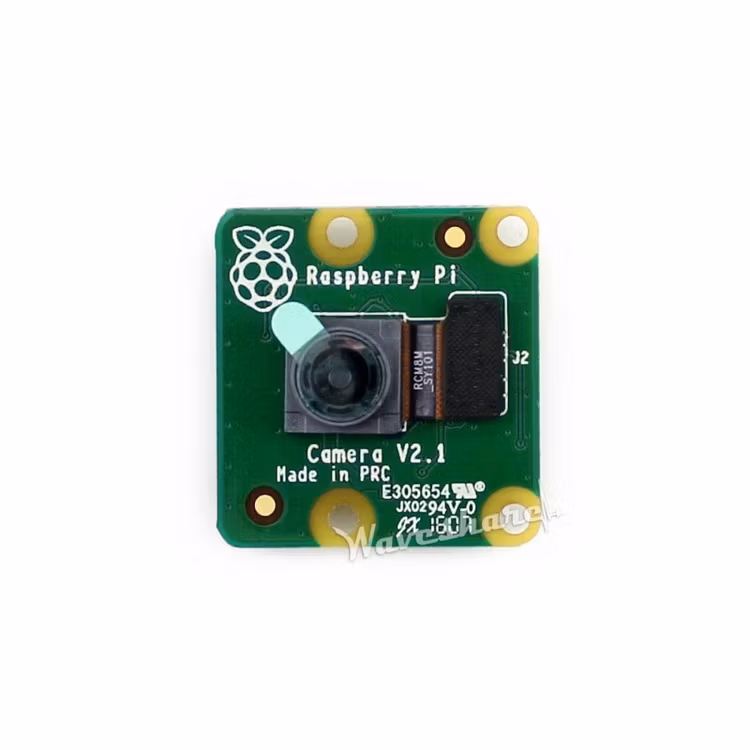

Official Raspberry Pi Camera Board V2

Features

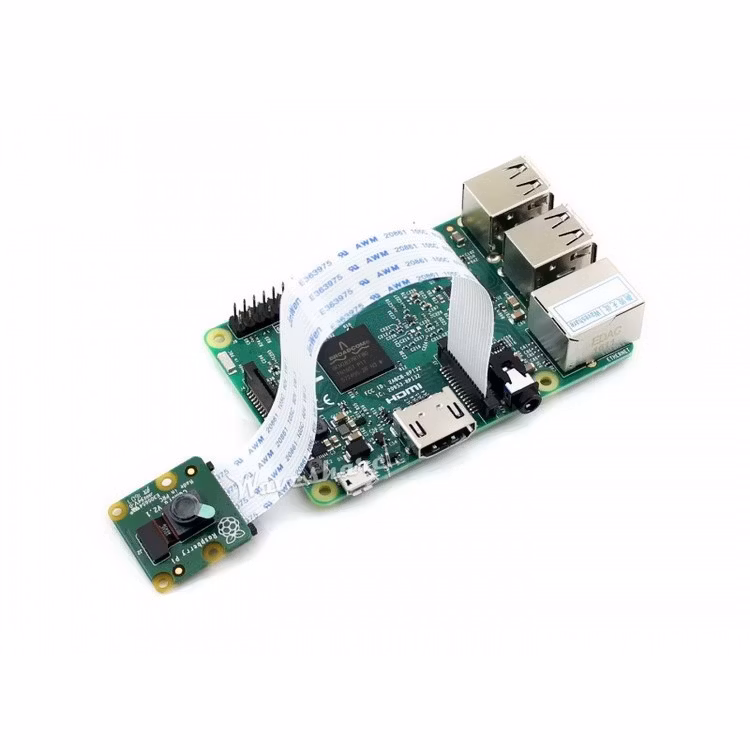

  • Official Raspberry Pi Camera Board supports Raspberry Pi and Jetson Nano
  • Sony IMX219 8-megapixel sensor
  • Camera specifications
    • CCD size: 1/4inch
    • Aperture (F) : 2.0
    • Focal Length: 3.04mm
    • Angle of View (diagonal) : 62.2 degree
  • 3280 × 2464 still picture resolution
  • Support 1080p30, 720p60 and 640x480p90 video record
  • Dimension: 25mm × 24mm × 9mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero cable.

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Camera_V2

Shippings list

Weight: 0.028 kg

The included FFC is 15cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

  1. RPi Camera V2 x1
  2. 15-pin FFC (opposite sides contact) x1
