Raspberry Pi Zero W Kit E, with 2.13inch e-Paper HAT

  • 675 kr

This development kit includes the Raspberry Pi Zero W (built-in WiFi), 16GB Micro SD Card, 5V 2.5A Power Adapter, 2.13inch e-Paper HAT (B) which is a three

Produkten är tyvärr slut i lager. :(

Artikelnummer: 402
Dela
  • Information

This development kit includes the Raspberry Pi Zero W (built-in WiFi), 16GB Micro SD Card, 5V 2.5A Power Adapter, 2.13inch e-Paper HAT (B) which is a three-colour e-ink display.

The kit also comes with some most basic components you may need to get going with your Pi Zero: Mini HDMI to HDMI Adapter, Micro USB OTG Cable, and 2×20-pin 2.54 male/female pinheader strips.

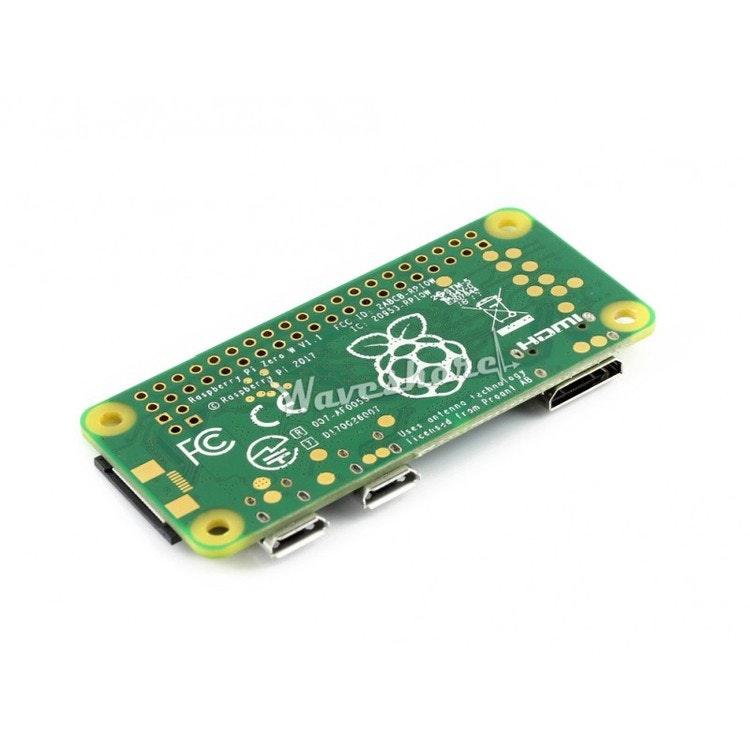

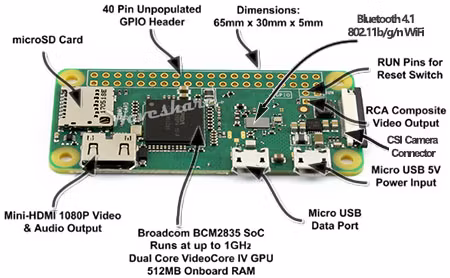

Raspberry Pi Zero W Features

  • Broadcom BCM2835
    • 1GHz ARM11 single-core processor
  • 512MB RAM
  • Added wireless connectivity
    • 802.11 b/g/n wireless LAN
    • Bluetooth 4.1
    • Bluetooth Low Energy (BLE)
  • Micro SD card slot
  • Mini-HDMI port (1080p60 video output)
  • Micro-USB power
  • Micro-USB OTG port
  • 40PIN unpopulated GPIO header (compatible with A+/B+/2B/3B)
  • CSI camera connector
  • Composite video header
  • Composite reset header
  • Dimension: 65mm x 30mm x 5mm

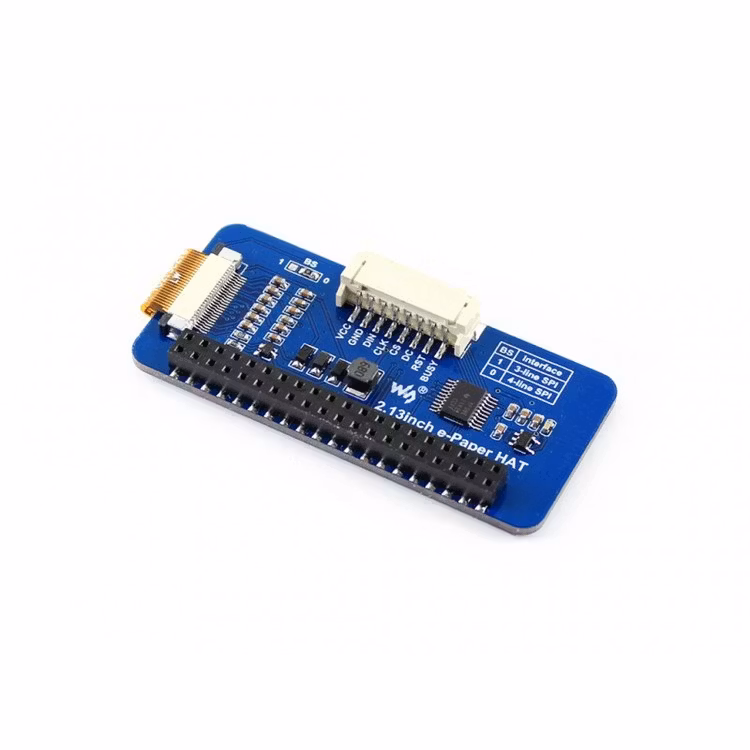

2.13inch e-Paper HAT (B) Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

2.13inch e-Paper HAT (B) Specifications

  • Operating voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 65mm × 30.2mm
  • Display size: 23.71mm × 48.55mm
  • Dot pitch: 0.229 × 0.228
  • Resolution: 212 × 104
  • Display color: red, black, white
  • Grey level: 2
  • Full refresh time: 15s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

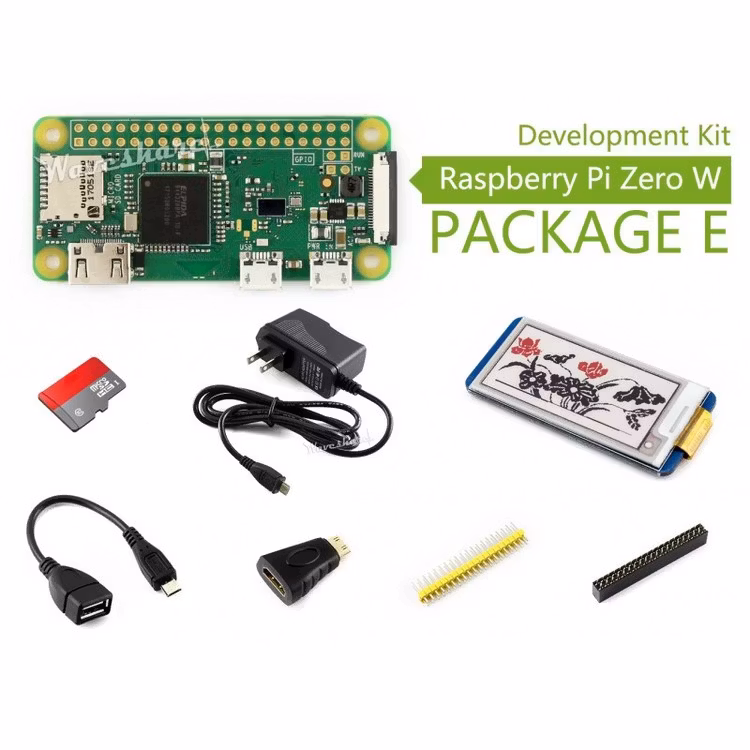

Shipping list

Weight: 0.147 kg

  1. Raspberry Pi Zero W x1
  2. Mini HDMI to HDMI Adapter x1
  3. Micro USB OTG Cable x1
  4. 2x20-pin 2.54 male pinheader strip x1
  5. 2x20-pin 2.54 female pinheader strip x1
  6. Micro SD Card 16GB x1
  7. Power adapter US standard 5V/3A micro x1
  8. 2.13inch e-Paper HAT (B) x1
  9. RPi screws pack (2pcs) x1
  10. PH2.0 20cm 8Pin x1
