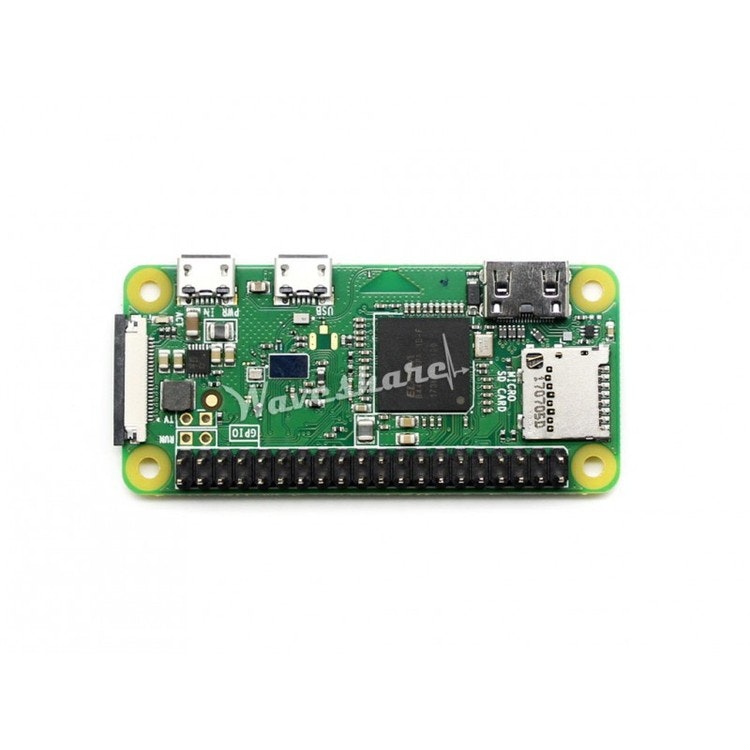

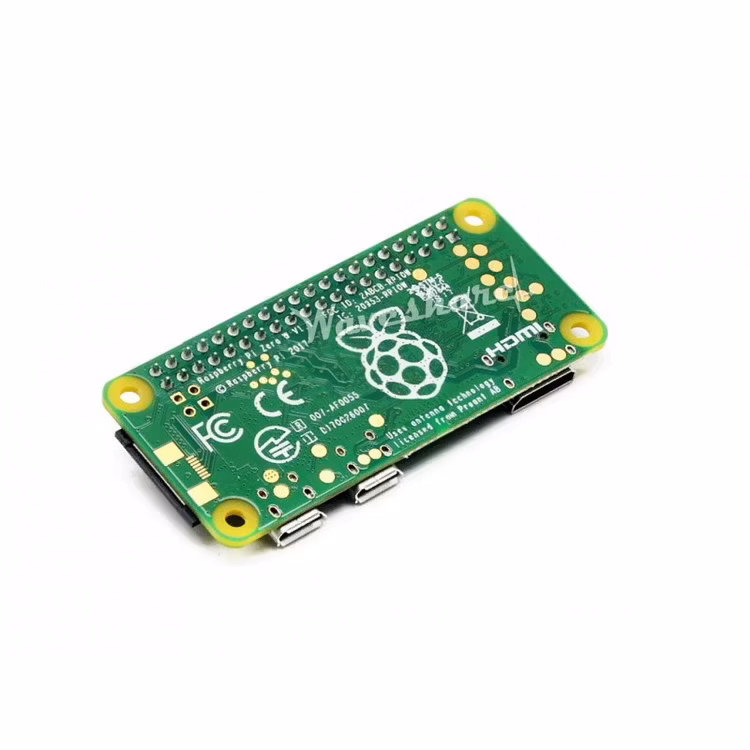

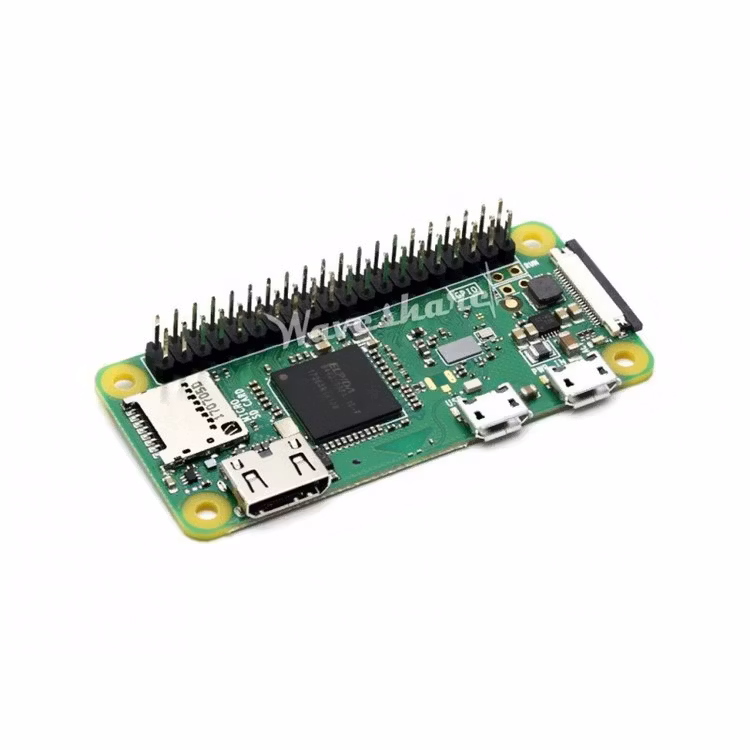

Raspberry Pi Zero WH kit A, Basic Development Kit

Raspberry Pi Zero WH (built-in WiFi, pre-soldered headers) Development Kit Type A, Basic Components

Overview

The Raspberry Pi Zero W / WH extends the Pi Zero family. Launched at the end of February 2017, the Pi Zero W has all the functionality of the original Pi Zero but comes with added WiFi and Bluetooth connectivity.

Now this new Raspberry Pi Zero WH offers all the benefits of the Pi Zero W, plus 40PIN pre-soldered GPIO headers. It's perfect for everyone who doesn't own a soldering iron or who wants the soldering legwork done for them.

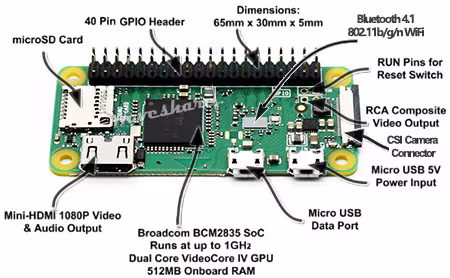

Raspberry Pi Zero WH Features

• Broadcom BCM2835
  • 1GHz ARM11 single-core processor
• 512MB RAM
• Added wireless connectivity
  • 802.11 b/g/n wireless LAN
  • Bluetooth 4.1
  • Bluetooth Low Energy (BLE)
• 40PIN pre-soldered GPIO headers
• Micro SD card slot
• Mini-HDMI port (1080p60 video output)
• Micro-USB power
• Micro-USB OTG port
• CSI camera connector
• Composite video header
• Composite reset header
• Dimension: 65mm x 30mm x 11.6mm

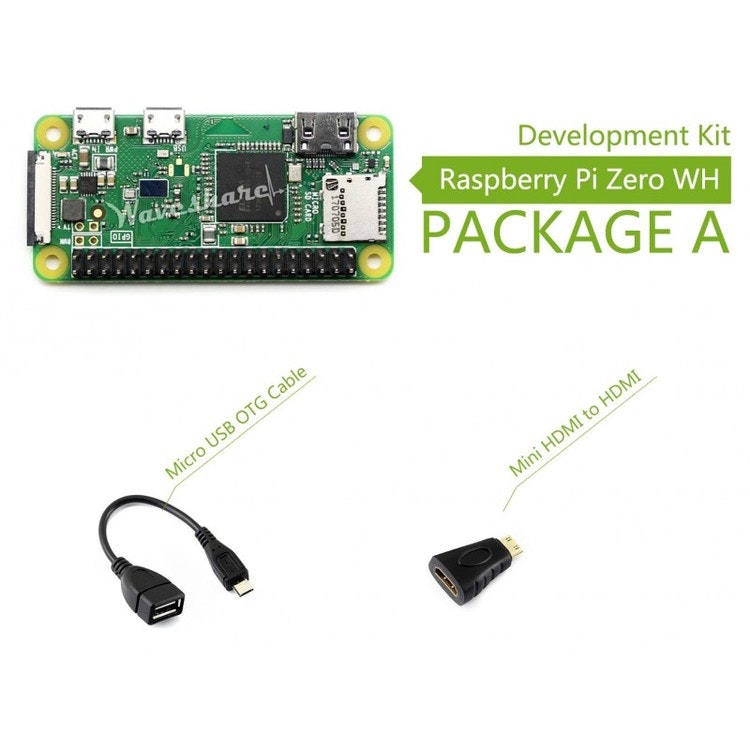

PACKAGE CONTENT

Weight: 0.045 kg

1. Raspberry Pi Zero WH x1
2. Mini HDMI to HDMI Adapter x1
3. Micro USB OTG Cable x1

Shipping list

Weight: 0.045 kg

1. Raspberry Pi Zero WH x1
2. Mini HDMI to HDMI Adapter x1
3. Micro USB OTG Cable x1
