RS485 CAN HAT for Raspberry Pi

I lager.
Antal: 2

249 kr

Artikelnummer: 772

Leverans v23

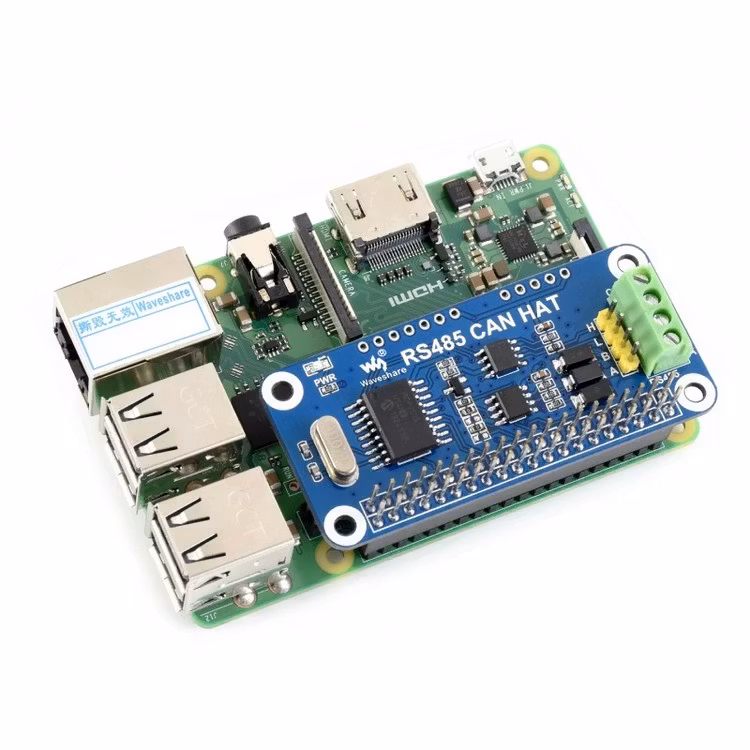

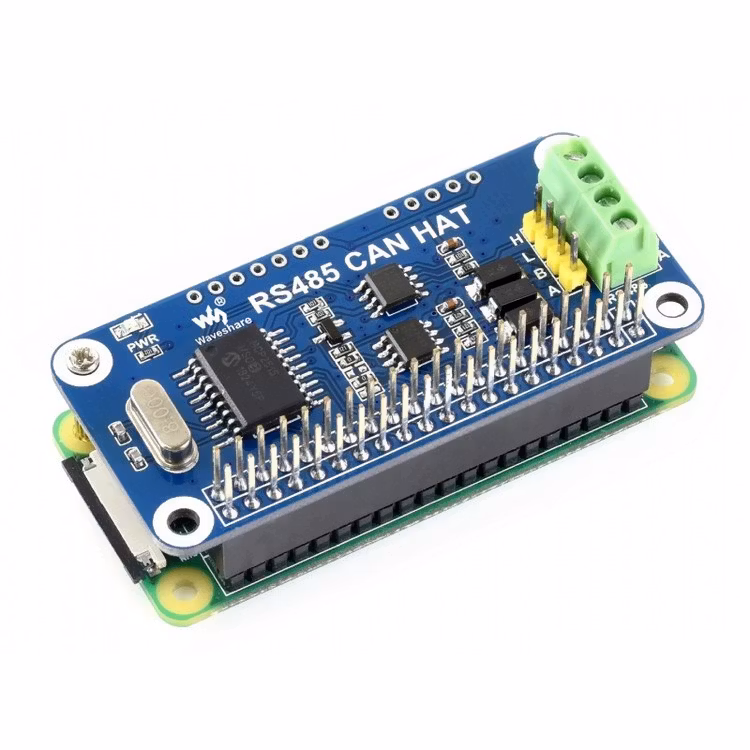

RS485 CAN HAT For Raspberry Pi, Allows Stable Long-Distance Communication

Overview

The RS485 CAN HAT will enables your Pi to communicate with other devices stably in long-distance via RS485/CAN functions.

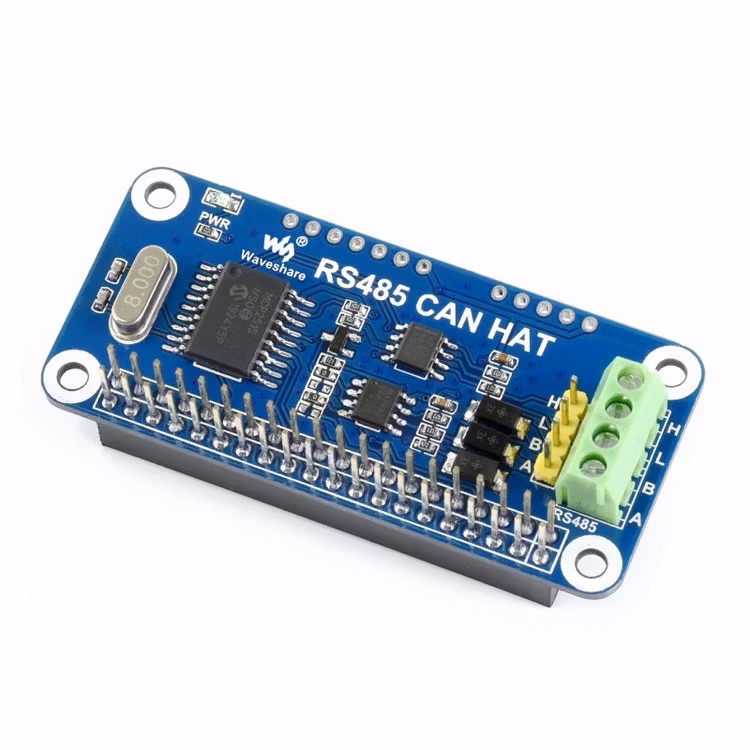

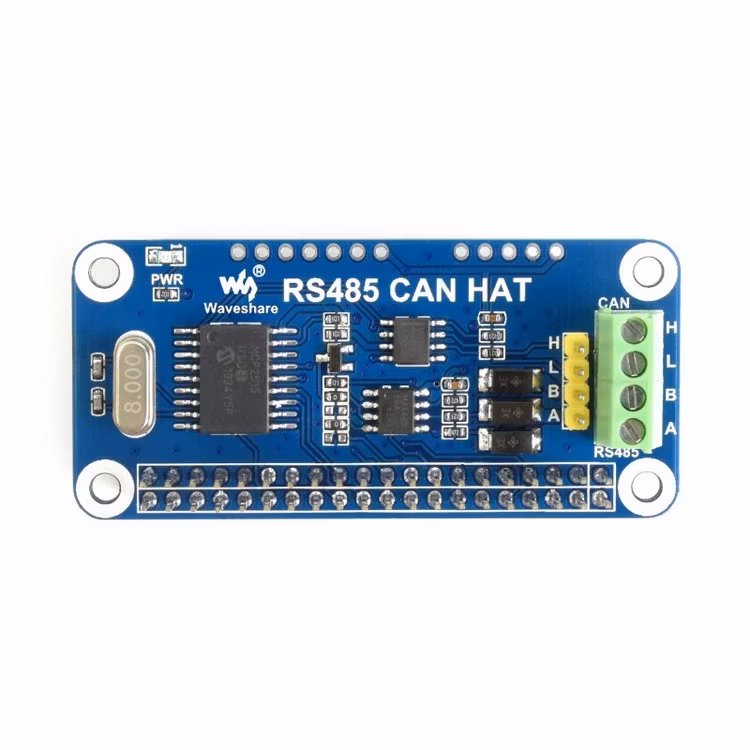

Features

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SN65HVD230
  • RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightning-proof & anti-electrostatic
  • Reserved control pins, allows to work with other control boards
  • Comes with development resources and manual (examples in wiringPi/python)

Specifications

  • Operating voltage: 3.3V
  • CAN controller: MCP2515
  • CAN transceiver: SN65HVD230
  • 485 transceiver: SP3485
  • Dimension: 65mm x 30mm
  • Mounting hole size: 3.0mm

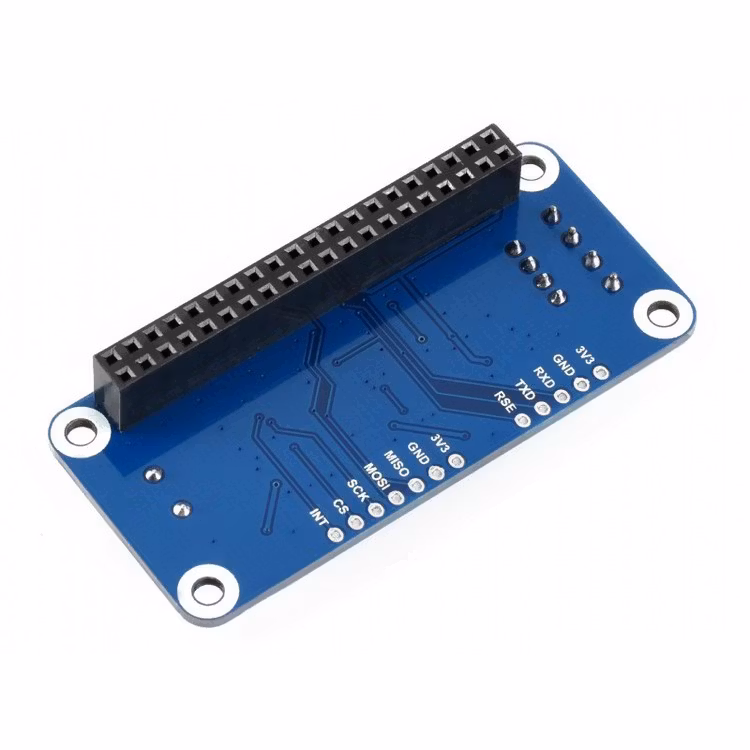

Pinouts

PINRASPBERRY PI (BCM)DESCRIPTION
3V33V33.3V Power
GNDGNDGround
SCKP11 / SCLKSPI clock input
MOSIP10 / MOSISPI data input
MISOP9 / MISOSPI data output
CSP8 / CE0SPI chip selection
INTP25Interrupt
RXDP15 / RXDRS485 UART receive
TXDP14 / TXDRS485 UART transmit
RSEP4RS485 TX/RX control (auto control by default, some soldering is required to enable manual control), high for TX, low for RX

Dimensions

RS485 CAN HAT dimensions

Development Resources

Wiki : www.waveshare.com/wiki/RS485_CAN_HAT

Recommended

We also provide an isolated interface converter USB TO RS232/485/TTL for easy testing.

Shipping list

Weight: 0.018 kg

  1. RS485 CAN HAT x1
  2. RPi screws pack (2pcs) x1
