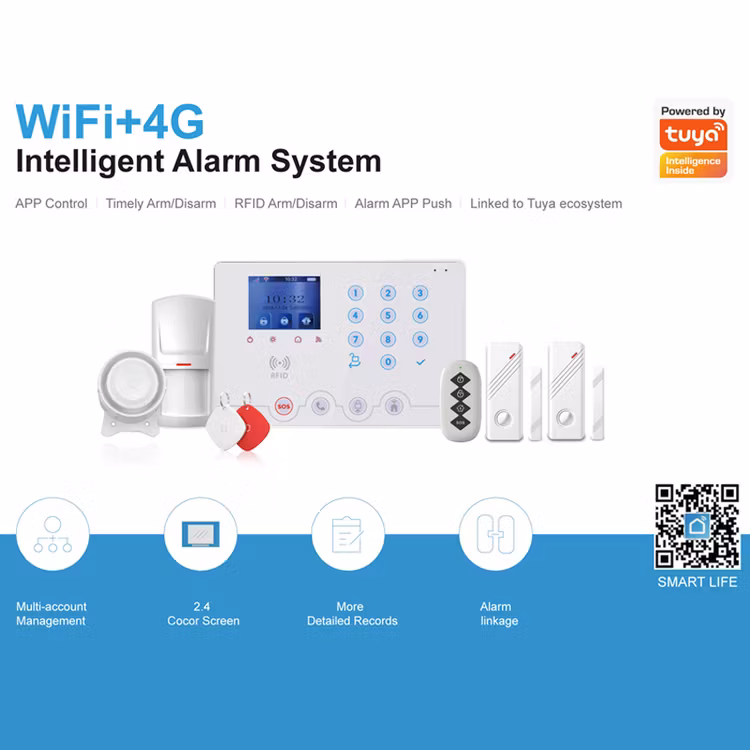

Tuya Smart Life 4G WIFI Smart Security Alarm System Kit

  • 235 kr

Tuya Smart Life 4G WIFI Smart Security Alarm System Kit .Feature:WiFi+4G dual network connection for double guarantee;2.4 inch TFT LCD display;Support 10 r

I lager.
Artikelnummer: 90

Tuya Smart Life 4G WIFI Smart Security Alarm System Kit .


  • WiFi+4G dual network connection for double guarantee;
  • 2.4 inch TFT LCD display;
  • Support 10 remote controllers, 16 RFID;
  • Support 6 groups of alarm phone numbers and 6 groups of alarm SMS
  • numbers;
  • Up to 100 wireless defense zones, support independently custom zone
  • attributes;
  • Support 2 wired defense zones;
  • 24-hour defense zone, ordinary defense zone, home defense zone and
  • delay defense zone are selectable;
  • Built-in RF wireless transmission module to expand wireless sirens;
  • Smart doorbell, APP notifications;
  • APP alarm notifications, accurately locate the alarm defense zone;
  • Record log of door magnetic switch, history recording, APP management
  • Built-in backup battery to prevent sudden power outage;
  • The host prompt can be turned on/off, no need to worry about disturbing
  • your family when back home at deep night;
  • TUYA WiFi solution, APP management, allows to be linked to other smart
  • products of TUYA ecosystem;
  • Multi-account management, sub-permission management (a total of 16
  • accounts, 1 administrator, 15 visitors, These accounts only can be set on
  • the alarm host, APP can not be set);
  • Support device sharing;
  • Classified management of operation logs and alarm records.

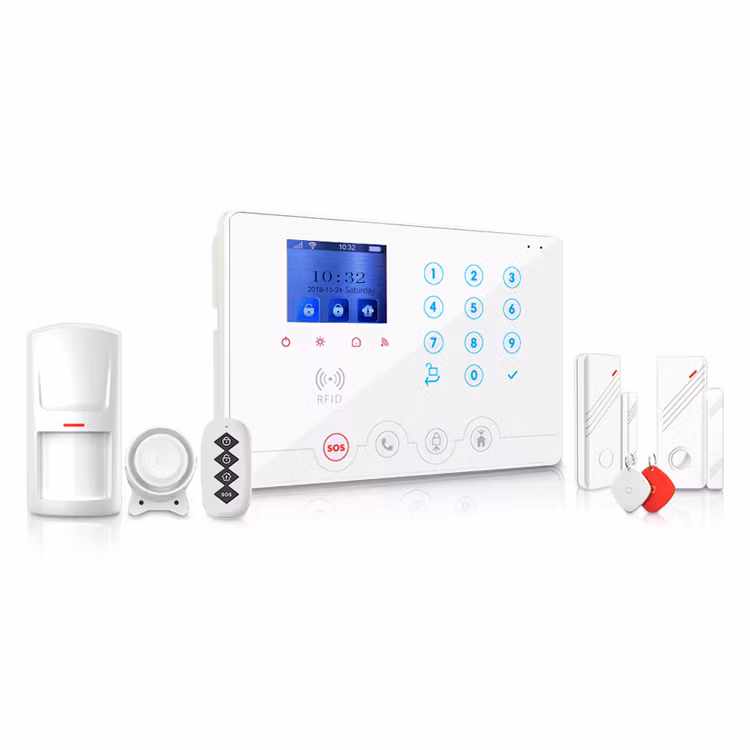

    Tuya Smart Life 4G WIFI Smart Security Alarm System Kit  Standard Package includes:

  1. Smart Security Alarm Host          1PCS
  2. PIR Detector                                  1PCS
  3. Windows/Door Sensor                 2PCS
  4. Remote Controller                        1PCS
  5. Wired Siren                                  1PCS
  6. Power Adapter                             1PCS
  7. User’s Manual                             1PCS

Product qualification :

This WiFi + 4G Smart Tuya Alarm kit has passed the CE, ROHS, FCC certificates and etc.

You choose the following

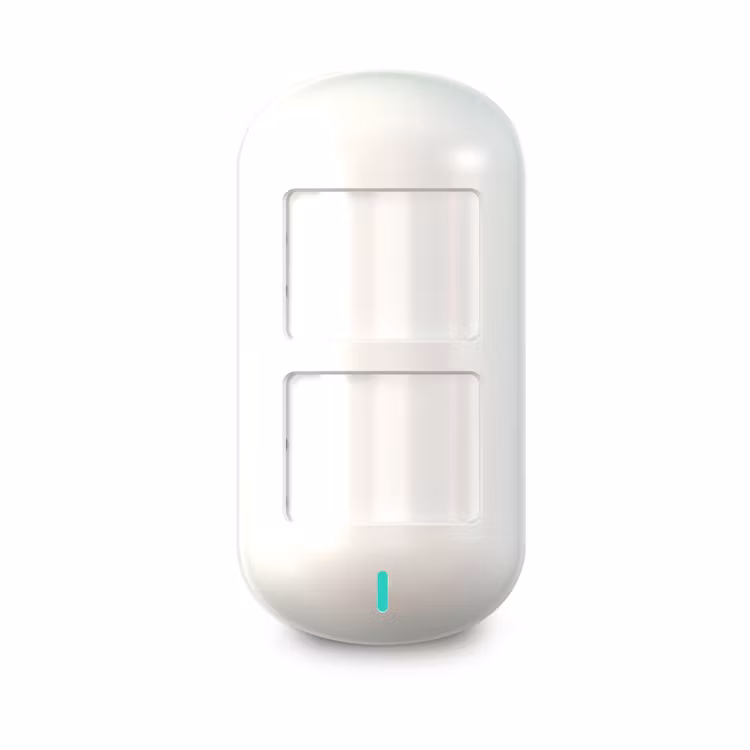

1. Wireless Indoor Pet Immune PIR Detector For Home Security

  • Operating voltage: DC3V (two AA LR6 AM3 1.5V)
  • Quiescent current: ≤ 18uA
  • Working current: ≤15mA
  • Detection range: 7-9 meters
  • Wireless transmission distance: 70 meters (open area)
  • Detection angle: 80 °
  • Detection of walking speed: 0.3 m / s -3 m / s
  • Self-test time: ≤ 60s
  • Alarm indication: red LED light
  • Infrared sensor: 2 pairs of pyroelectric infrared sensor
  • Wireless transmission frequency: 315/433 / 868MHz (optional)
  • Relative humidity: 5% -95% RH (no condensation)
  • Installation: wall or corner installation
  • Installation height: 1.7 m - 2.2 m
  • Storage temperature: -10 ℃ - +65 ℃
  • Detector size: 107x52x41mm (without bracket)
  • Meet the standards: GB10408.1; GB10408.6; GB16796

2. Wireless auto LPG New LCD Gas Detector For Home Security

Itelligently detects leakage of inflammable gas(LPG,coal gas,natural gas and marsh gas etc).

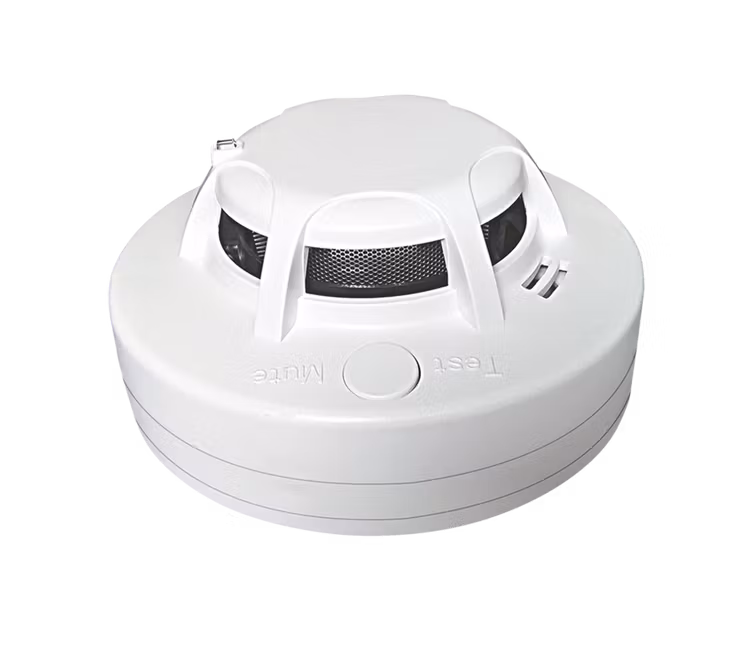

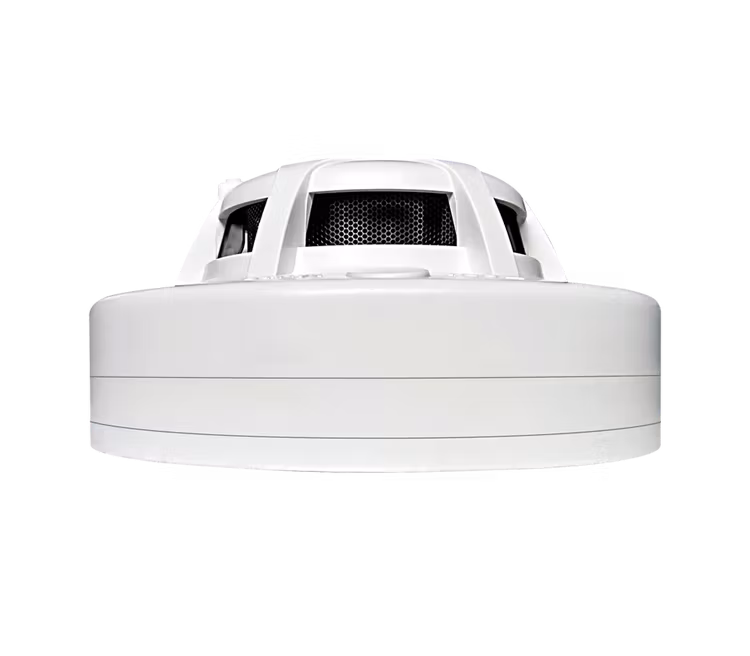

3. Wireless Independent photoinductive Smoke Detector

Photoelectric sensor, with high sensitivity&stabelity and low power consumption.

  • SOS alarm, smoke alarm
  • 5 alarm SMS numbers to receive alarm message
  • SMS content could be changed by users


  1. Power supply:DC9V battery
  2. Working frequency: 433MHz
  3. Siren Volume: 85dB
  4. Size: 128x 41mm

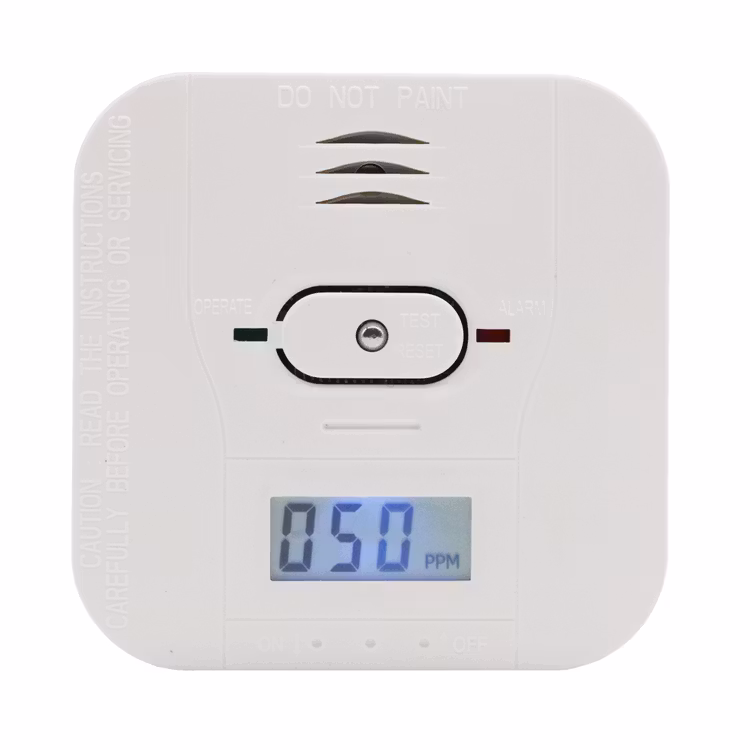

4. Wireless Carbon Monoxide Smoke Heat Alarm Sensor

  • Loud 85 decible alarm.
  • Permanent carbon monoxide & Smoke & Heat Alarm
  • Powered by 2 AAA size batteries.
  • The alarm sound pattern is four short alarm beeps for CO alarm(‘xxx PPM’ will indicate.) and continuous beeps for smoke alarm(‘030’ will indicate.). The red LED will flash while in alarm mode.
  • One ‘chirp’ every 40 seconds is an indication that the battery is low(need replacement).
  • Test/Reset button to test the unit electronics and verifies proper unit operation and reset the unit during alarm.
  • Green and red LED lights that indicate normal operation and alarm status.
  • The unit will sound ‘chirp’ and red LED flashes once as power up.
  • 3 digits LCD is optional. ‘Lb’ on the LCD indicates low battery(need replacement) In normal condition, LCD is not lit. It will be lit as test/reset button pressed and as CO concentration exceeds 40ppm.(for CST503.’ 030’ indicated means there is a smoke alarm or the two systems alarm.
  • ·In 1 minute after the batteries installed, the unit start to detect CO. During the first 1 minute, keep the unit under clear air condition. The unit is of malfunction if the unit sounds all the time. Reinstall the battery to repeat the operation. Until the unit normal.

Green LED: The green LED flashes every 40 seconds to indicate the unit is operating properly.

Red LED: When a dangerous level of carbon monoxide is detected the red LED will flashes and the alarm pattern will sound.

The CARBON MONOXIDE (CO) and smoke alarm monitors the air for the presence of CO or smoke. The alarm will sound and be accompanied by the flashing red LED light when there are high levels of CO or smoke present.

CAUTION: This alarm will only indicate the presence of monoxide or smoke or heat at the sensor. Carbon monoxide gas or smoke or heat may present at other area.


  •  Power Supply:  2 AAA Size Batteries.
  • Sensitivity & Time for CO Alarm:
  • 50ppm, alarming within 90 minutes;
  • 100ppm, alarming within 40 minutes;
  • 300ppm, alarming within 3 minutes
  • Sensitivity for Smoke Alarm: 0.1~1.0dB/m or temperature over around 55 degree C.
  • Standby Current: <80uA;
  • Alarm Current: <80mA
  • Operation Ambient Condition: 5~400C, 20~90%R.H.

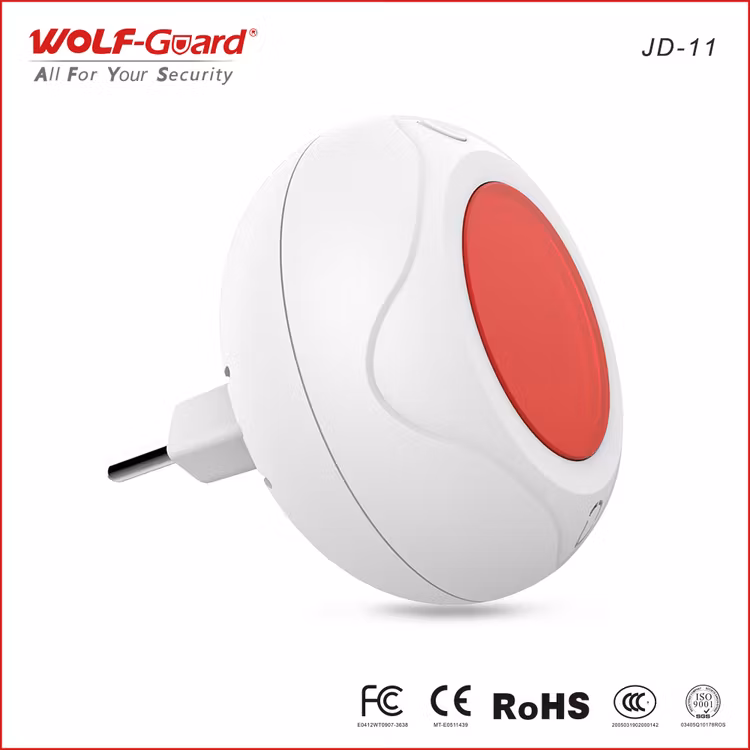

5. Plug-in Indoor Wireless Alarm Siren And Flashing For Security Alarm System

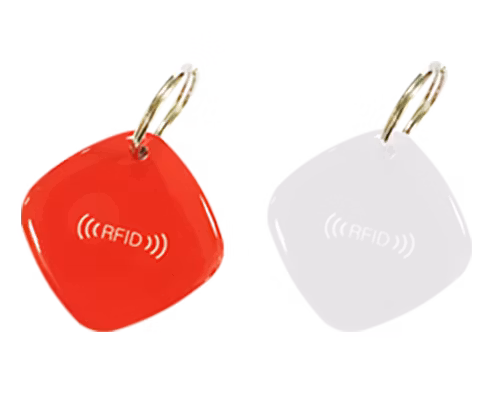

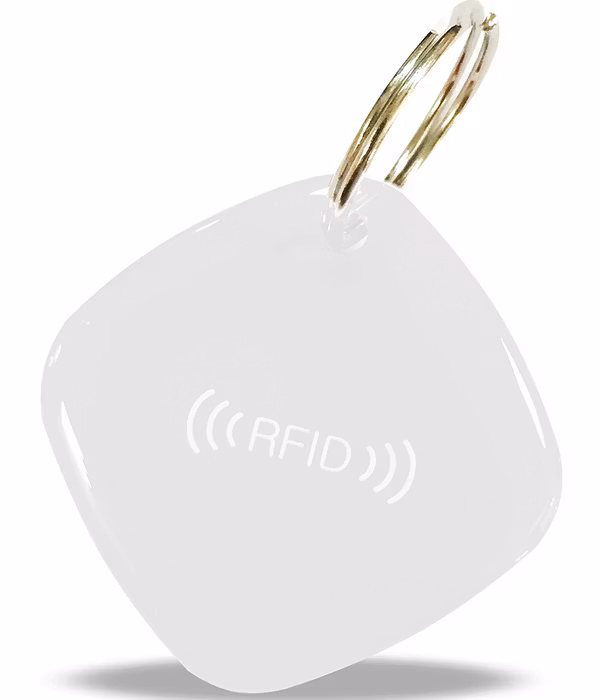

6. Wireless RFID Crad Control With 315/433MHz
