12.3inch Capacitive Touch Screen LCD, High Brightness, 1920×720, HDMI, IPS, Toughened Glass Panel

  • 1 999 kr

12.3inch Capacitive Touch Screen LCD, 1000 Cd/M² High Brightness, 1920×720, HDMI, IPS, Toughened Glass Panel12.3″ HDMI Touch DisplaySize  12.3″Resolution 1

I lager.
Lagersaldo: 2
Artikelnummer: 1178
Dela

12.3inch Capacitive Touch Screen LCD, 1000 Cd/M² High Brightness, 1920×720, HDMI, IPS, Toughened Glass Panel

12.3″ HDMI Touch Display

Size  12.3″


Resolution 1920×720

Display Port HDMI

Display Panel IPS

Viewing Angle 178°

Touch Type Capacitive

Touch Points 10-Points

Touch Port USB

Touch Panel Toughened Glass

OSD Menu Brightness/Contrast

Audio Output1 3.5mm Jack

Audio Output2 4PIN Header

Brightness 1000 cd/m²

Device & System Support



Raspberry Pi

Supports Raspbian, 10-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

Tinker Board 2

Supports Android / Debian

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-points touch, driver free

Connection Examples

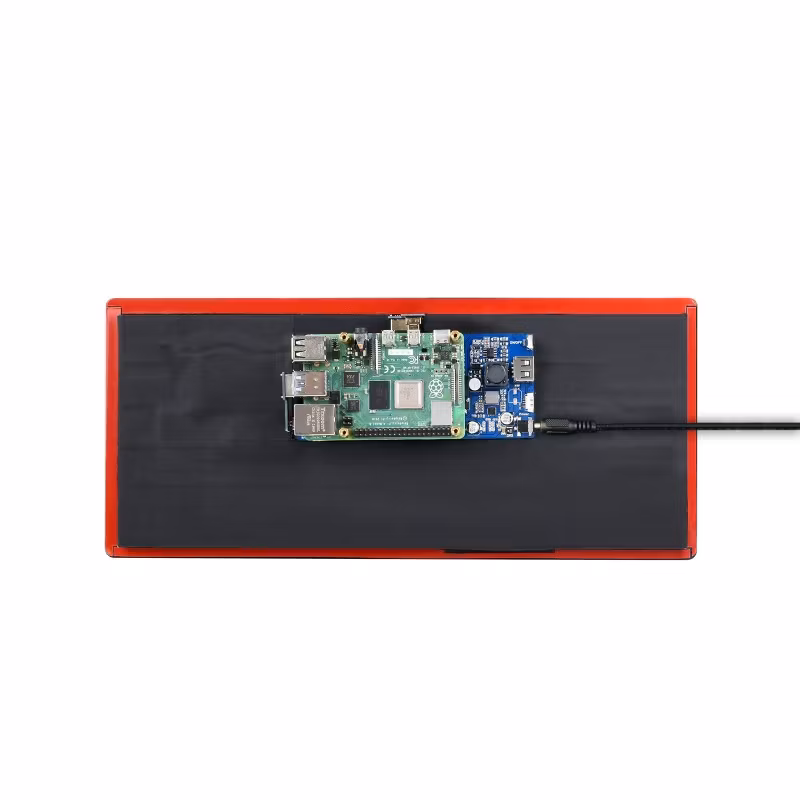

Working With Raspberry Pi 4

Working With Raspberry Pi Pi 3B+

Working With AI Computer Jetson Nano

Working With Mini PC

Working With Tinker Board 2

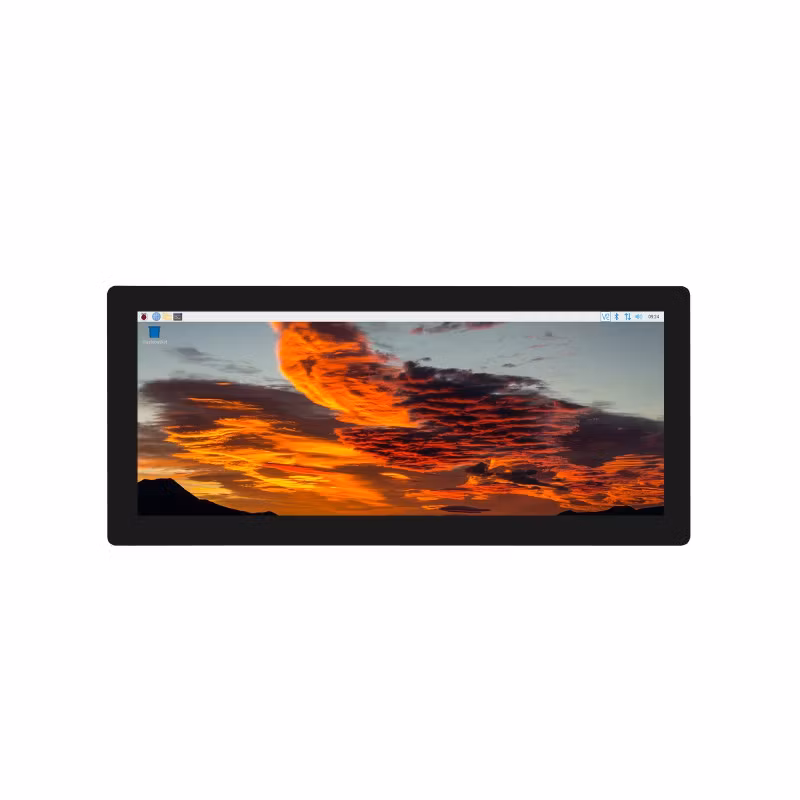

Display

IPS Panel

Touch Control



1) up to 10-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Application Examples

Design Features

Appearance And Dimensions

Wiki: www.waveshare.com/wiki/12.3inch_HDMI_LCD
