2-CH UART To Ethernet Converter

  • 249 kr

2-CH UART To Ethernet Converter, Serial Port Transparent Transmission Module. 2-CH UART TO Ethernet Converter. Serial port transparent transmission Feature

Produkten är tyvärr slut i lager. :(

Artikelnummer: 1206
Dela
  • Information

2-CH UART To Ethernet Converter, Serial Port Transparent Transmission Module. 2-CH UART TO Ethernet Converter. Serial port transparent transmission



Features At A Glance

The 2-CH UART TO ETH provides an easy way to communicate between UART TTL and RJ45 Ethernet, allowing bi-directional transparent data transmission. It is easy to use, along with features like fast data rate, low power consumption, high stability, suits applications such as safety & security, IoT, and so on.

  • Embedded Ethernet MAC and PHY layers
  • Bi-direction transparent data transmission between UART and Ethernet
  • 10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant
  • Auto-MDI/MDIX, detect and switch cable type automatically
  • Supports DHCP auto-obtained IP and DNS domain access
  • Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command
  • Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER
  • 2-CH UART concurrent operation, standalone transparent transmission for each channel
  • Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch
  • Supports virtual serial port software (provided)
  • KEEPALIVE mechanism support
  • Comes with development resources and manual (examples for Pico/Raspberry Pi/Arduino/STM32)

Specifications

OPERATING VOLTAGE3.3V/5VOPERATING CURRENT140mA
OPERATING MODETCP/UDPUART BAUDRATE300bps ~ 921.6Kbps
UART TTL LEVEL3.3V / 5V compatibleSTORAGE TEMPERATURE-55℃ ~ 125℃
OPERATING TEMPERATURE-40℃ ~ 85℃DIMENSIONS53.00 × 22.00mm

Control Interface

Supports Host Boards Including Raspberry Pi/Arduino/STM32...

Application Example

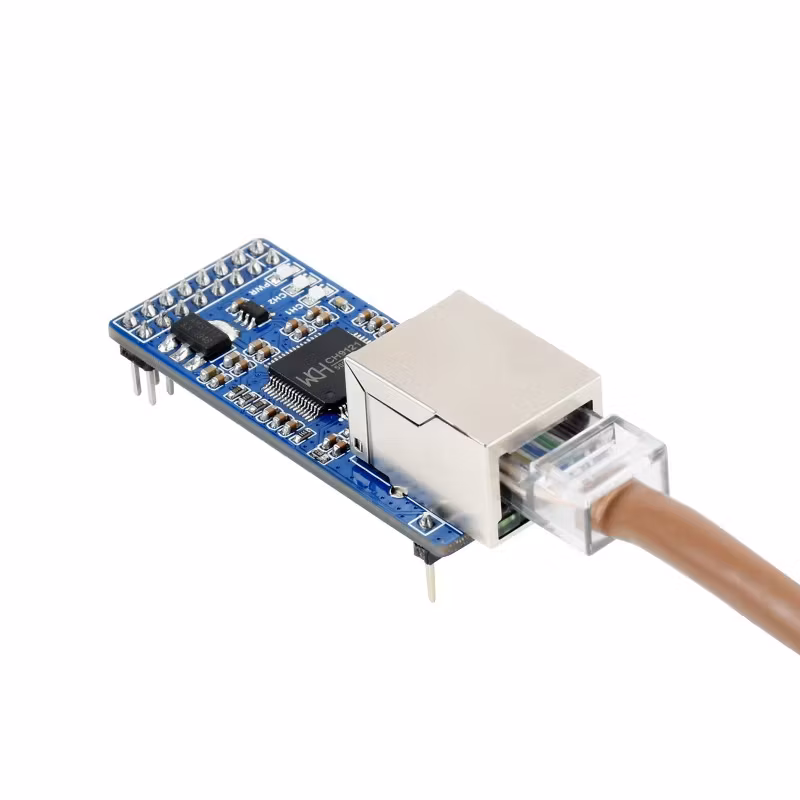

Bi-Direction Transparent Transmission Between UART TTL And Wired Ethernet

Extend The Communication Distance For Serial Devices

Manage Multi Serial Client Devices Remotely Via One Web Server

Manage Serial Server Remotely Via Multi Web Clients

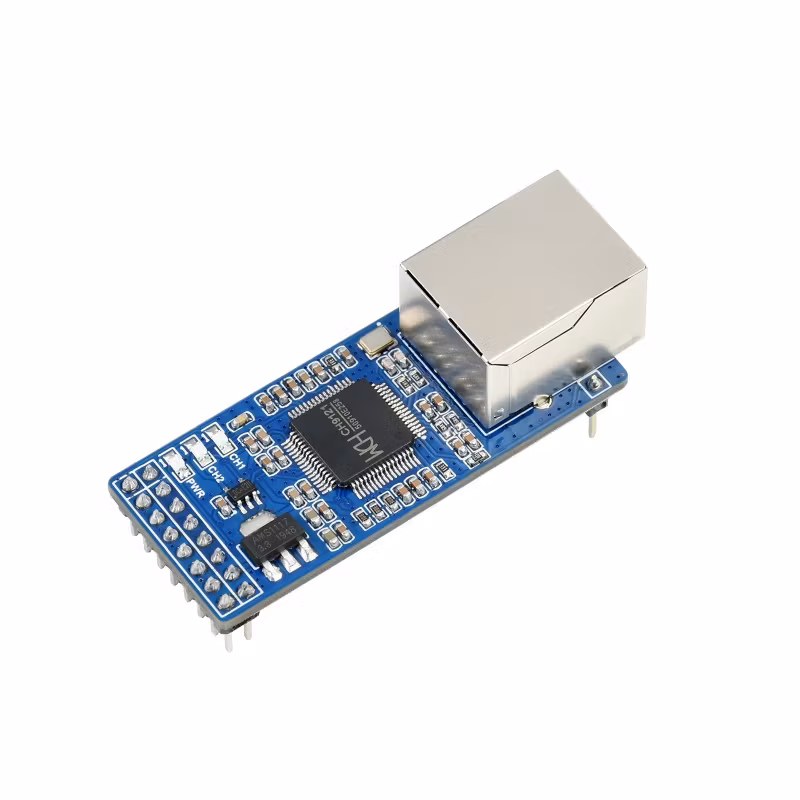

What's On Board

  1. UART 1 connection status indicator
  2. UART 2 connection status indicator
  3. Power indicator
  4. CH9121 control pins



  1. CH9121 driver
  2. AMS1117-3.3V power supply IC
  3. RT9193-18GB power supply IC
  4. Ethernet port

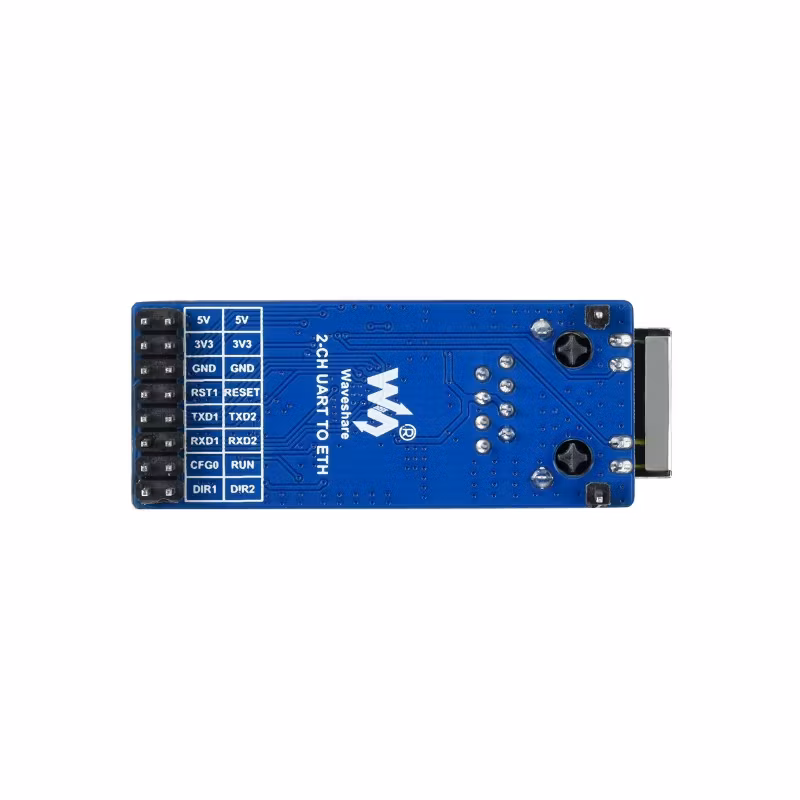

Pinout Definition

5V / 3V3power positive, use any pin of 5V/3.3V pins for power supply
GNDground
RST1external reset input, low active
RESETrestore to factory setting, detected when chip poweron, low active
TXD1asynchronous UART 1 data output (enabled by default)
TXD2asynchronous UART 2 data output (disabled by default)
RXD1asynchronous UART 1 data input (enabled by default)
RXD2asynchronous UART 2 data input (disabled by default)
CFG0UART config mode, low level to enter configuration, high level to exit configuration
RUNOperating status indicating pin
DIR1UART 1 RS485 RX/TX switch (connects to external RS485 controller)
DIR2UART 2 RS485 RX/TX switch (connects to external RS485 controller)

Outline Dimensions

*measured manually, for reference only

Resources & Services

WIKI: 2-CH_UART_TO_ETH

Shipping list

Weight: 0.012 kg

  1. 2-CH UART TO ETH x1
