CAN bus Module (B) for Raspberry Pi Pico, enabling long range communication through SPI

  • 299 kr

CAN Bus Module (B) For Raspberry Pi Pico, Enabling Long Range Communication Through SPICAN Bus Module (B) For PicoEnabling Reliable Long Range Communication For

I lager.
Lagersaldo: 3
Artikelnummer: 23775
Dela
  • Information

CAN Bus Module (B) For Raspberry Pi Pico, Enabling Long Range Communication Through SPI

CAN Bus Module (B) For Pico

Enabling Reliable Long Range Communication For Raspberry Pi Pico With Other Devices

Comes with online development resources and manual


Features At A Glance

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • Features CAN function, adopts SPI interface CAN controller MCP2515 with transceiver SIT65HVD230DR
  • Comes with online development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

OPERATING VOLTAGE3.3V~5V
CAN CONTROLLERMCP2515
CAN TRANSCEIVERSIT65HVD230DR
COMMUNICATION BUSSPI
BAUDRATE5K~1000Kbps


Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

* Raspberry Pi Pico is NOT included.

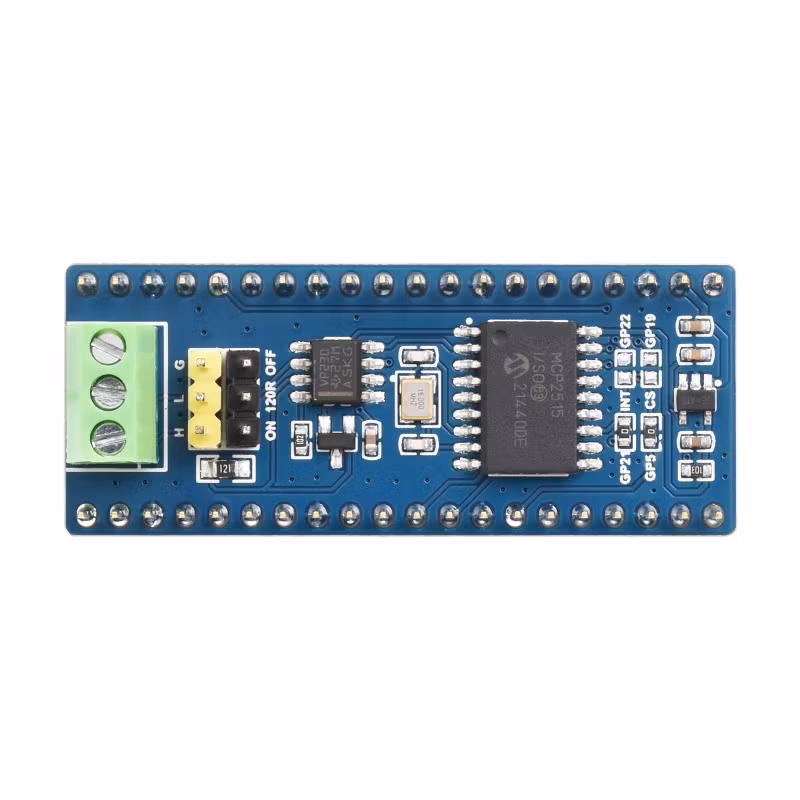

What's On Board


  1. RT9013-33GB
    500mA low dropout, low noise, ultra-fast LDO
  2. MCP2515
    Second generation standalone CAN controller
  3. SIT65HVD230DR
    3.3V CAN transceiver



  1. Terminal resistor selection
    ON: connected to 120R matching resistor
    OFF: disconnected from 120R matching resistor
  2. CAN bus terminal

Pinout Definition

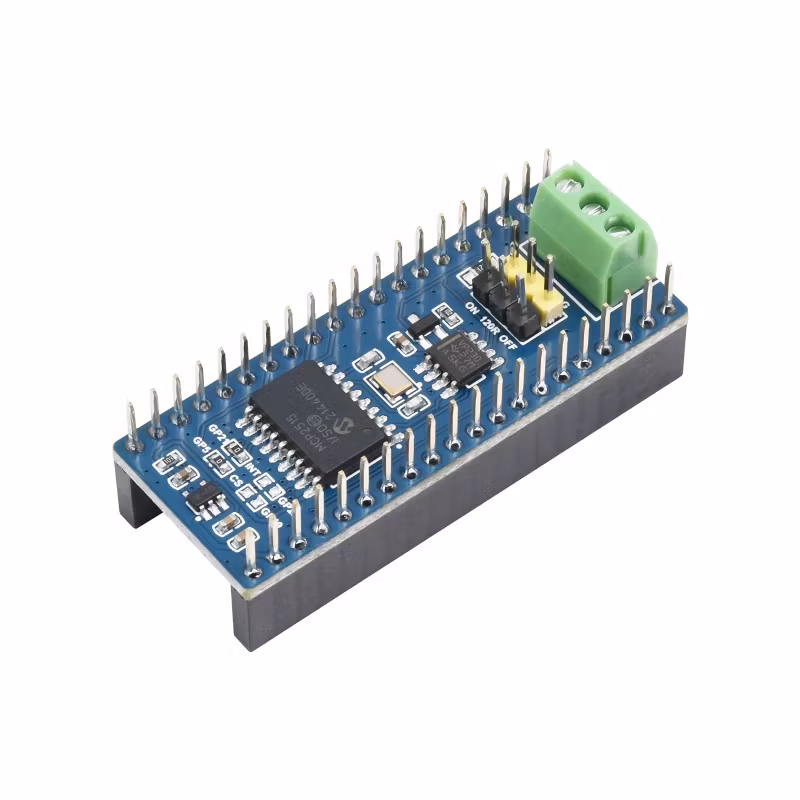

Product Show



Outline Dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/Pico-CAN-B


Shipping list

Weight: 0.011 kg

  1. Pico-CAN-B x1
