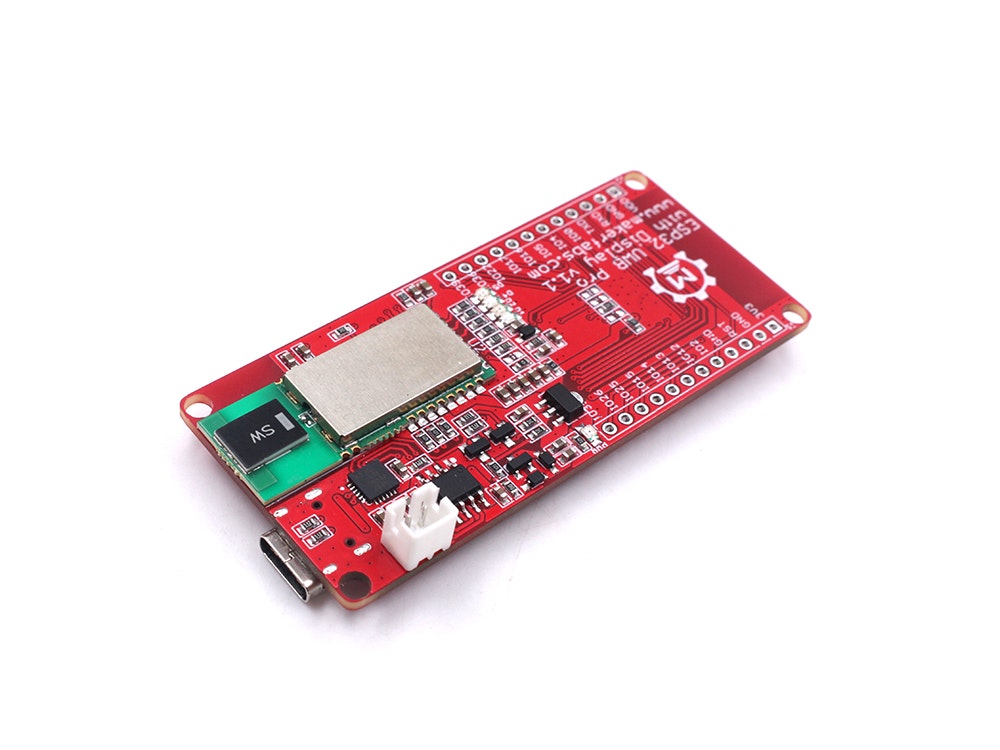

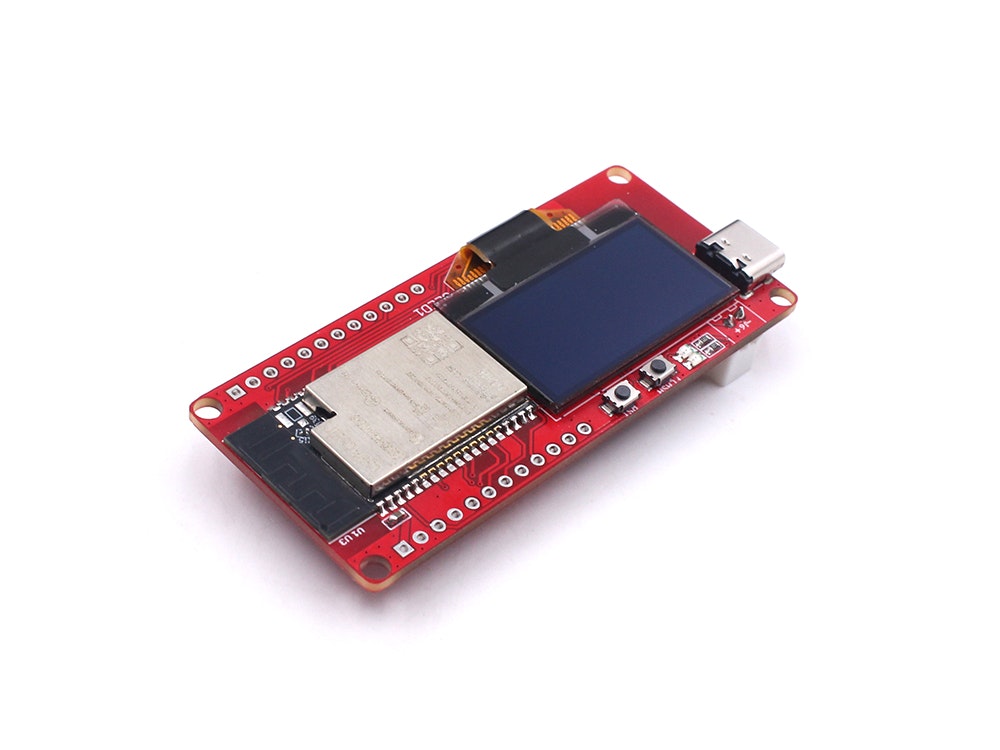

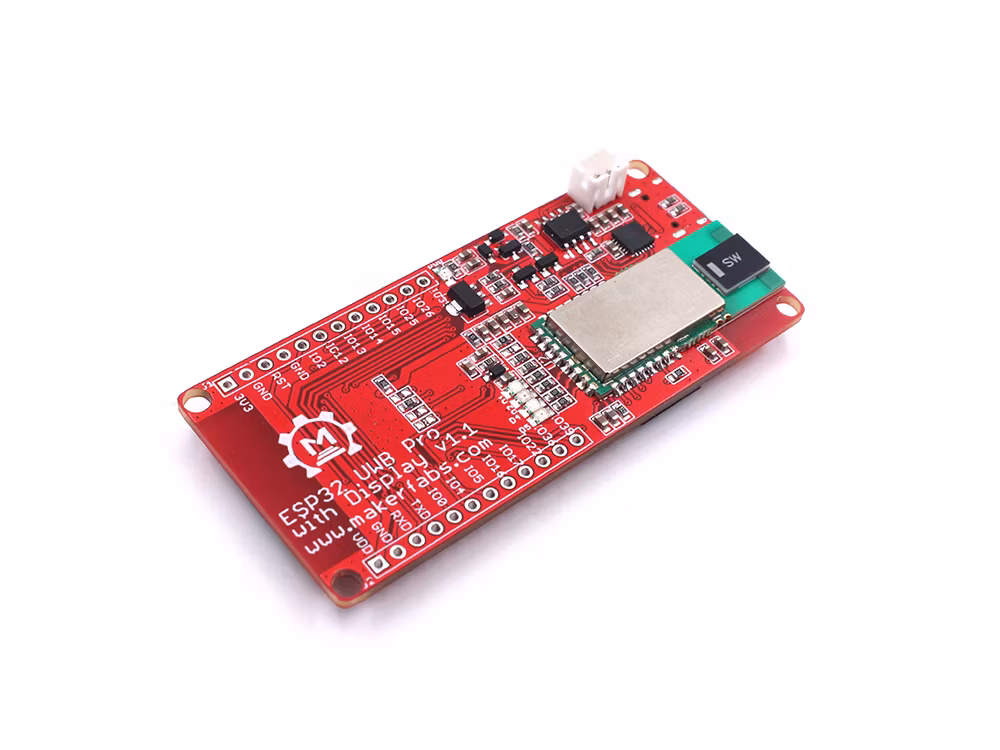

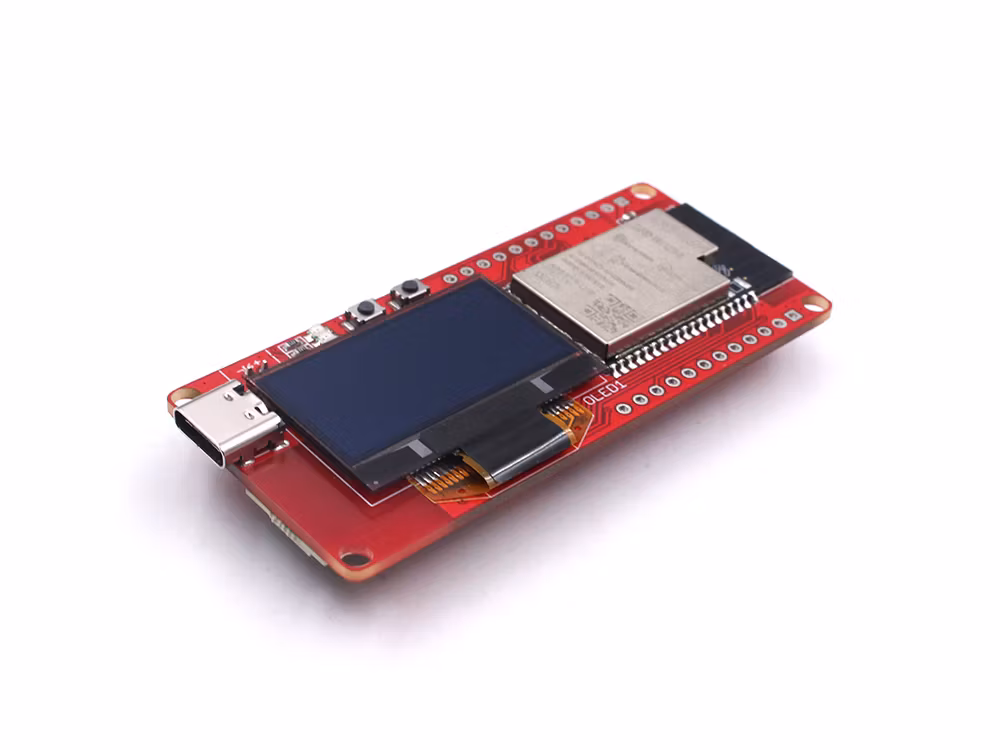

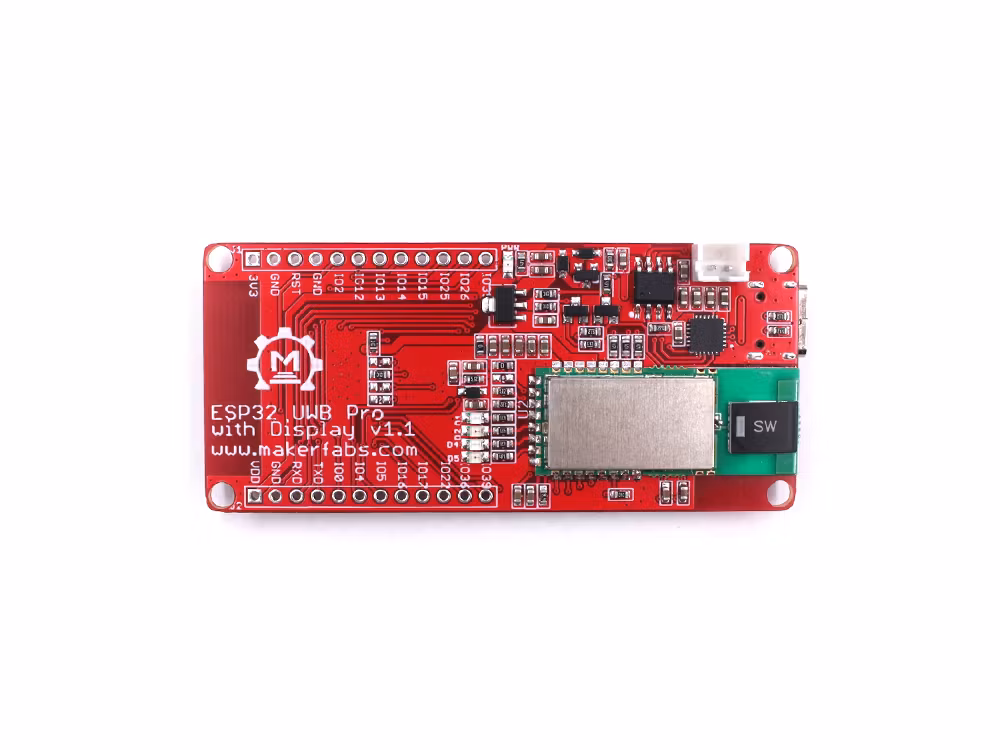

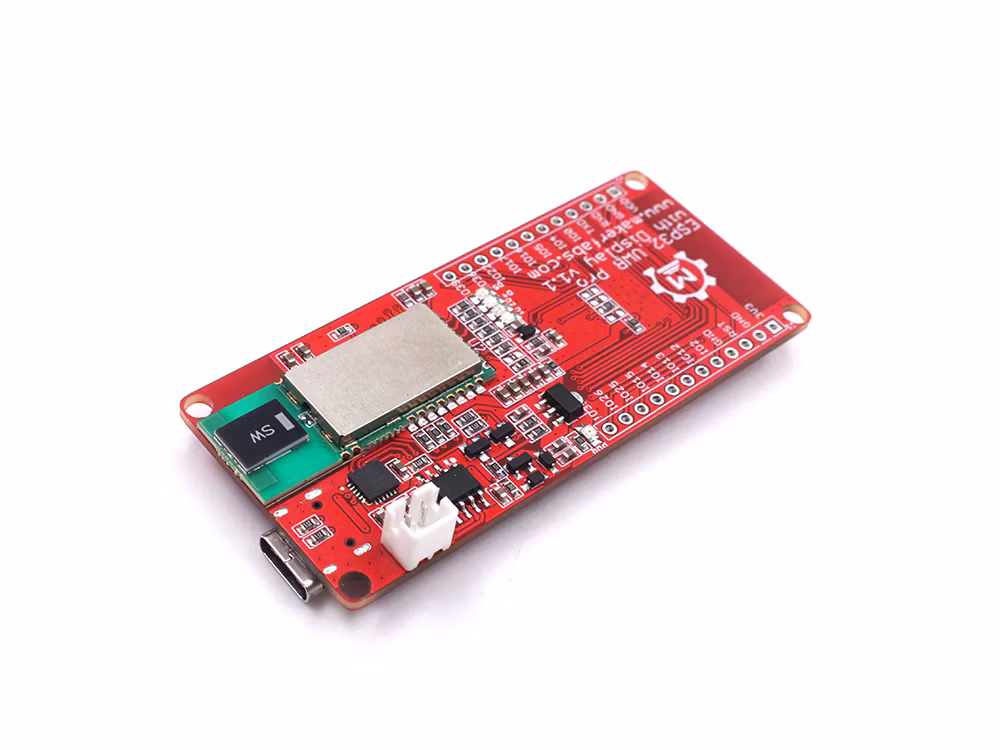

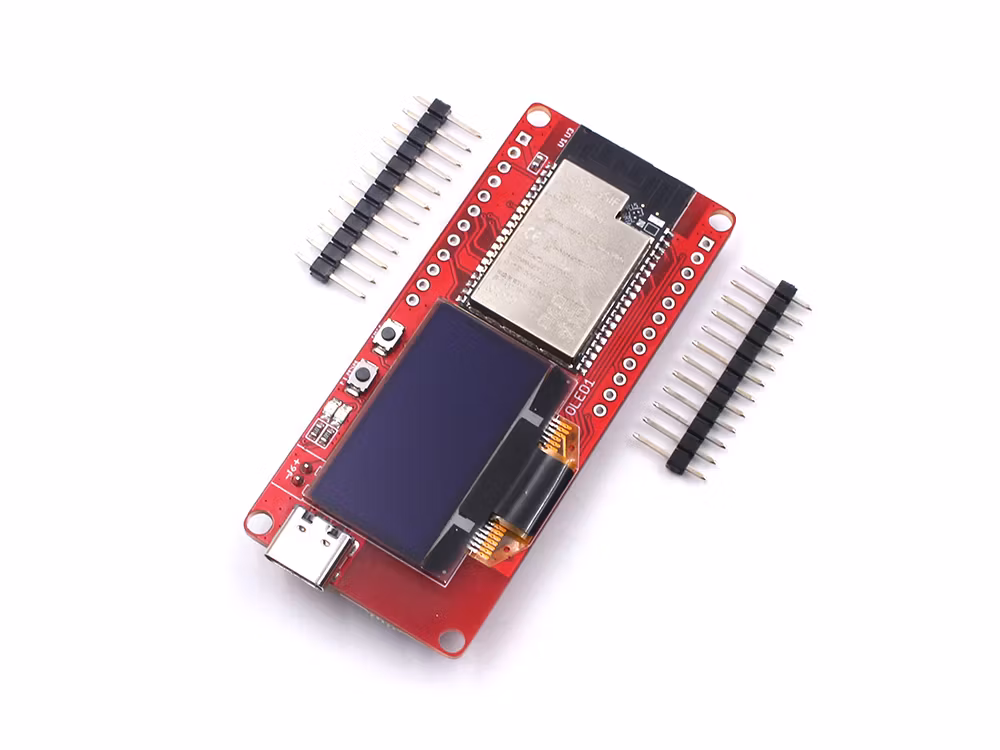

ESP32 UWB Pro with Display

999 kr

Ultra-wideband (UWB) is a short-range, wireless communication protocol that operates through radio waves, enables secure reliable ranging and precision sensing,

Lagersaldo: 1

Artikelnummer: 1226

Dela

Information

Ultra-wideband (UWB) is a short-range, wireless communication protocol that operates through radio waves, enables secure reliable ranging and precision sensing, creating a new dimension of spatial context for wireless devices.

This new ESP32 UWB pro with display is the updated version of ESP32 UWB Pro, with the following new spec:

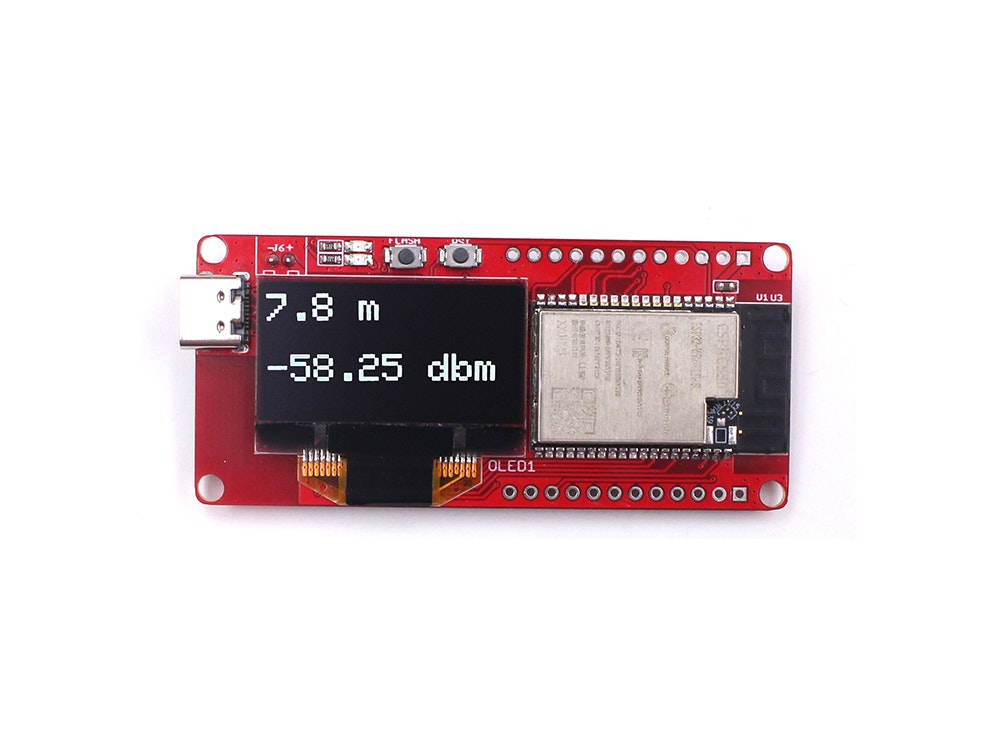

● On-board OLED, 1.3” 128*64, so the distance results can be directly displayed;

● Lipo battery charger& connector, so this module can work separately with batteries;

● Update UWB position, so the module can be directly installed into a case;

ESP32 UWB Comparison:

/	UWB Basic	UWB Pro	UWB Pro with Display	UWB DW3000
CPU	ESP32-WROOM/WROVER	ESP32-WROVER	ESP32-WROVER	ESP32-WROOM/WROVER
Core UWB	DW1000	DW1000	DW1000	DW3000
Screen	N	N	Y	N
Measuring distance(m)	45	200	200	45
Battery Socket	N	N	Y	N
UWB Channel	2/5	2/5	2/5	5/9
Apple Interoperable	N	N	N	Y
Suitable for	Normal Testing	Long distance needed	Long distance needed	Product development
Prices($)	$39.80/$41.80	$51.84	$54.80	$43.80/ $45.80

Features:

Decawave DW1000 for precision tracking
ESP32 for fast & powerful applications
Support Wifi, Bluetooth
Arduino compatible& demos
Micro-USB connector
Board USB supply voltage range: 4.8~5.5V, 5.0V Typical
On board 1.3 inch OLED display
Battery Charger/ Connector

Reference:
