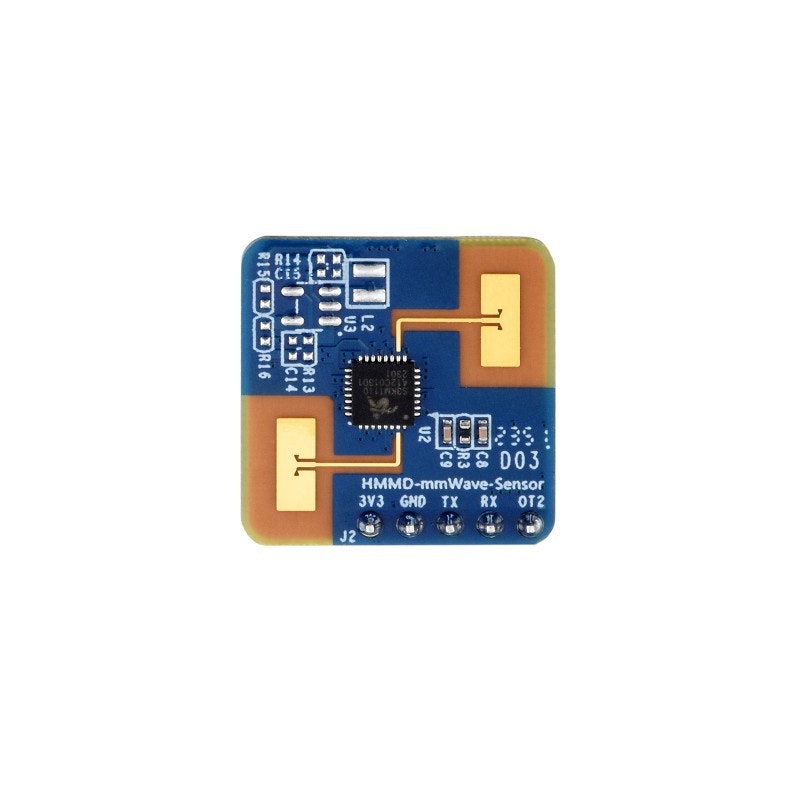

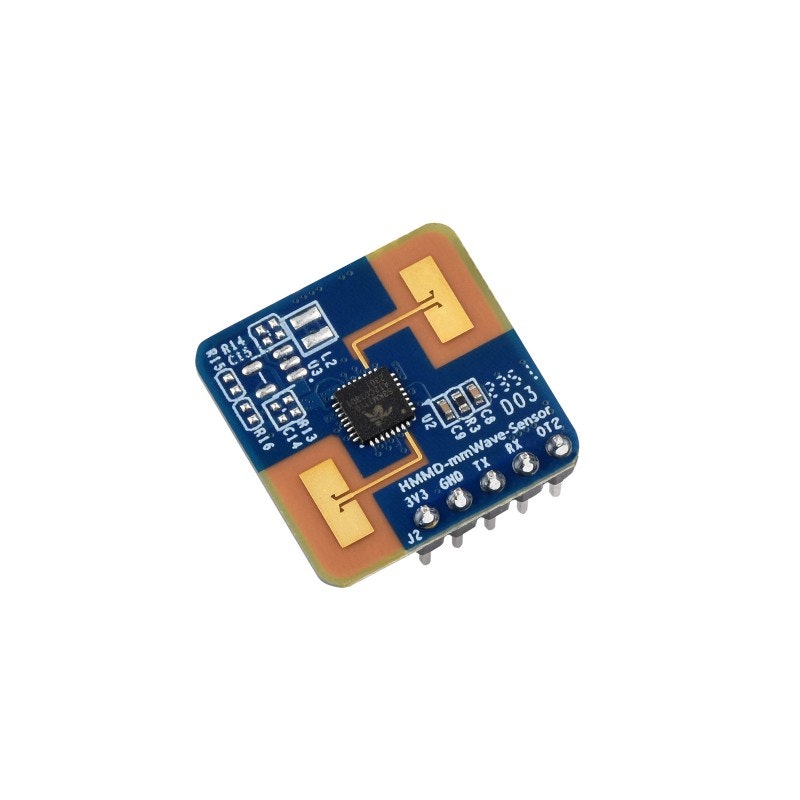

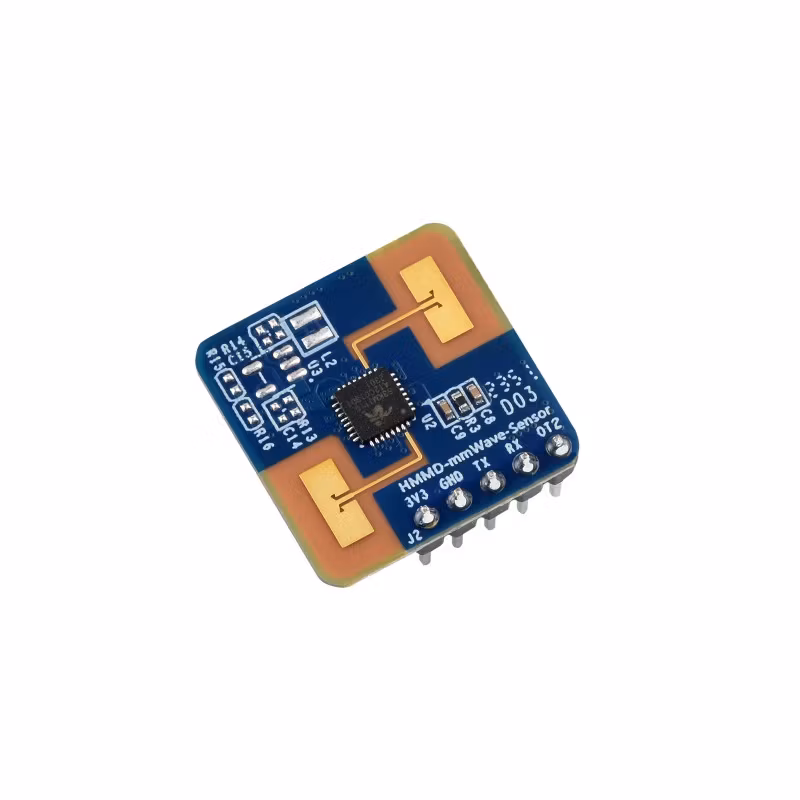

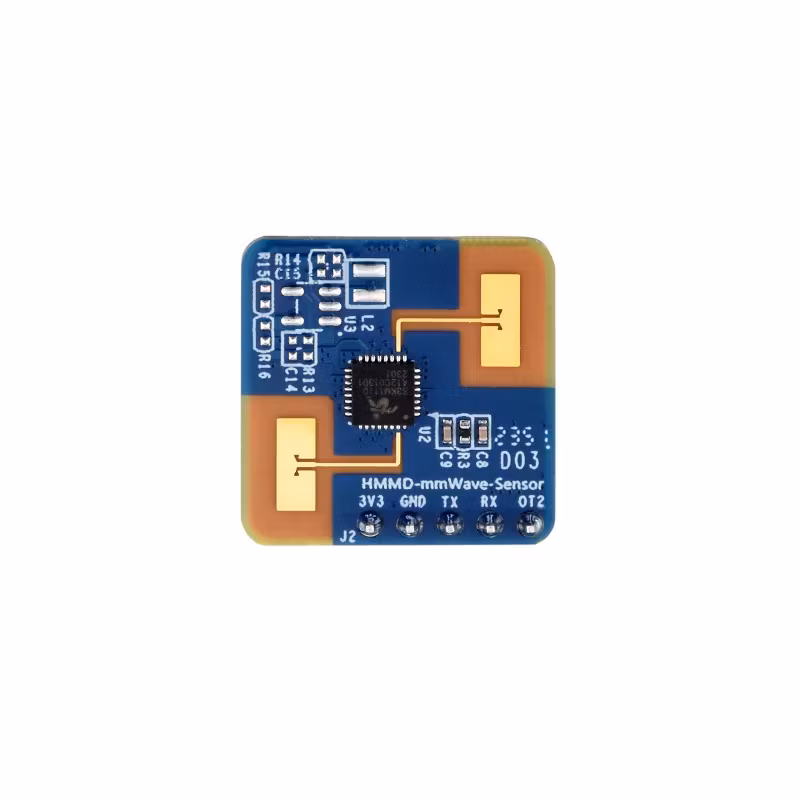

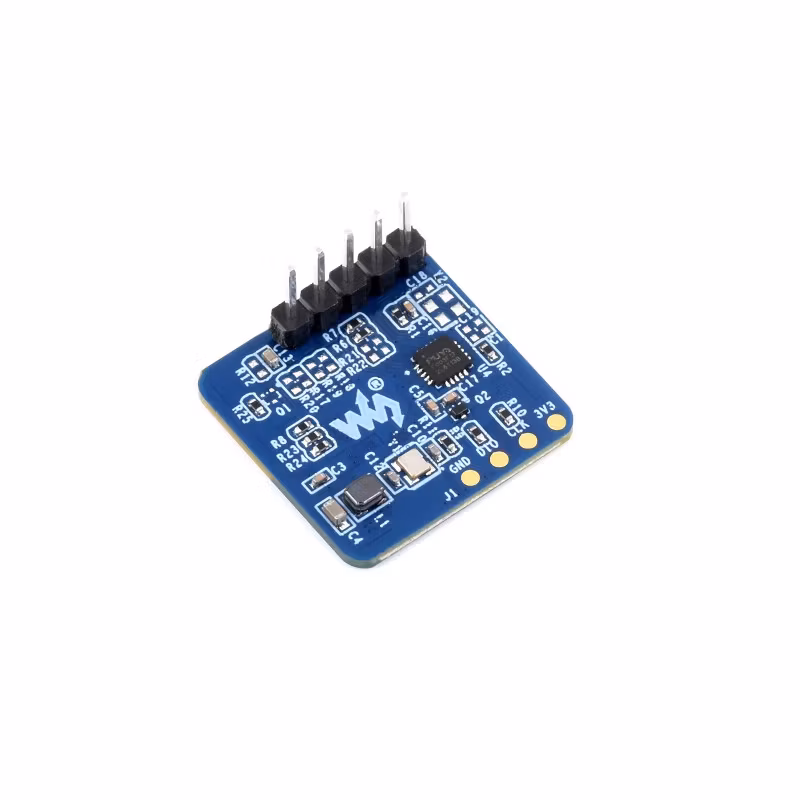

Human Micro-Motion Detection mmWave Sensor, 24GHz mmWave Radar, Based On S3KM1110, Adopts FMCW Technology

  • 149 kr

Human Micro-Motion Detection MmWave Sensor, 24GHz MmWave Radar, Based On S3KM1110, Adopts Frequency Modulated Continuous Wave (FMCW) Technology, Compact Size An

I lager.
Lagersaldo: 16
Artikelnummer: 26536
Dela
  • Information

Human Micro-Motion Detection MmWave Sensor, 24GHz MmWave Radar, Based On S3KM1110, Adopts Frequency Modulated Continuous Wave (FMCW) Technology, Compact Size And Easy Integration



Features At A Glance

The HMMD-mmWave-Sensor is a human micro-motion sensor, adopts Frequency Modulated Continuous Wave (FMCW) technology to detect and identify moving, standing, and motionless human body. Combining radar signal processing with accurate human detection and ranging algorithms, supports configuring the sensibility for each range independently to improve anti-interference performance. Compact size, low power consumption, and easy integration, it can be widely used in AIoT scenarios such as Smart Home, Intelligent Security, Smart Business, and Intelligent Lights, etc.

  • Based on AIoT mmWave Sensor SoC S3KM1110, onboard high performance 24GHz 1T1R antennas
  • Onboard MCU and built-in human micro-motion sensing algorithm for accurate detecting of moving, micro-motion, and standing human
  • Provides UART communication protocol, supports configuring sensing distance range, sensitivity, and absence report delay, easy to operate
  • Supports UART port and GPIO header output, for connecting to host boards such as Raspberry Pi and Arduino
  • Wide-range moving human body sensing distance, supports top-mounted and wall-mounted detection
  • Comes with online resources and manual (examples for Raspberry Pi/RP2040/Arduino/ESP32/Jetson Nano)

Specifications

SYSTEM PERFORMANCE
HARDWARE
Frequency band
24~24.25GHz
Bandwidth
0.25GHz
Modulation
FMCW
Power supply
3.3V
Output interface
UART & GPIO
UART baudrate
115200bps (default)
Environment temperature
-40~85℃
Dimension
20×20mm
Detection range (wall-mounted)
Moving human target: 10m; Micro-motion human target: 6m
Detection range (top-mounted)
Moving human target: 5m; Micro-motion human target: 4m
Detection distance resolution
0.7m
Detection angle
±60°
Detection accuracy
0.15m (moving target within 10m radial distance from the radar)
Average operation current
50mA
Data refresh cycle
100ms

Pinout Definition

Compatible With Multiple Platforms

Provides Demo And User Manual For Raspberry Pi / Raspberry Pi Pico / Jetson Nano / ESP32 / Arduino, Easier To Develop And Integrate, And Better Expansibility

Visual Host Support

It Is Recommended To Used With USB To UART Module, Easily Connect To Host Software For Configuration And Debugging

Direction & Detection Range

Installation & Detection Range

Top-Mounted - Detection Rang Diagram



Wall-Mounted - Detection Range Diagram



Application Scenarios

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/HMMD_mmWave_Sensor

Shipping list

Weight: 0.002 kg

  1. HMMD-mmWave-Sensor x1
