Luckfox Pico Ultra RV1106 Linux Micro Development Board Wifi PoE Kit

  • 499 kr

Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, Optional For WiFi And PoE Module Version O

I lager.
Artikelnummer: 1333

Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, Optional For WiFi And PoE Module

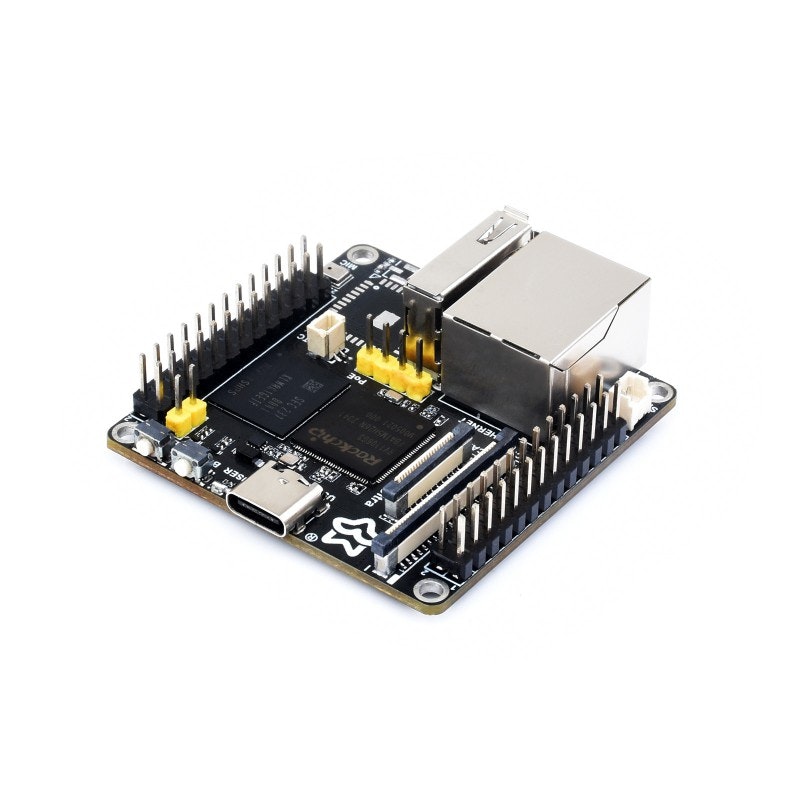

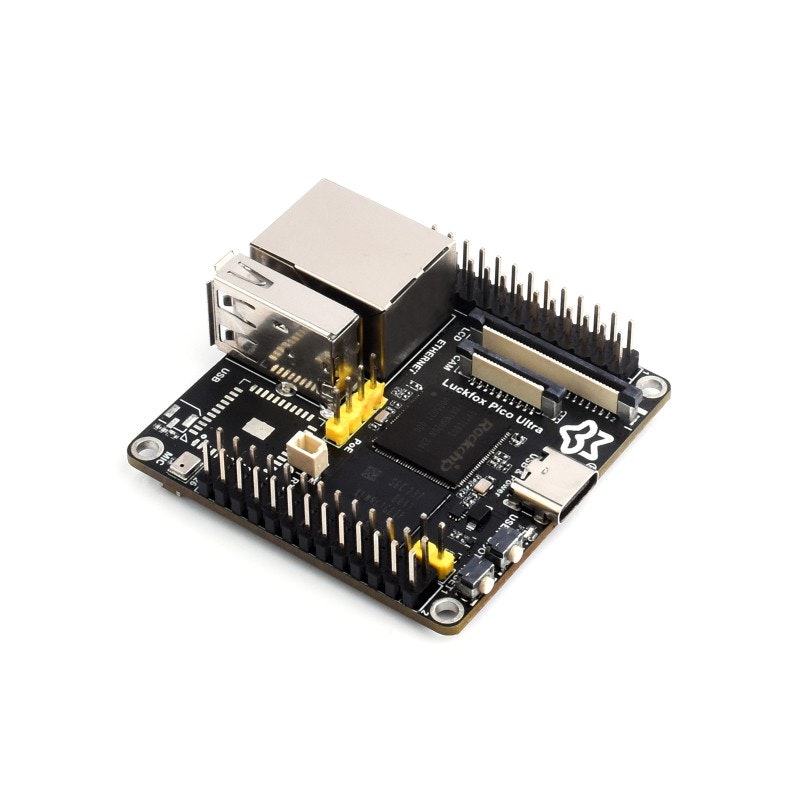

Luckfox Pico Ultra series, front view Luckfox Pico Ultra series, features

Version Options

Luckfox Pico Ultra series, version options

Highly Integrated And Powerful Performance

Integrates CPU, NPU, ISP And Other Processors

Luckfox Pico Ultra series, integrates RV1106

  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
  • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
  • Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
  • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size
  • Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths

WiFi 6 And Bluetooth Module

Onboard 2.4GHz WiFi 6 And BT5.2/BLE Bluetooth Module, Providing Stable Connection With Efficient Transmission

Luckfox Pico Ultra series, onboard WiFi 6 and Bluetooth module

Reserved PoE Module Header

More Flexible For Power Supply

Luckfox Pico Ultra series, onboard reserved PoE module header

Optional For PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply For Luckfox Pico Ultra Board In Only One Ethernet Cable

Luckfox Pico Ultra series, optional for PoE Module Luckfox Pico Ultra series, supports PoE power supply

* the PoE module is optional, and the switch in the picture above is NOT included.

Pin Definition

Luckfox Pico Ultra series, pin definition

What's On Board

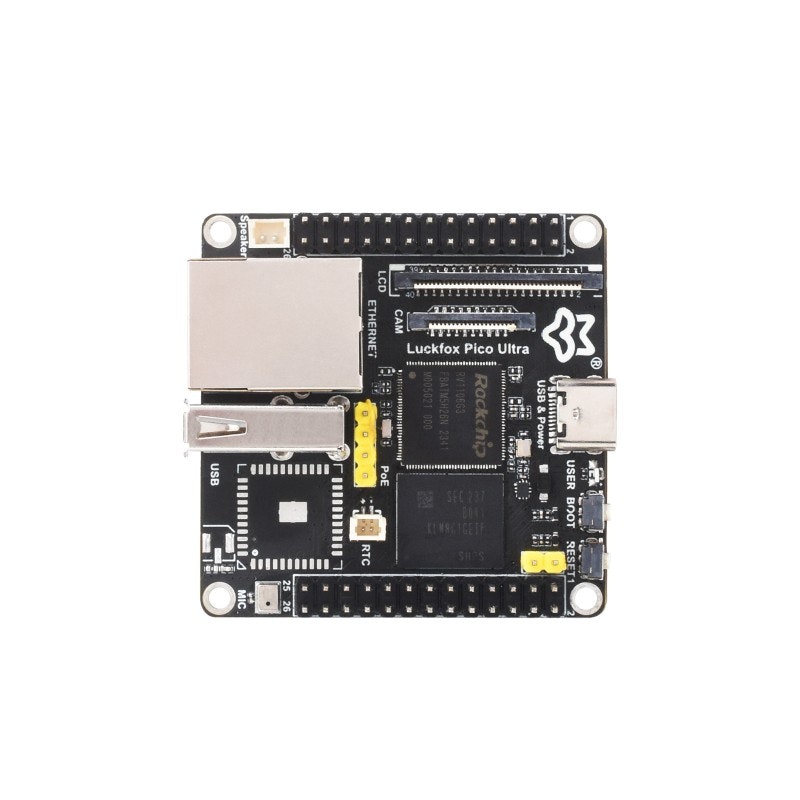

Luckfox Pico Ultra series, onboard components

  1. USB Type-C connector
    for power supply and program burning
    for indicating system operation status in the default image, programmable indicator
  3. BOOT button
    Press it when powering on or resetting to enter download mode
  4. RESET button
  5. GPIO header
  6. Onboard microphone
  7. Antenna connector
  8. WIFI/Bluetooth module
    2.4G WiFi 6; BT5.2/BLE Bluetooth module
  9. USB-A Interface
    Switching with USB Type-C by chip, enabled automatically for USB communication when USB-C is not connected


  1. RJ45 100M Ethernet port
  2. Speaker header
    MX1.25 2P connector, supports 8Ω 1W speaker
  3. RGB LCD Interface
  4. CSI camera interface
    MIPI CSI 2-lane
  5. RV1106G3
    Vision processor SoC with built-in ARM Cortex-A7 core
  6. KLM8G1GETF-B041
    8GB EMMC
  7. RTC battery connector
  8. PoE module header
  9. PoE module / external power supply header
    for connecting external 5V power supply or PoE module power supply

Outline Dimensions

Luckfox Pico Ultra series, outline dimensions


Shipping list

Luckfox Pico Ultra W PoE Kit

  1. Luckfox Pico Ultra W x1
  2. Luckfox PoE module x1
  3. IPX 2.4G 2DB antenna x1
  4. Screws pack x1


Luckfox Pico Ultra W PoE Kit
