Industrial serial server, LUCKFOX RS485 to RJ45 Ethernet, TCP/IP to serial, rail-mount support, with POE function
- 499 kr
Industrial serial server, LUCKFOX RS485 to RJ45 Ethernet, TCP/IP to serial, rail-mount support, with POE functionThis is a RS485 device data acquisitor / IoT ga
Lagersaldo:
5
Artikelnummer:
23466

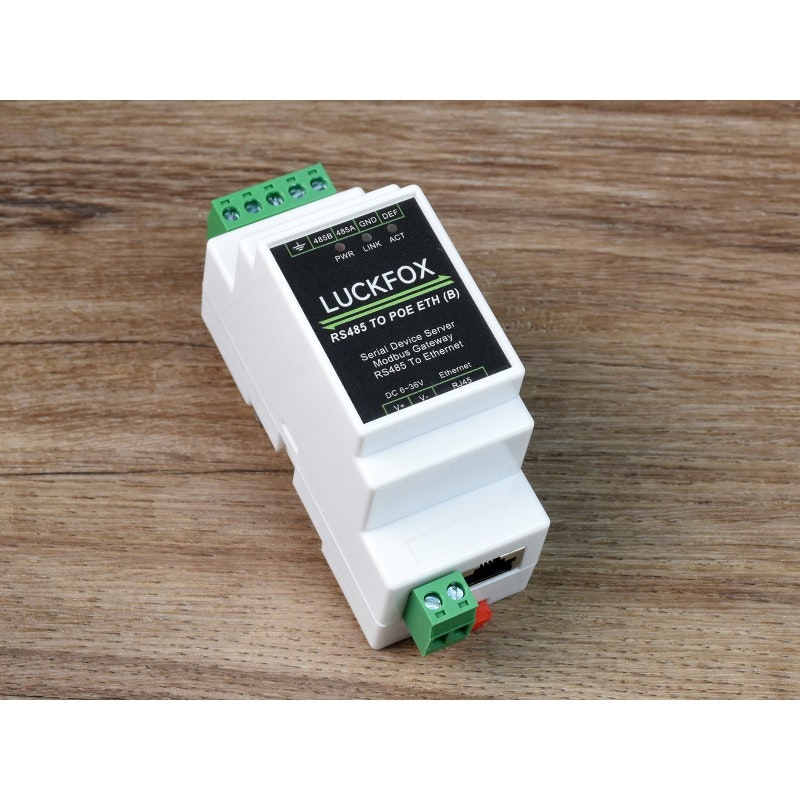

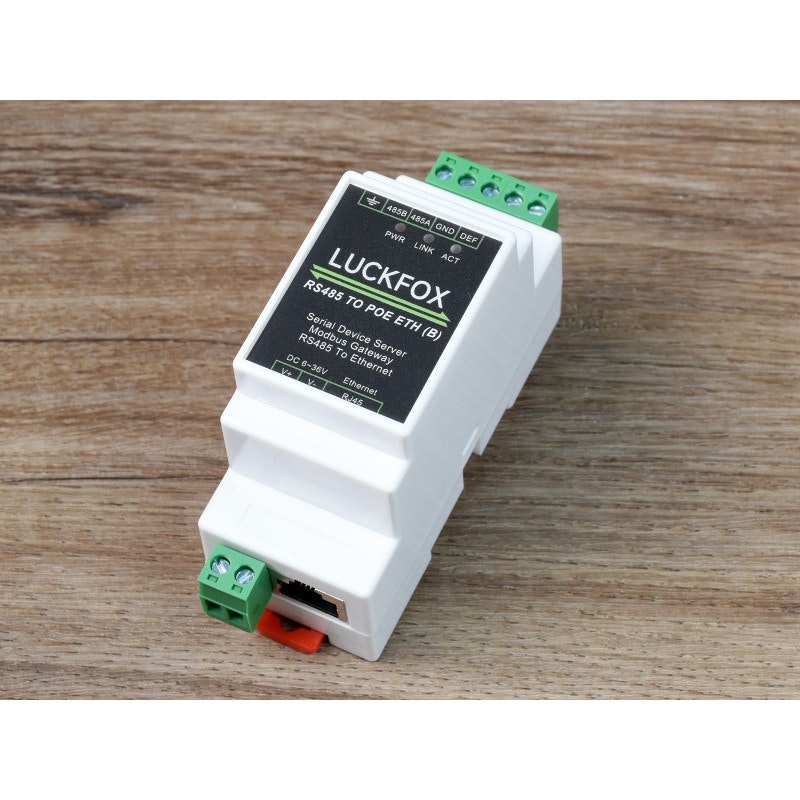

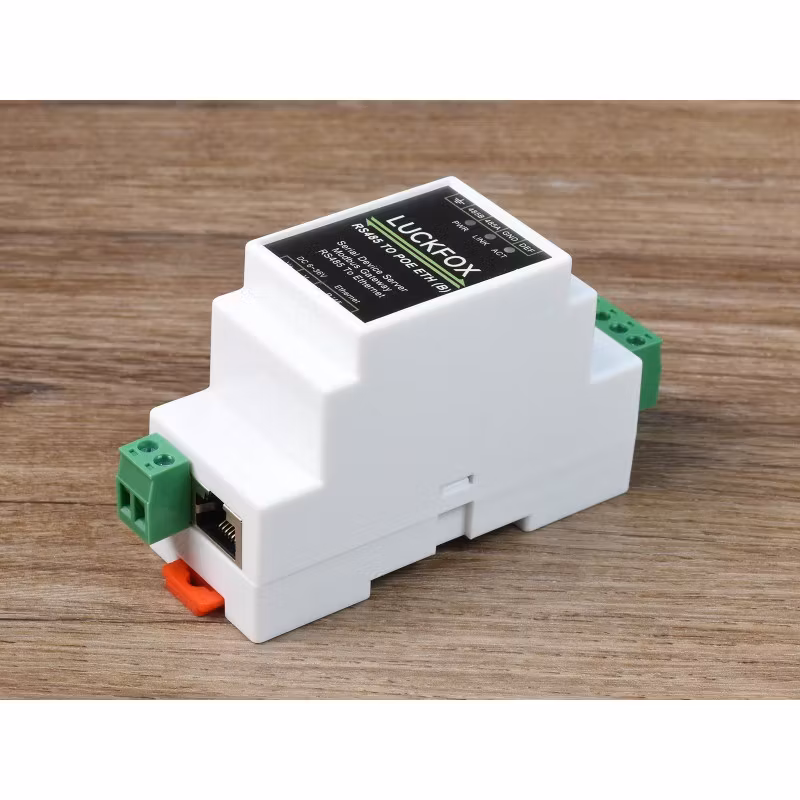

Industrial serial server, LUCKFOX RS485 to RJ45 Ethernet, TCP/IP to serial, rail-mount support, with POE function
This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and Ethernet port(POE function is optional), uses screw terminals for power input. Rail-mount flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
- Bi-Directional Transparent Data Transmission Between RS485 And Ethernet

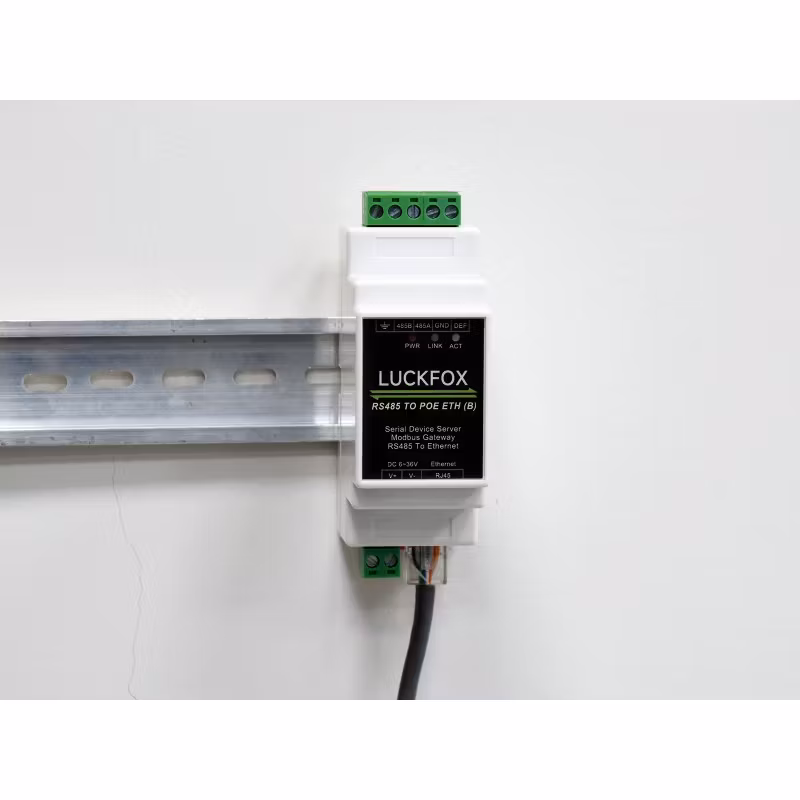

- Combine Multi Rail-Mounted Serial Server Together
- Suitable For Modbus Gridding Upgrate
- NTP Protocol Support
- Multi Configuration Methods
Specifications
| ENVIRONMENT REQUIREMENT | ||
|---|---|---|
| SOFTWARE | ||
| SERIAL SPECIFICATION | ||
| COMMUNICATION | ||
| PRODUCT | LUCKFOX RS485 TO POE ETH (B) | |
| Product Type | Serial server, Modbus Gateway, MQTT Gateway | |
| Basic Function | Bi-directional transparent data transmission between RS485 and Ethernet | |
| Communication interface | RS485 port x 1, Ethernet port x 1 | |
| Power supply | 6 ~ 36V DC screw terminal, or PoE port | |
| Isolation Protection | Power isolation, Signal isolation | |
| Ethernet | PoE network port, support IEEE 802.3af standard | |
| 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection | ||
| Serial port | Isolated RS485 | |
| Baudrate | 300 ~ 115200 bps | |
| Parity bit | none, odd, even, mark, space | |
| Data bit | 5 ~ 9 bits | |
| Flow control | N/A | |
| Protocol | ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS | |
| Configuration | host, web browser, device management functions library | |
| Communication method | TCP/IP direct communication, VCOM | |
| Operating mode | TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast | |
| Operating temperature | -40℃ ~ 85℃ | |
| Storage temperature | -45℃ ~ 125℃ | |
| Humidity range | 5% ~ 95% relative humidity | |
| Dimensions | L × W × H: 87 × 36 × 59 mm | |
Shipping list
Weight: 0.077 kg
- LUCKFOX RS485 TO POE ETH (B) x1
