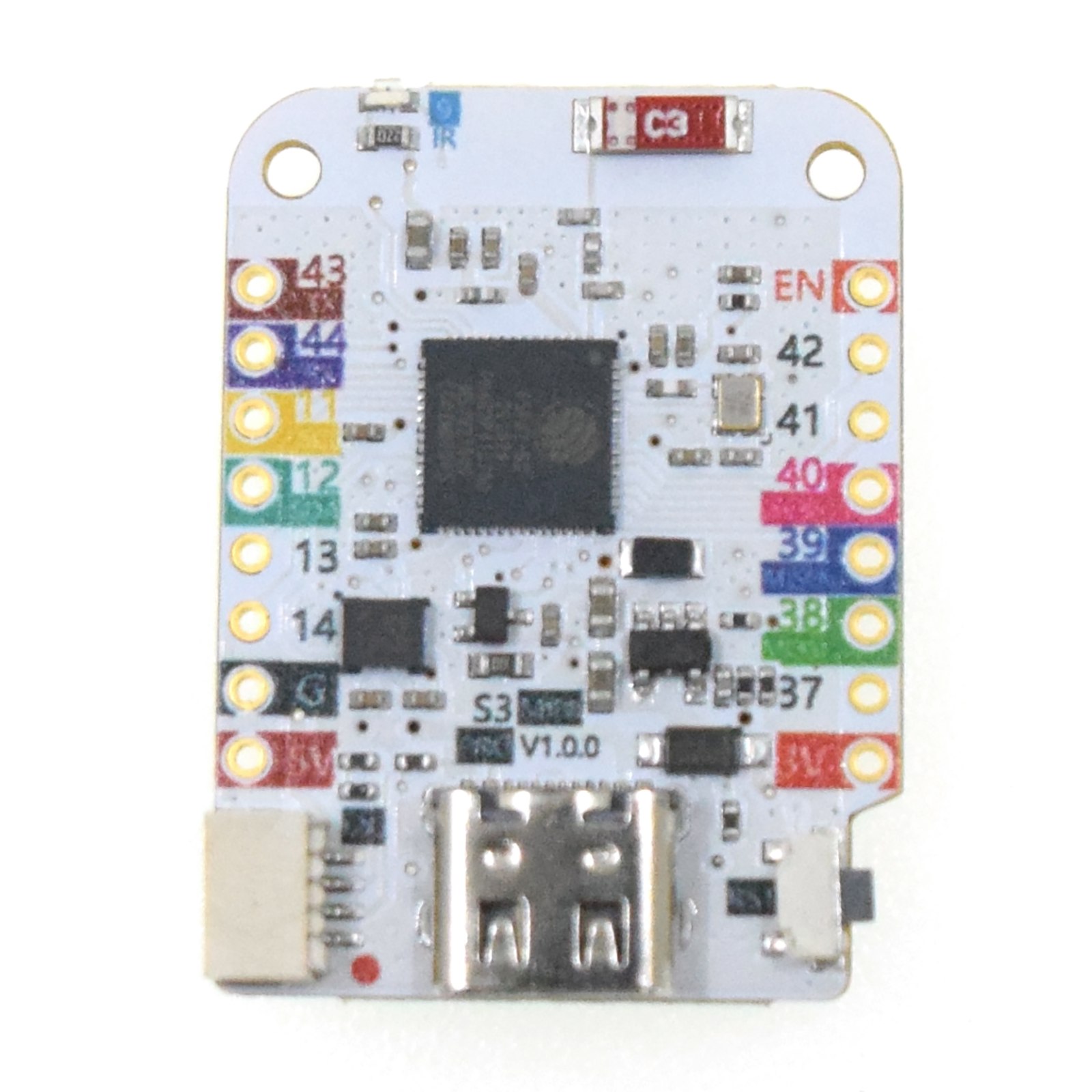

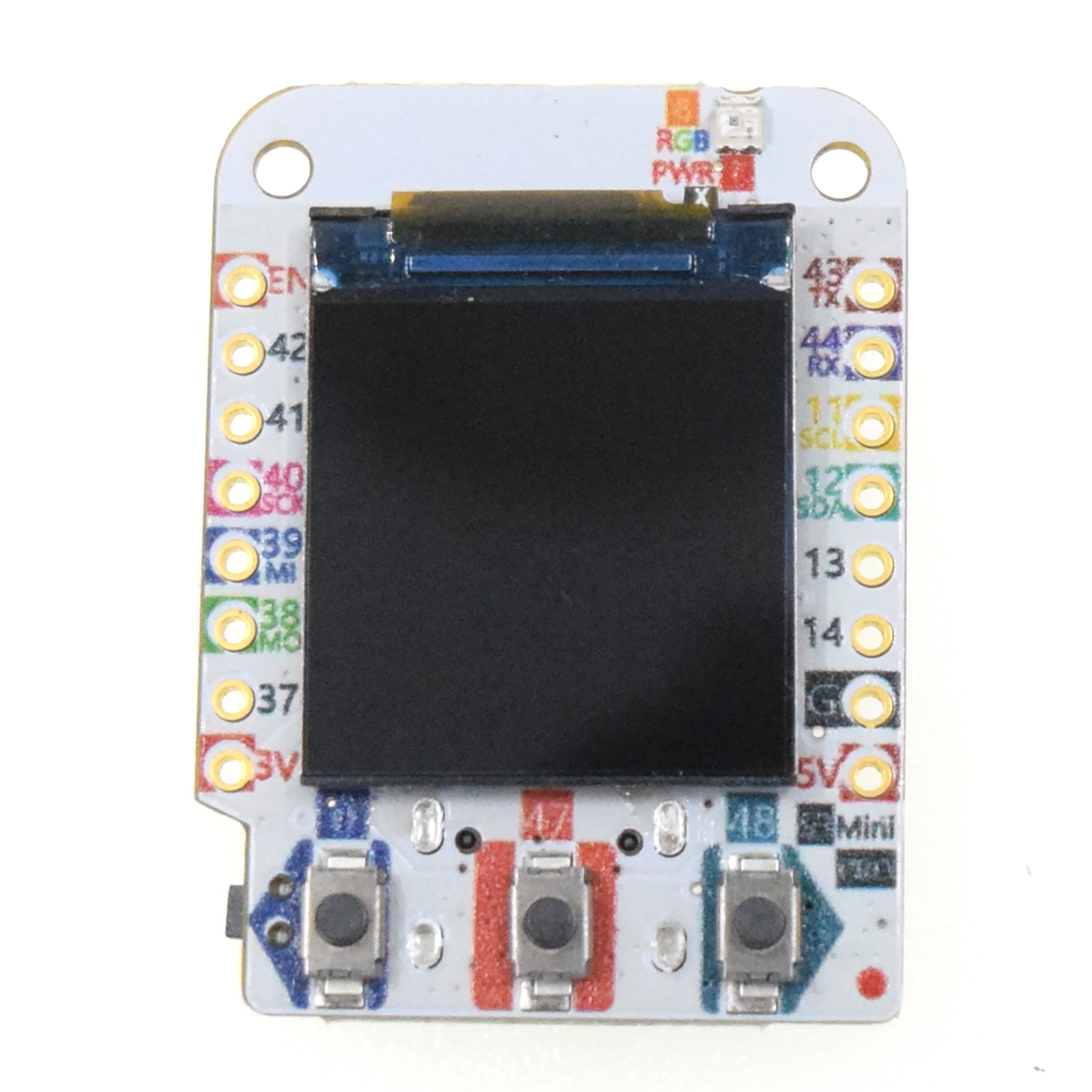

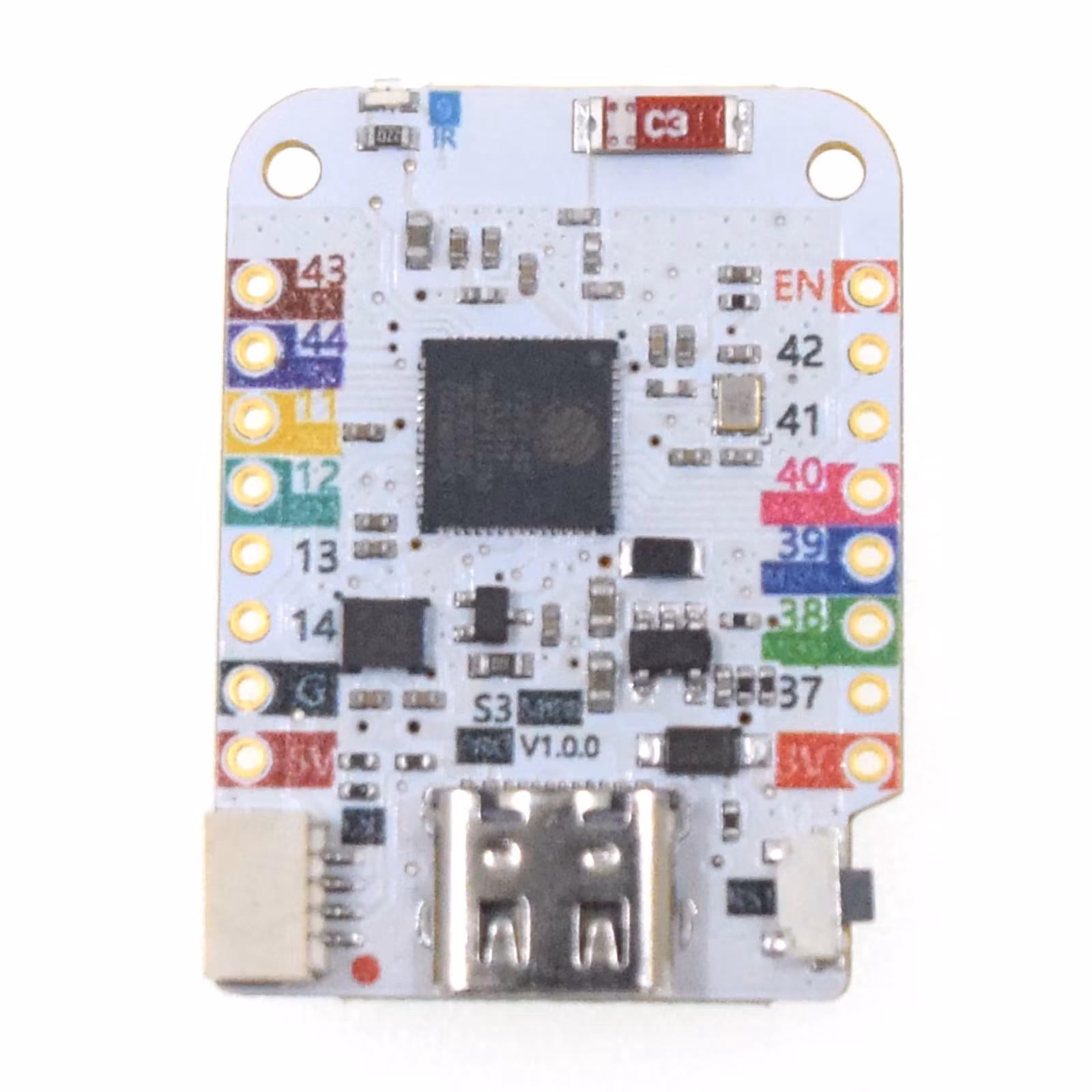

S3 Mini Pro V1.0.0 - LOLIN WIFI Bluetooth IOT Board based ESP32-S3FH4R2 TFT IMU

  • 299 kr

WiFi & BLE boards based ESP32-S3FH4R2 with 0.85 inch TFT Screen and IMU.Featuresbased ESP32-S3FH4R22.4 GHz Wi-FiBluetooth LE4MB Flash2MB PSRAM0.85” 128x128

I lager.
Artikelnummer: 1341
Dela
  • Information

WiFi & BLE boards based ESP32-S3FH4R2 with 0.85 inch TFT Screen and IMU.

Features

  • based ESP32-S3FH4R2

  • 2.4 GHz Wi-Fi

  • Bluetooth LE

  • 4MB Flash

  • 2MB PSRAM

  • 0.85” 128x128 LCD TFT display (GC9107/GC9A01)

  • 6D MEMS IMU (QMI8658C)

  • 12x IO

  • 3x Button (IO0, IO47, IO48)

  • 1x RGB LED (Data: IO8, Power: IO7)

  • 1x IR (IO9)

  • ADC, DAC, I2C, SPI, UART, USB OTG

  • Size:  34.3mm*25.4mm

  • Compatible with MicroPython, Arduino

  • Default firmware: MicroPython

  • Compatible with LOLIN D1 mini shields

  • More: https://www.wemos.cc/en/latest/s3/s3_mini_pro.html

Tutorials

Documentation

Technical specs

Operating Voltage
3.3V
Digital I/O Pins
12
Clock Speed
240MHz
Flash
4M Bytes
PSRAM
2M Bytes
Size
34.3*25.4mm
Weight
5g


../_images/s3_mini_pro_v1.0.0_4_16x9.png



../_images/s3_mini_pro_v1.0.0_5_16x9.png


MicroPython Examples
