2 Channel Solid State Relay Module

  • 125 kr

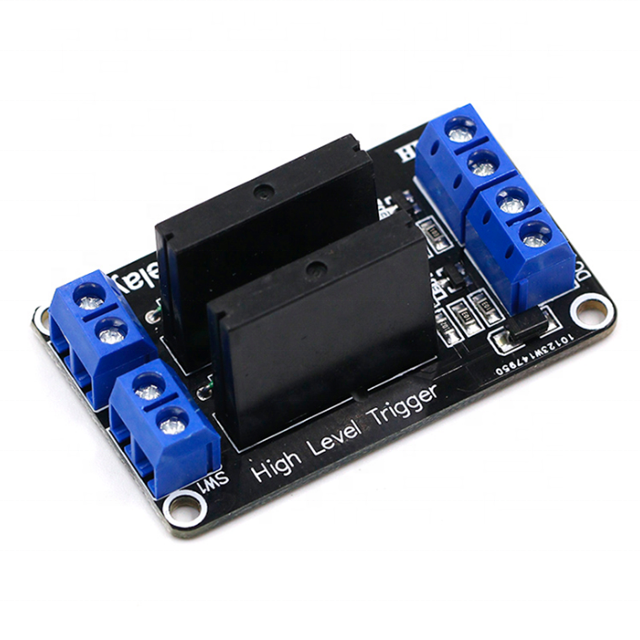

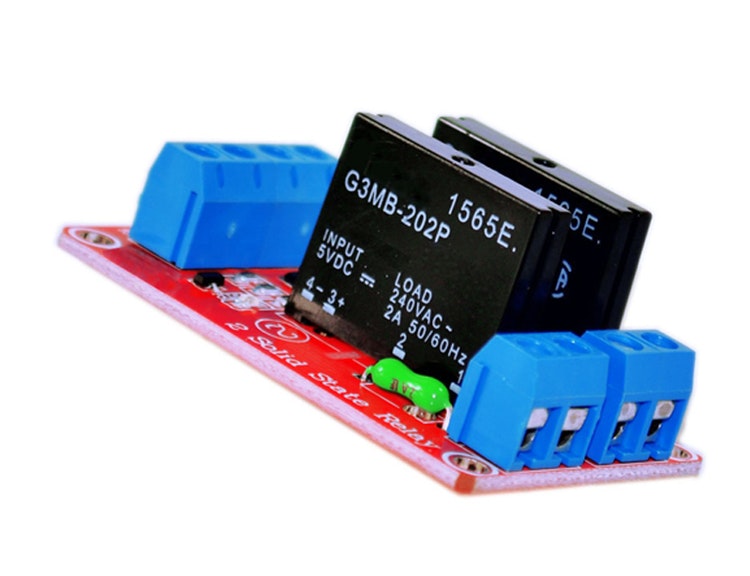

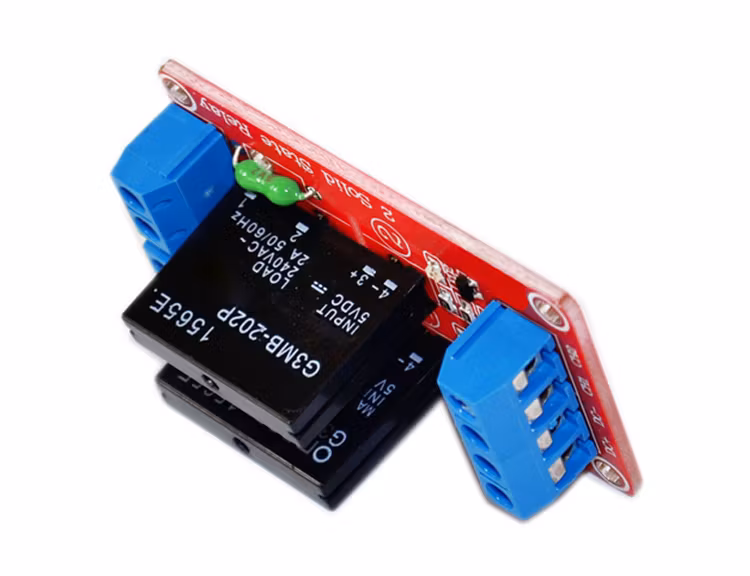

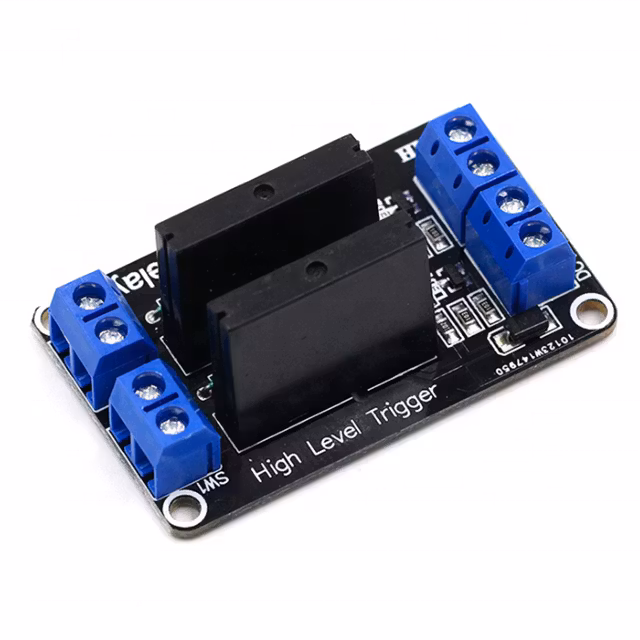

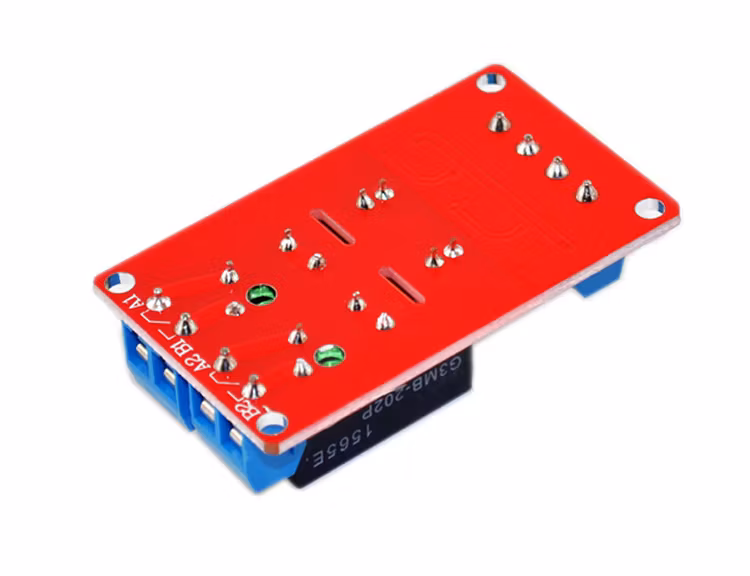

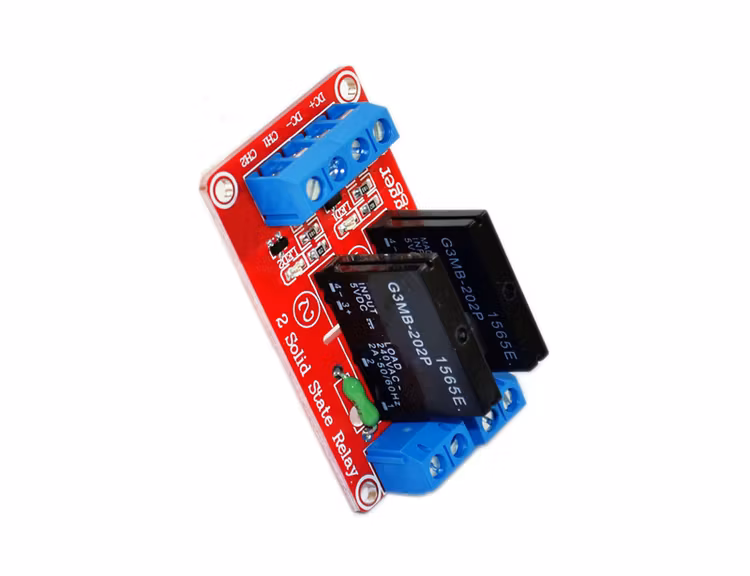

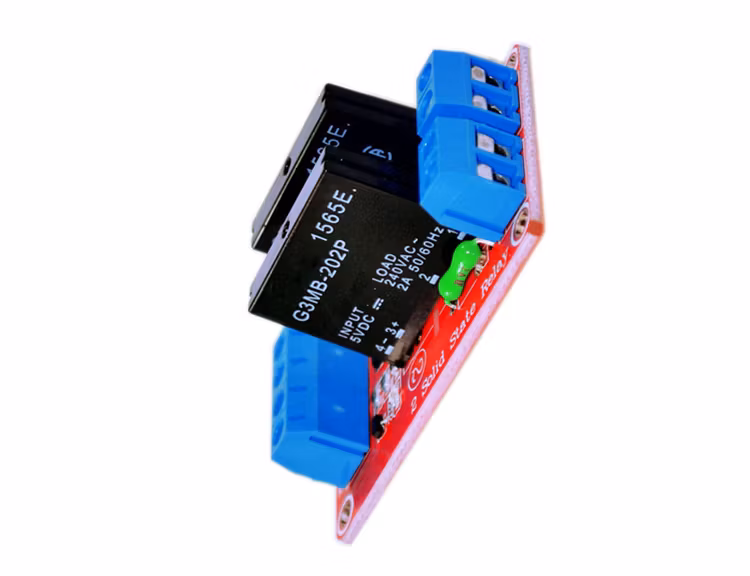

5V 2 Channel SSR Solid State Relay ModuleProduct Description1.Input power supply:5V DC (160MA).2.Specification:” State of 0-2.5V low-level relay ON;State of 3-5

I lager.
Artikelnummer: 669

5V 2 Channel SSR Solid State Relay Module

Product Description

1.Input power supply:5V DC (160MA).

2.Specification:” State of 0-2.5V low-level relay ON;

State of 3-5V high-level relay OFF”.

3.Interface:” DC+: connect to positive(according to the relay voltage supply)DC-: connect to negative CH relay module signal triggering side (high-level trigger active)”.

4.Trigger voltage: low-level 0-2.5V, high default 3.5-5V (in the case of voltage 12V trigger, you need a series resistance of a 5.1-6.8K before the trigger;24V voltage trigger, you need a 15-22K resistor in series before the trigger, otherwise it will burn the chip).

5.Voltage:low voltage.

6.Static current:0mA.

7.Working current:22.5mA.

8.Trigger current:2mA.


10.Pack Size:55*33*25mm.

5V solid state relays 240V 2A,
output with resistive fuse 240V 2A
Size: 103*53*21mm/4.05*2.08*0.82"
The input power supply: 5V DC (160mA)
The input control signal voltage: (0-2.5V low state relays ON) (3.3-5V state high relay OFF)
1/2/4 Channel:
Input section:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: relay module signal to trigger the end (high-level trigger effective)

Shipping list
