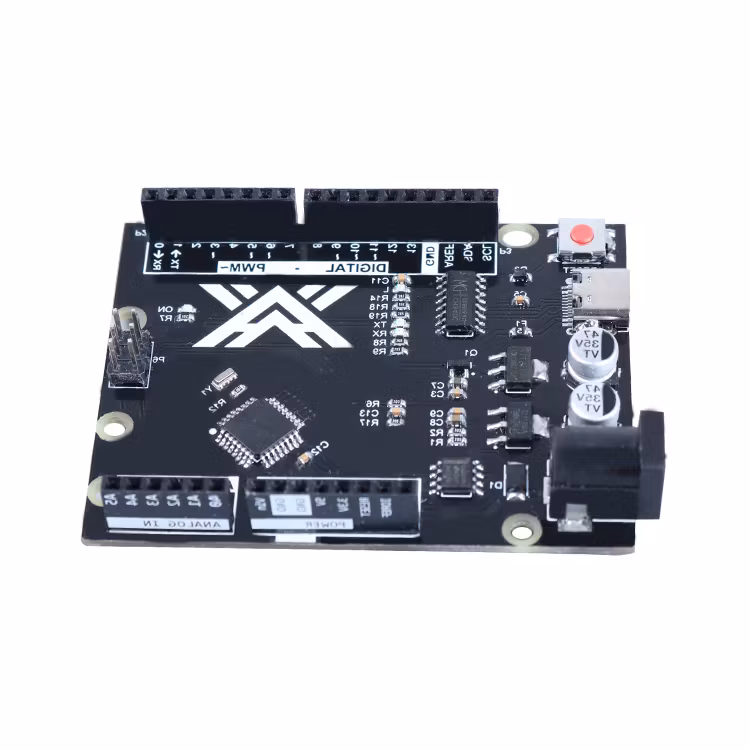

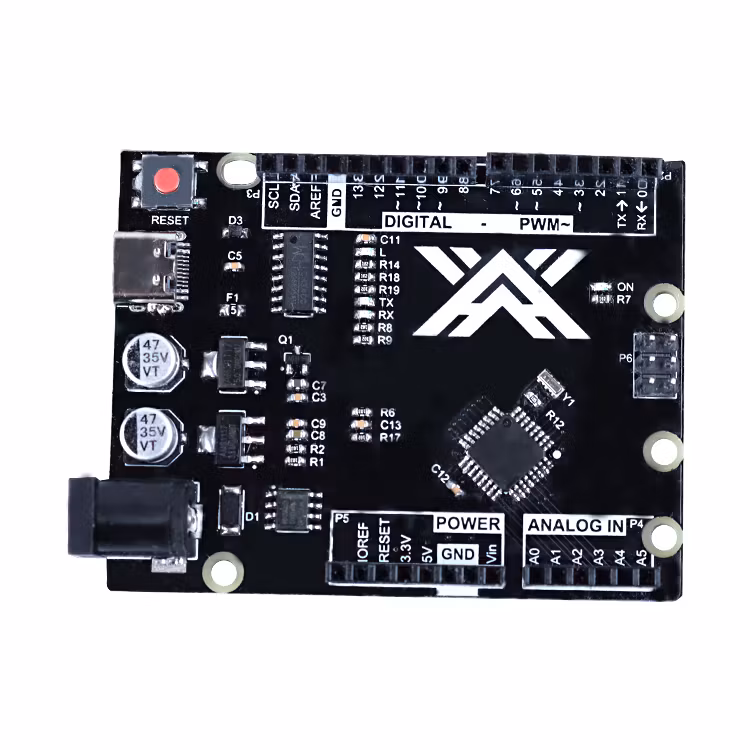

UNO R3 Type C USB Atmega328 Board Arduino compatible

I lager.
Antal: 8

199 kr

Artikelnummer: 939

The new Uno R3 with a USB Type C connector that replaces the bulky square USB Type A connector.

Features:

It is a microcontroller board based on the ATMEGA328P-AU, fully compatible with UNO R3 board.

It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack and a reset button.

Specifications:

  • Controller: ATMEGA328P-AU
  • USB to serial chip: CH340
  • USB Port: type-C
  • Input Voltage (recommended):7-12V
  • Digital IO pins:14 (of which 6 provide PWM output)
  • Analog input pins :6 DC
  • Current per I/O Pin:40 mA
  • USB Clock Speed: 16 MHz
  • Operating voltage: 5V
  • Input Voltage (limits): 6-20V

Package list

1 × UNO R3 Type-C Board Module
Standard Anti-static Poly Bag
Type C cable
