Expansion Board DHT11 LM35 Temperature Humidity LM35 Module Arduino compatible

  • 99 kr

Expansion Board DHT11 LM35 Temperature Humidity LM35 Module  Arduino compatible.Description: *Fully compatible with UNO R3 interfaces*Providing beginn

I lager.
Artikelnummer: 942
Dela
  • Information

Expansion Board DHT11 LM35 Temperature Humidity LM35 Module  Arduino compatible.

Description:
*Fully compatible with UNO R3 interfaces
*Providing beginners basic experimental module
*A board integrates various modules function
*No welding, no connection, you can download the program directly to complete the experiment
*Provide all the module code library files, all tested and can be used directly

*Set aside expansion port, you can complete other modules experiment

Features:*2-way button module*2-way LED module*Full Color LED Module*IR receiver module*Brightness sensor module*LM35D temperature sensor module*Passive buzzer module*Rotary potentiometer module*DHT11 temperature and humidity sensor module*One I2C interface (A4 SDA, A5 SCL)*One TTL serial port*Two channel digital ports (D7, D8)*One channel analog port (A3)*Reset button

Notes:Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Package list

1 × Expansion Board
Standard Anti-static Poly Bag

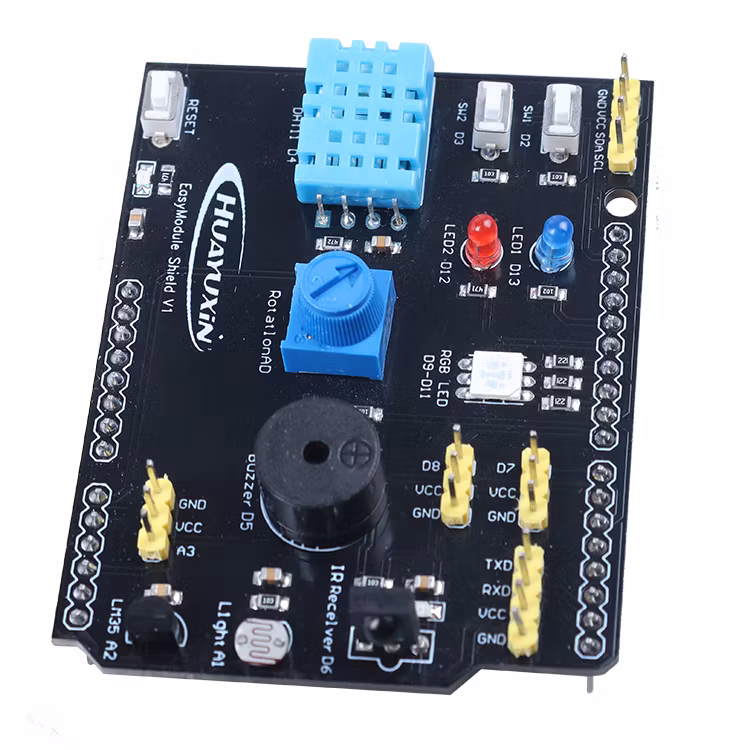

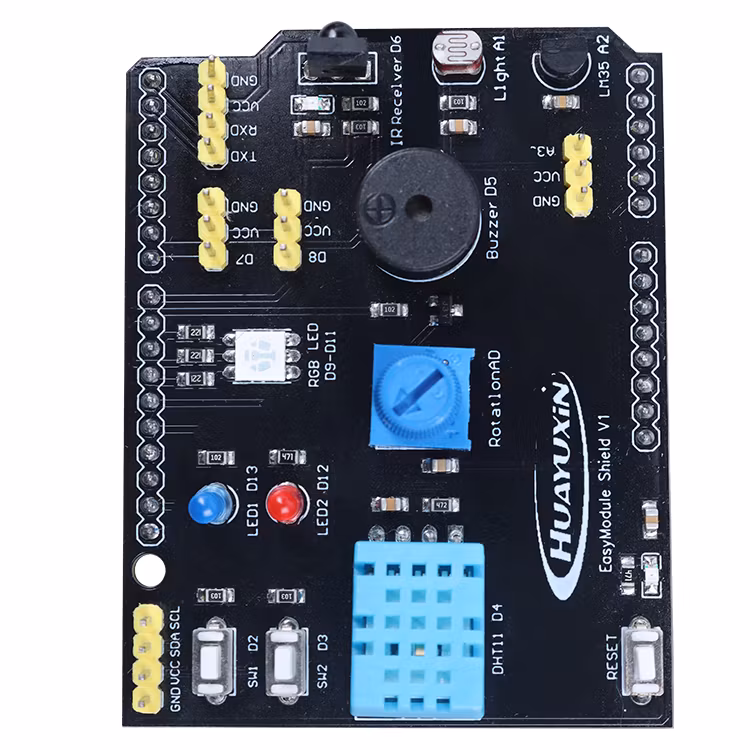

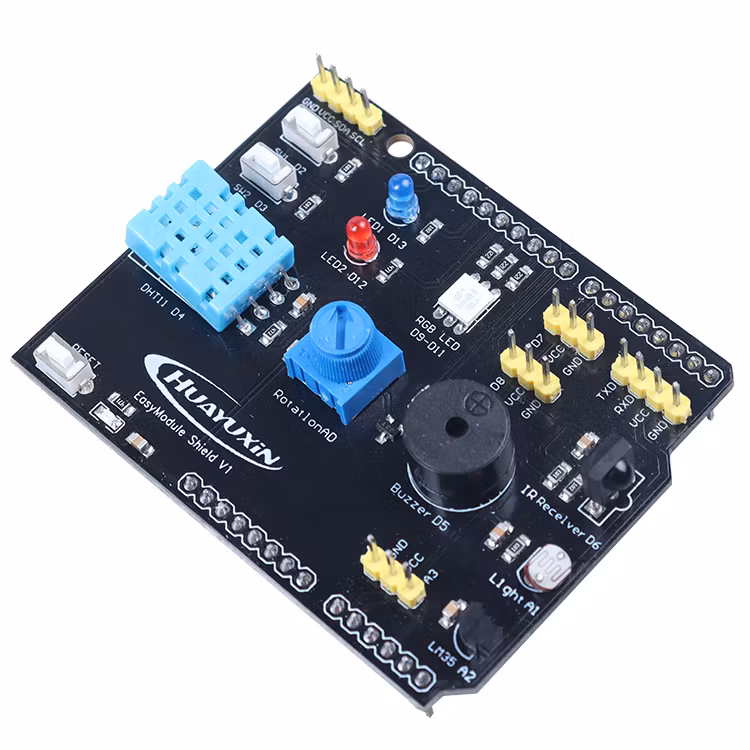

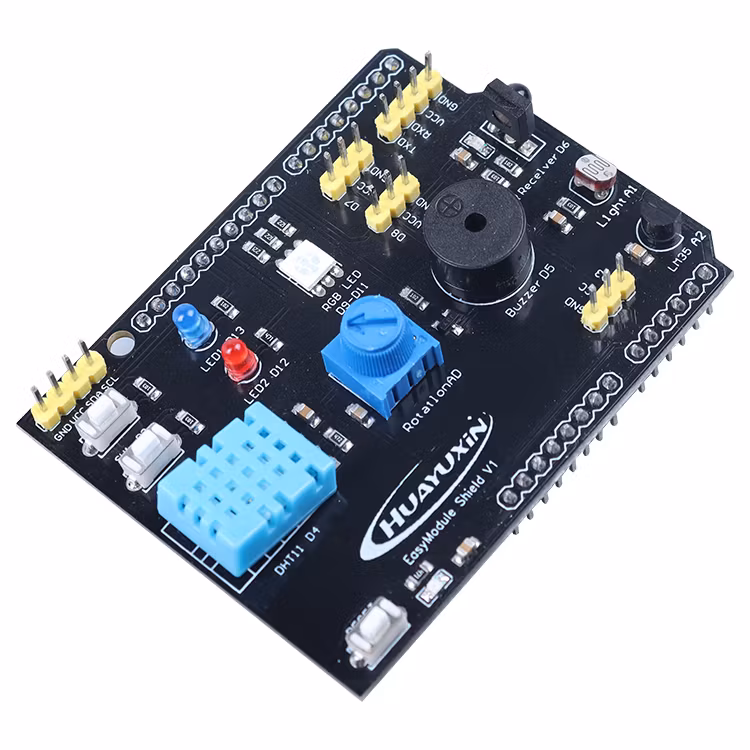

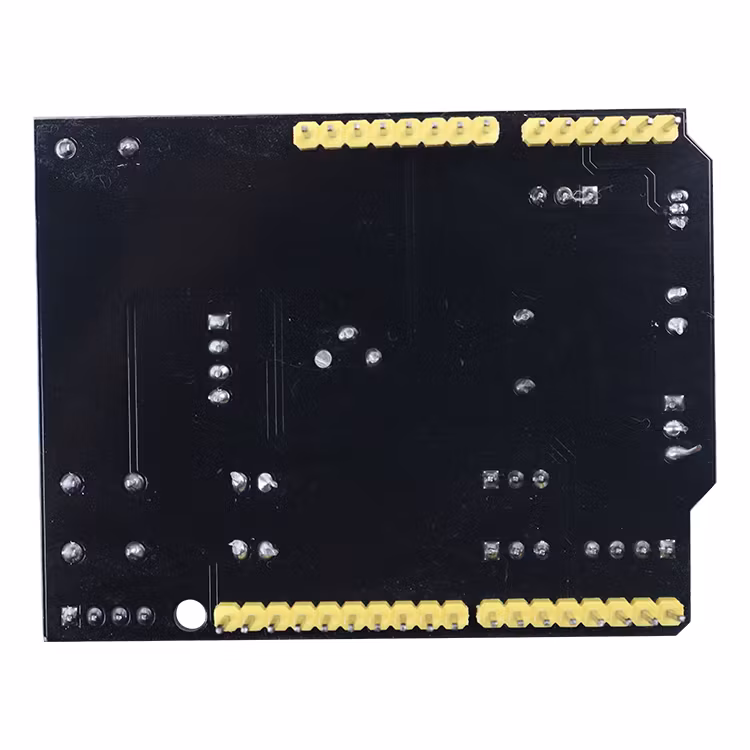

Details Images
