Expansion Board DHT11 LM35 Temperature Humidity LM35 Module Arduino compatible.
Description: | ||||
*Fully compatible with UNO R3 interfaces | ||||
*Providing beginners basic experimental module | ||||
*A board integrates various modules function | ||||
*No welding, no connection, you can download the program directly to complete the experiment | ||||
*Provide all the module code library files, all tested and can be used directly | ||||
*Set aside expansion port, you can complete other modules experiment |
Features:*2-way button module*2-way LED module*Full Color LED Module*IR receiver module*Brightness sensor module*LM35D temperature sensor module*Passive buzzer module*Rotary potentiometer module*DHT11 temperature and humidity sensor module*One I2C interface (A4 SDA, A5 SCL)*One TTL serial port*Two channel digital ports (D7, D8)*One channel analog port (A3)*Reset button
Notes:Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Package list
1 × Expansion Board | ||||
Standard Anti-static Poly Bag |

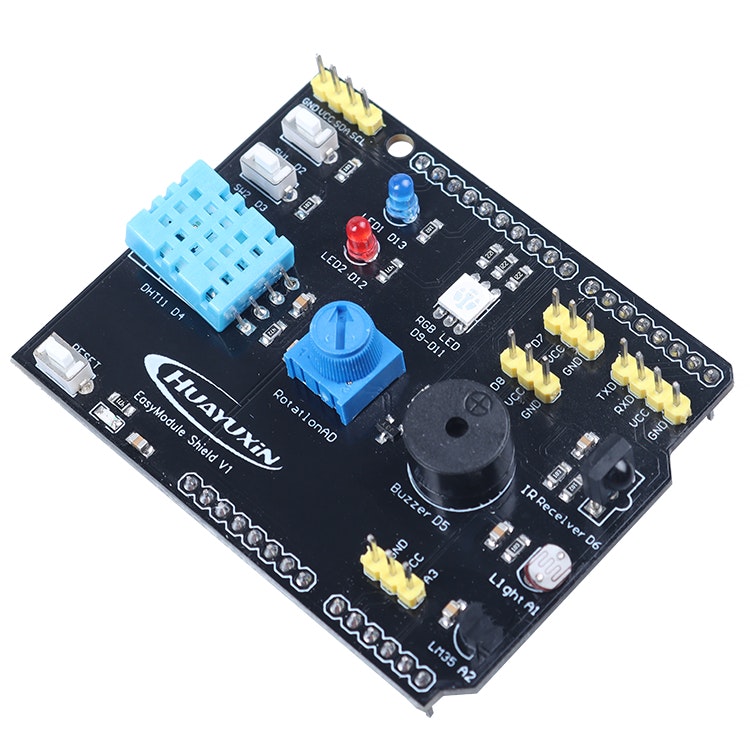

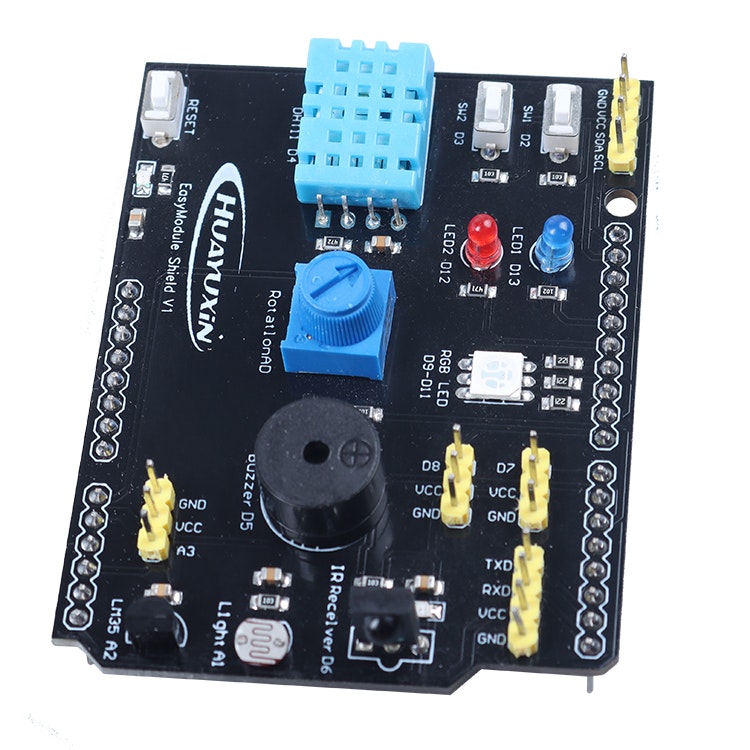

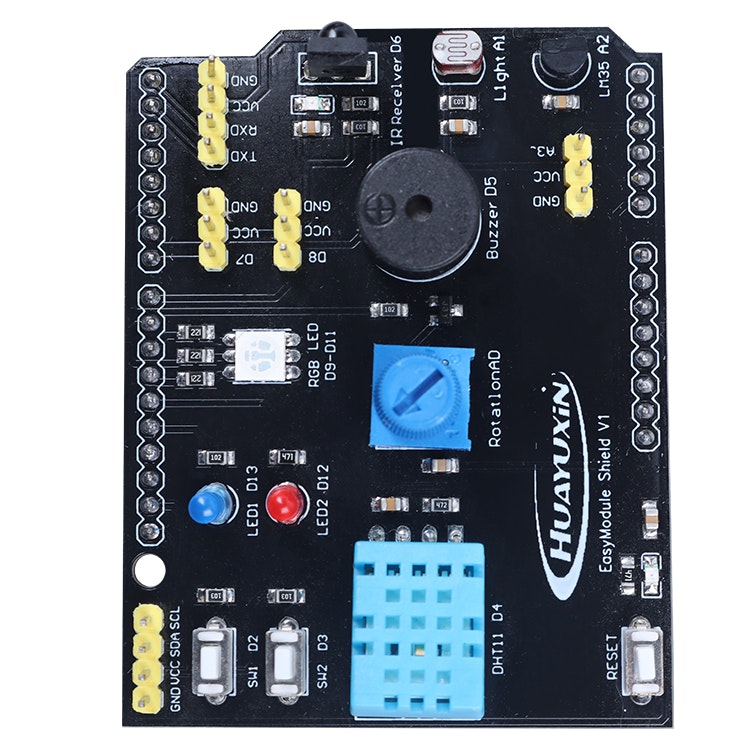

Details Images
