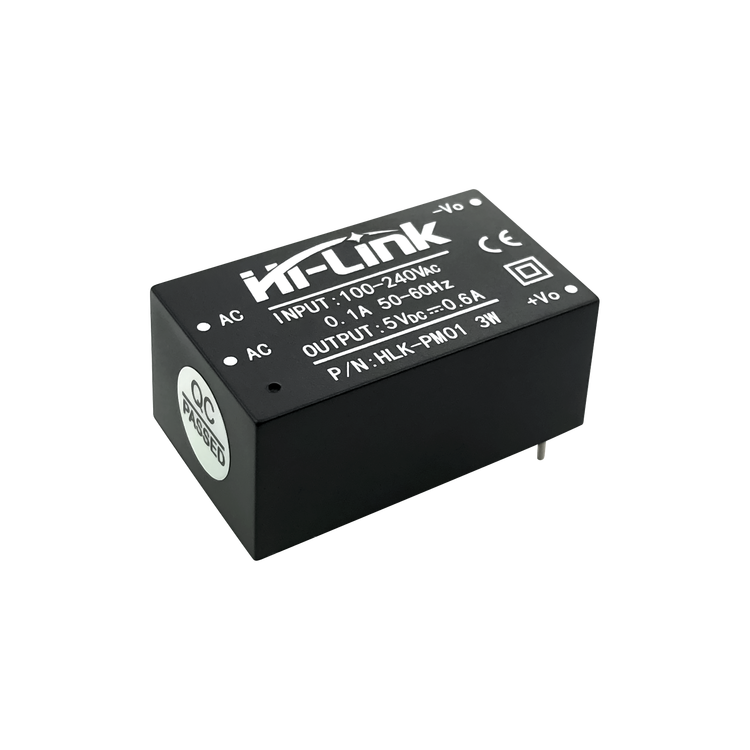

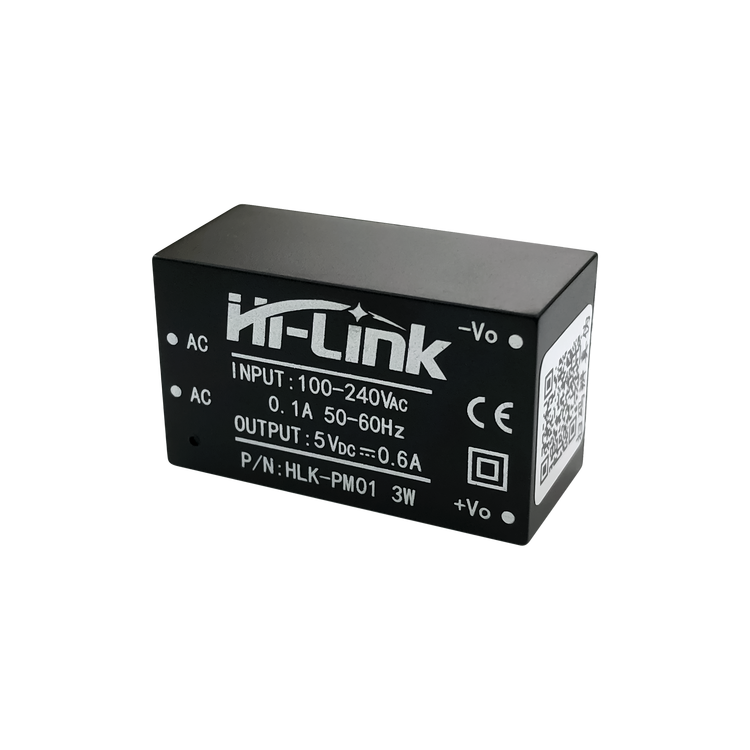

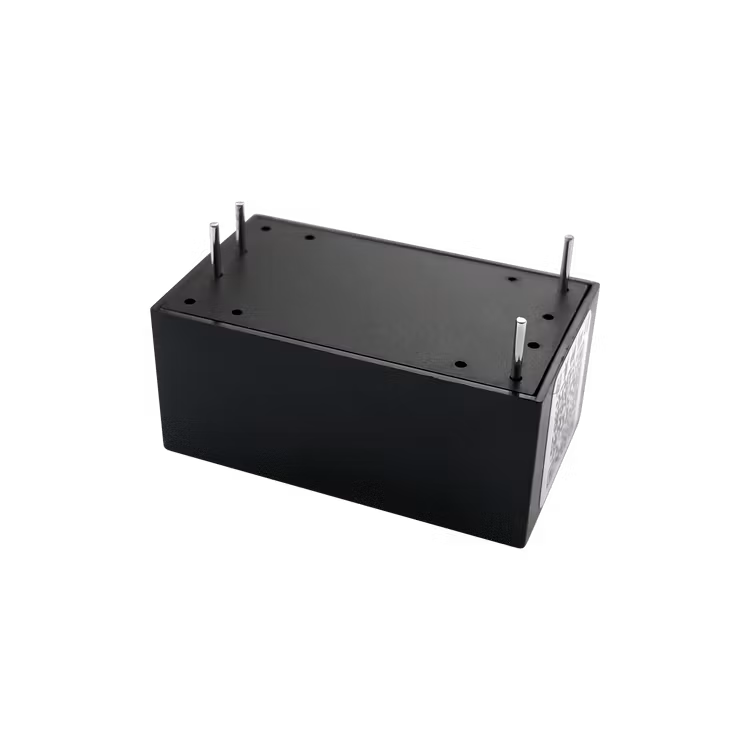

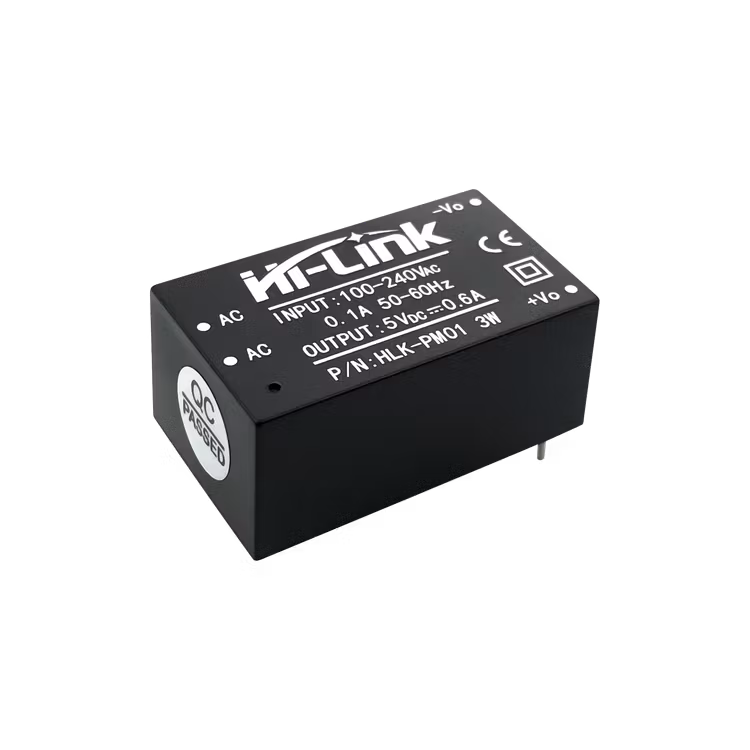

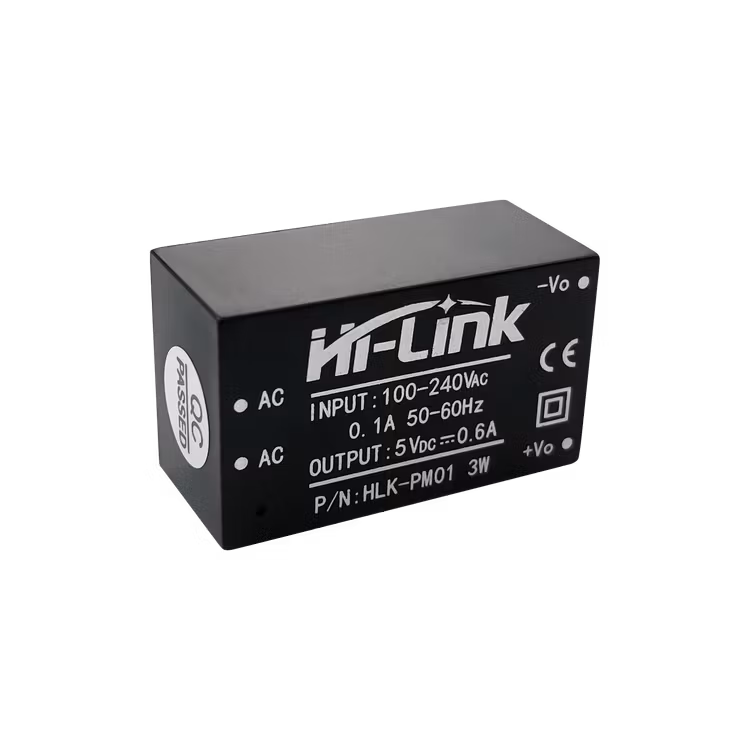

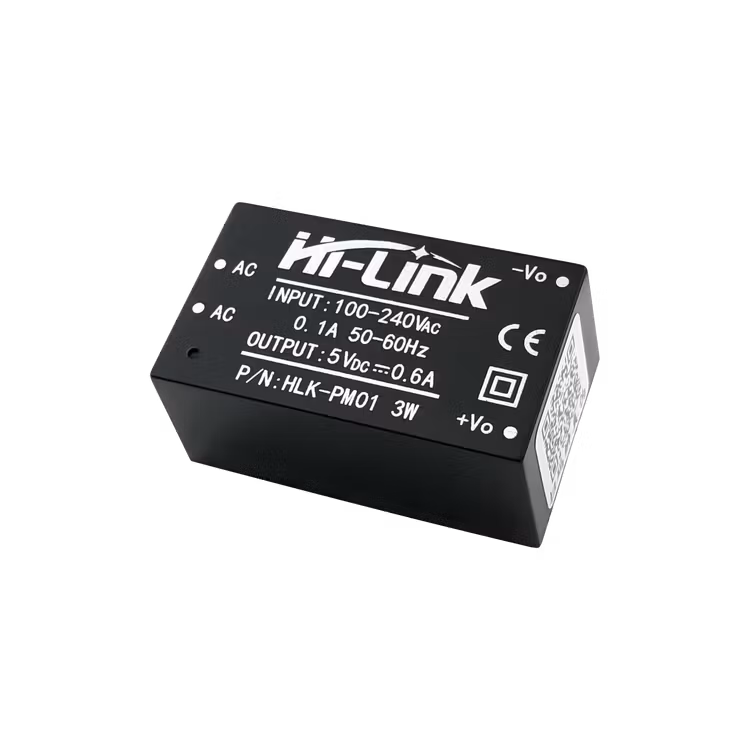

HLK-PM01 3W AC-DC 220V to 5V Step-Down Switching Power Supply Module

I lager.
Antal: 20
0 kr

75 kr

Artikelnummer: SKU836PM01

3W ultra-small series of power module is a small volume, high efficiency module power supply designed by Hi-Link Electronics. With the global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability, high security isolation and so on. Has been widely used in smart home,automation,communications equipment, instrumentation and other industries.

Specifikation

 1. Ultra-thin, ultra-small, the industry's smallest volume;

2. Global universal input voltage (90 ~ 245Vac);

3. Low-power, green, no-load loss <0.1W;

4. Low ripple, low noise;

5. Good output short circuit and overcurrent protection and self recovery;

6. High efficiency, high power density;

7. Input and output isolation voltage 3000Vac;

8. 100% full load aging and testing;

9. High reliability, long life design, continuous working time is greater than 100,000 hours;

10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;

11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards;

12. Economic solutions, cost-effective

13. No external circuit to work

14. 1 year quality guarantee period.

Overall Dimensions And Weight

Features:

1). The ultra-thin, subminiature
2). The full voltage input (90 ~ 265 vac)
3). Low ripple and low noise
4). Output overload short circuit protection function
5). High efficiency and power density
6). Product design to meet the EMC and safety testing requirements
7). Low power consumption, green environmental protection, no-load loss < 0.1 W
8).100% load test
9). Meet the requirements of UL, CE,
10). The quality guarantee period of 1 years.


Environmental Conditions:
1). Working temperature: -20- + 60 Celsius
2). Storage temperature: -40- + 80 Celsius
3). Relative Humidity: 5-95%
4). Cooling: natural cooling
5). Atmospheric pressure: 80-106 Kpa
6). Altitude: ≤2000m
7). Vibration: Vibration coefficient 10 ~ 500Hz, 2G10min / 1cycle, 60min.each along X, Y, Z axes

Electrical Characteristics (at ambient temperature test)

1). Rated input voltage: 100-240 VAc
2). Input voltage range: 90-264VAc
3). Maximum input current: ≤0.2A
4). Input current surge: ≤10A
5). Maximum input voltage: ≤270VAc
6). Enter slow start: ≤50mS
7). Input Low Voltage Efficiency: Vin = 110VAc, full load ≥69%
8). Input High Voltage Efficiency: Vin = 220VAc, full load ≥70%
9). Long-term reliability: MTBF≥100,000h
10). Load rated output voltage: + 5 ± 0.1VDc
11). Full rated output voltage: + 5 ± 0.2VDc
12). Short-term maximum output current: ≥1000mA
13). Maximum output current for a long time: ≥600mA
14). Voltage Regulation: ± 0.2%
15). Load regulation: ± 0.5%
16). Output ripple and noise (mVp-p): ≤50
17). Switch overshoot amplitude: ( rated input voltage, output load plus 10%) ≤5% VO
18). Output over-current protection: output maximum load of 150-200% A
