OLED display 1.5inch Module

I lager.

199 kr

Artikelnummer: 321

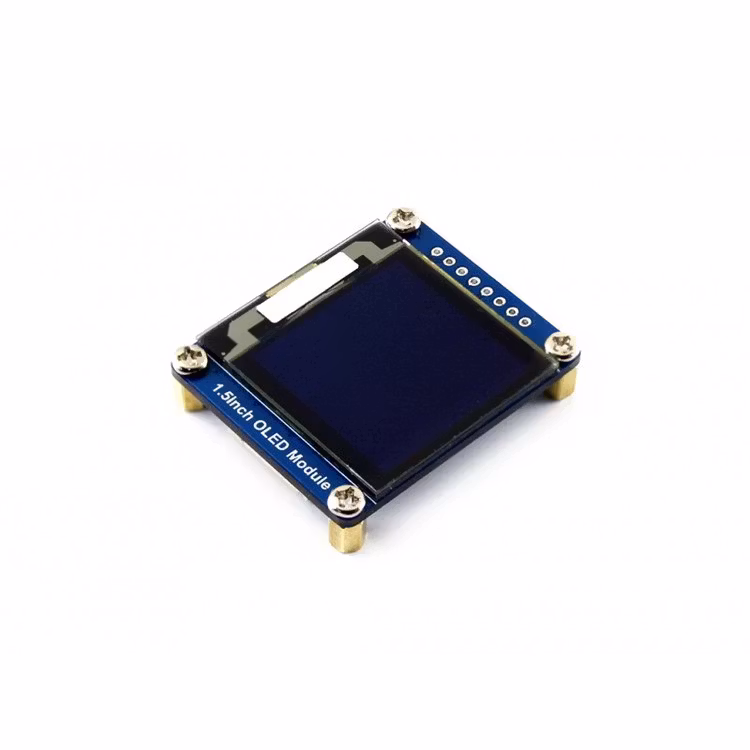

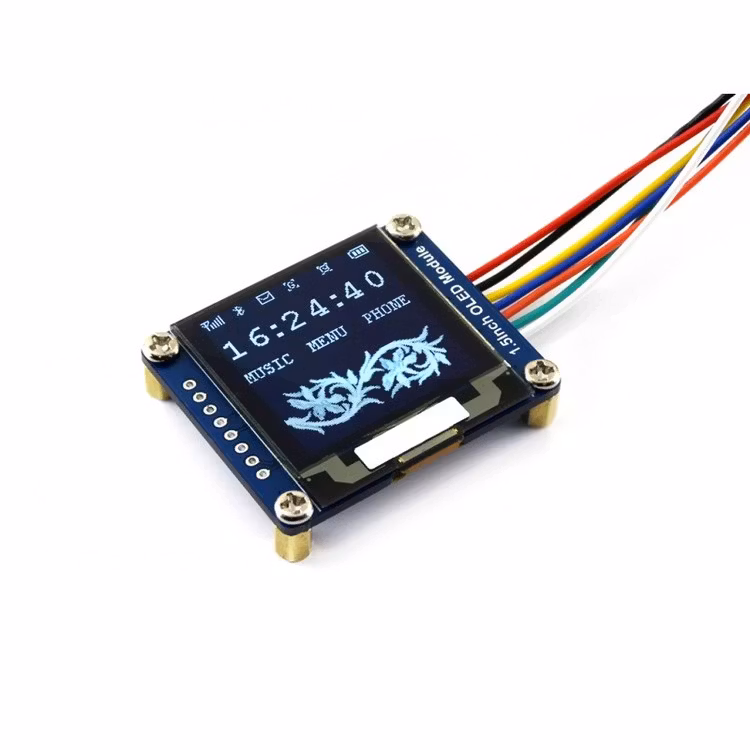

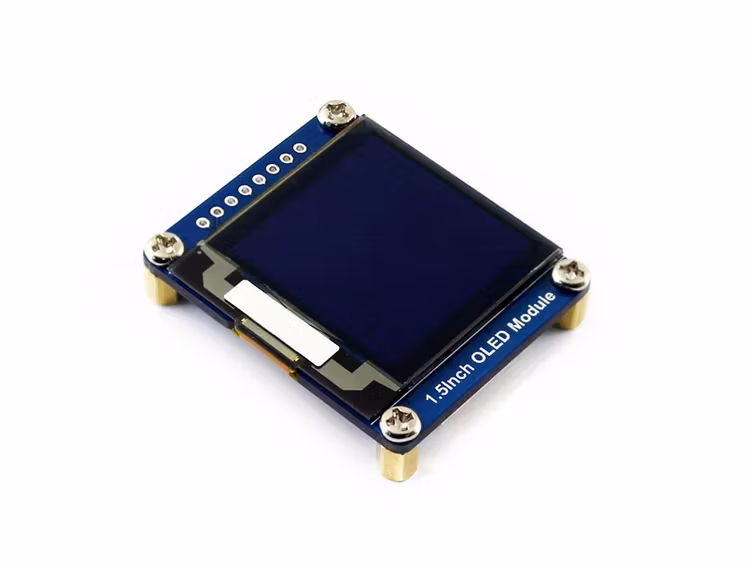

This is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.


  • 128x128 high resolution
  • 16 gray scale, better display effect
  • Supports SPI or I2C interface, configured via onboard resistor
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)


  • Driver: SSD1327
  • Interface: SPI / I2C
  • Display color: White
  • Gray scale: 16
  • Resolution: 128x128 (most other competitive products are typically 128x64)
  • Viewing angle: >160°
  • Operating voltage: 3.3V / 5V
  • Dimension: 44.5 x 37 (mm)


VCCPower (3.3~5V input)
DINData input
CLKClock data input
CSChip selection, low active
DCData/Command selection (high for data, low for command)
RSTReset, low active

There are two available drive interfaces for this OLED module: 4-wire SPI and I2C:

4-wire SPI0Chip selectData/CommandMOSISCK
I2C1NCI2C address selectionSDASCL


Development Resources

Wiki : www.waveshare.com/wiki/1.5inch_OLED_Module
