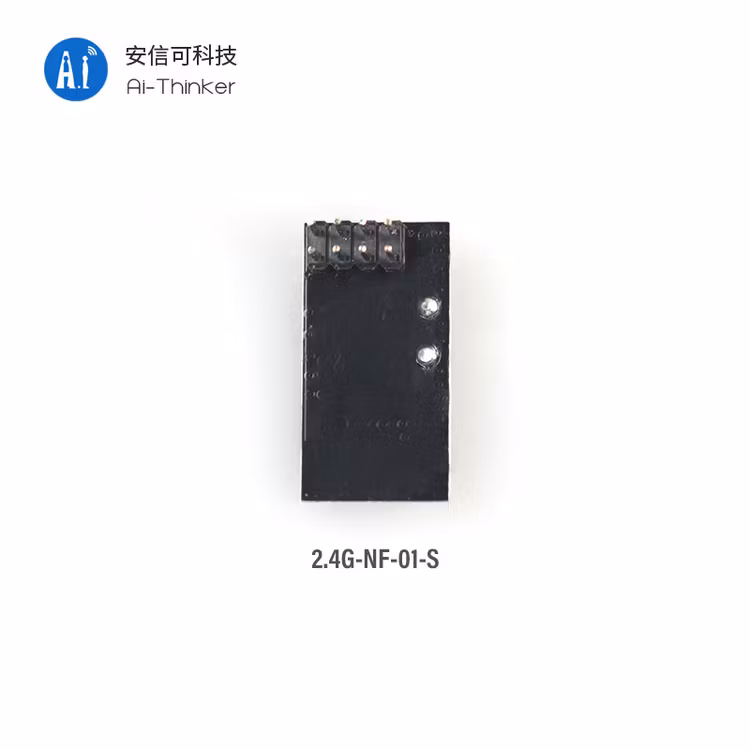

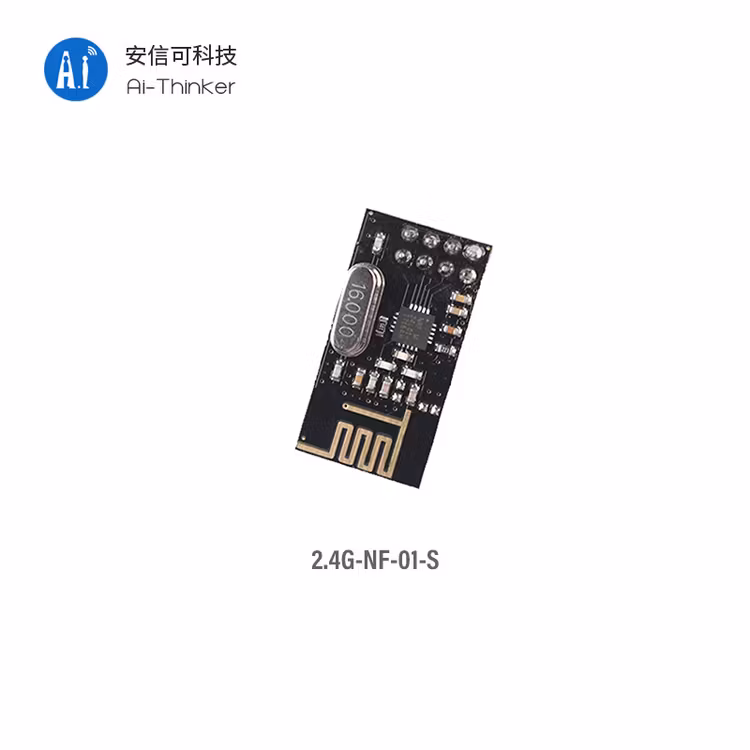

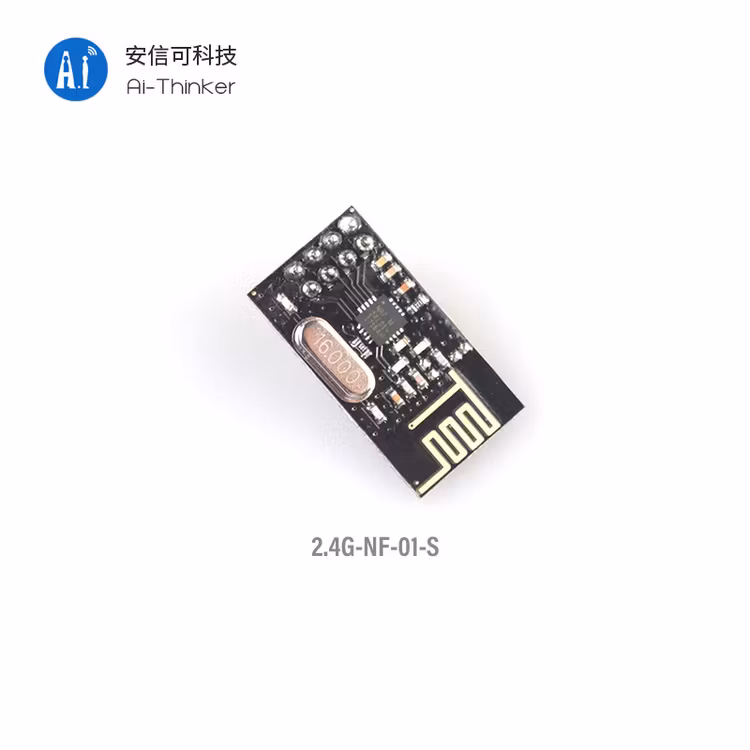

Ai-Thinker NRF24l01+ Wireless Module 2.4 G Wireless Transceiver Communication Module NF-01-S

I lager.

85 kr

2.4GHz Wireless Transceiver Module

NF-01-S

NF-01-S is a 100mW power 2.4G wireless module with high airspeed (up to 2Mbps), SPI interface. It has the characteristic of high stability, high-cost performance, good spectrum test characteristics, small size, and it all uses industrial-grade components.

It has been mass-produced and has reached millions of shipments and is suitable for a variety of application scenarios.

NF-01-S can be widely used in various Internet of Things applications, suitable for wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, low-power self-organizing network wireless sensor network nodes, etc. It is the ideal solution for IoT applications.

The NF-01-S is packaged in DIP-8. It can be quickly connected to existing products, whether it is for learning or mass production. It can be directly inserted and removed without welding. It is very convenient to use.

 Ai-Thinker NRF24l01+ Wireless Module 2.4 G Wireless Transceiver Communication Module NF-01-SAi-Thinker NRF24l01+ Wireless Module 2.4 G Wireless Transceiver Communication Module NF-01-SAi-Thinker NRF24l01+ Wireless Module 2.4 G Wireless Transceiver Communication Module NF-01-SAi-Thinker NRF24l01+ Wireless Module 2.4 G Wireless Transceiver Communication Module NF-01-S



Products Parameter

Model

NF-01-S

Package

DIP-8

Size

28.6*15.3*3.2mm

Communication Interface

SPI(Up to 10Mbps)

Data Rate

250k~2Mbps, 3 Levels Adjustable(250kbps/ 1Mbps/ 2Mbps)

Frequency Band

2400MHz~2525MHz Adjustable, 1MHz Step

Antenna Type

Onboard PCB antenna, Gain 2dBi

Transmitted Power

7dBm

Rx sensitivity

-96dBm@250kbps

Average Current

Tx: 25mA (7dBm)

Rx: 15mA (2Mbps)

Turn off current: 1.0uA (Shutdown Mode)

Supply Voltage

1.9V~3.6V, Typical 3.3V

Operating Temperature

-20℃~85℃

Storage Temperature

-20℃~90℃, <90%RH
