Round-shaped All-in-one UART Capacitive Fingerprint Sensor

Round-shaped All-in-one UART Capacitive Fingerprint Sensor

399 kr

Round-shaped All-in-one Capacitive Fingerprint Sensor, Small Form Factor, UART, Integrated Fingerprinting Algorithm.This is a highly integrated round-shaped all

Lagersaldo: 1

Artikelnummer: 467

Dela

Information

Round-shaped All-in-one Capacitive Fingerprint Sensor, Small Form Factor, UART, Integrated Fingerprinting Algorithm.

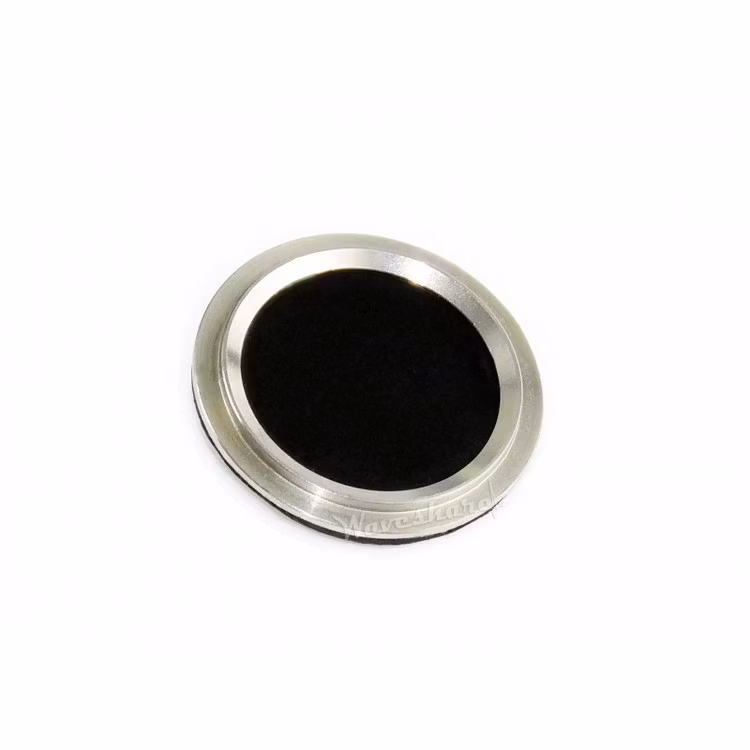

This is a highly integrated round-shaped all-in-one capacitive fingerprint sensor module, which is nearly as small as a nail plate. The module is controlled via UART commands, fairly easy to use. It's advantages includes 360° Omni-directional verification, fast verification, high stability, and low power consumption, etc.

Based on a high-performance Cortex processor, combined with a high-security commercial fingerprinting algorithm, the UART Fingerprint Sensor (C) features functionalities like fingerprint enrolling, image acquisition, feature finding, the template generating and storing, fingerprint matching, and so on. Without any knowledge about the complicate fingerprinting algorithm, all you need to do is just sending some UART commands, to quickly integrate it into fingerprint verification applications which require small size and high precision.

Features

Easy to use by some simple commands, you don't have to know any fingerprint technology or the module inter structure
A commercial fingerprinting algorithm, stable performance, fast verification, supports fingerprint enrolling, fingerprint matching, collect fingerprint image, and upload fingerprint feature, etc.
Capacitive sensitive detection, just touch the collecting window lightly for fast verification

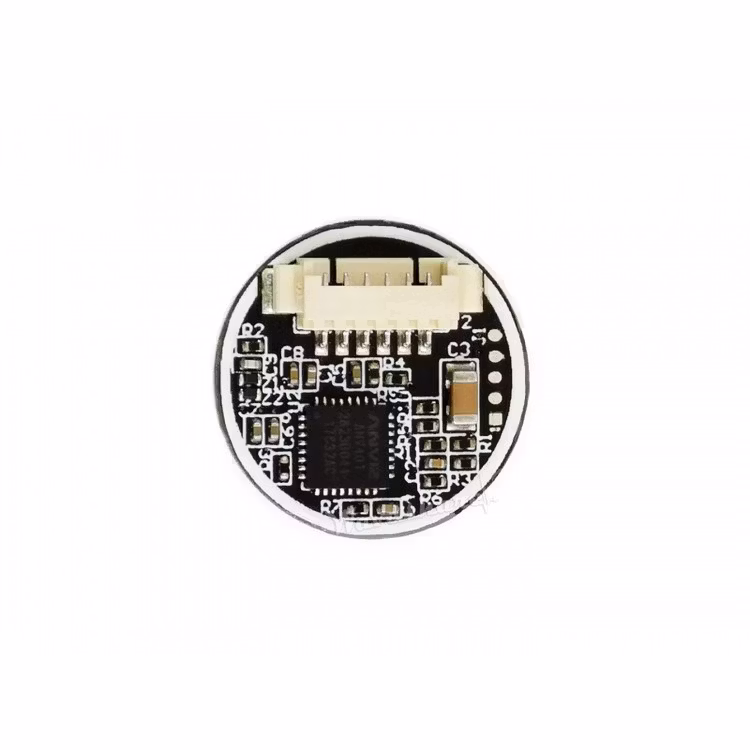

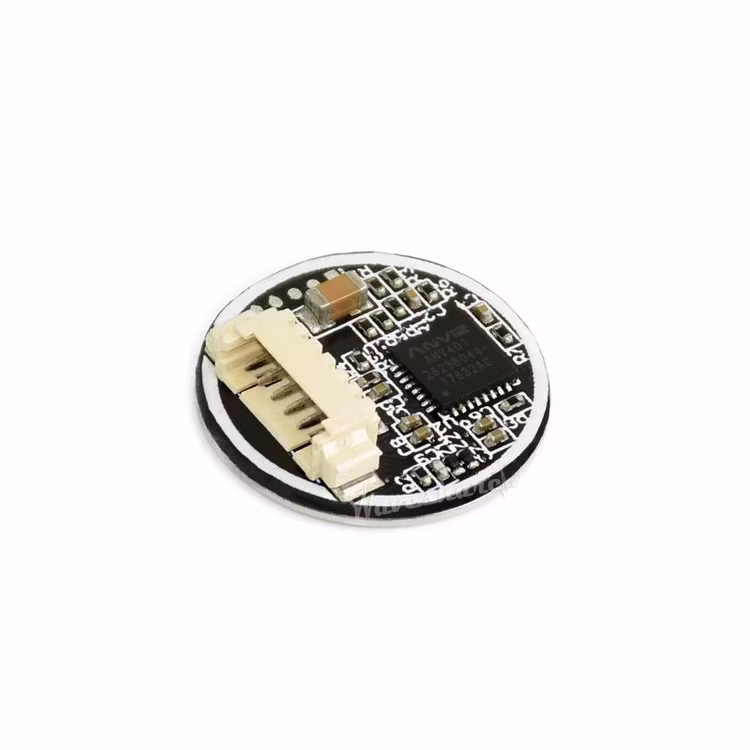

Hardware highly integrated, processor and sensor in one small chip, suit for small size applications

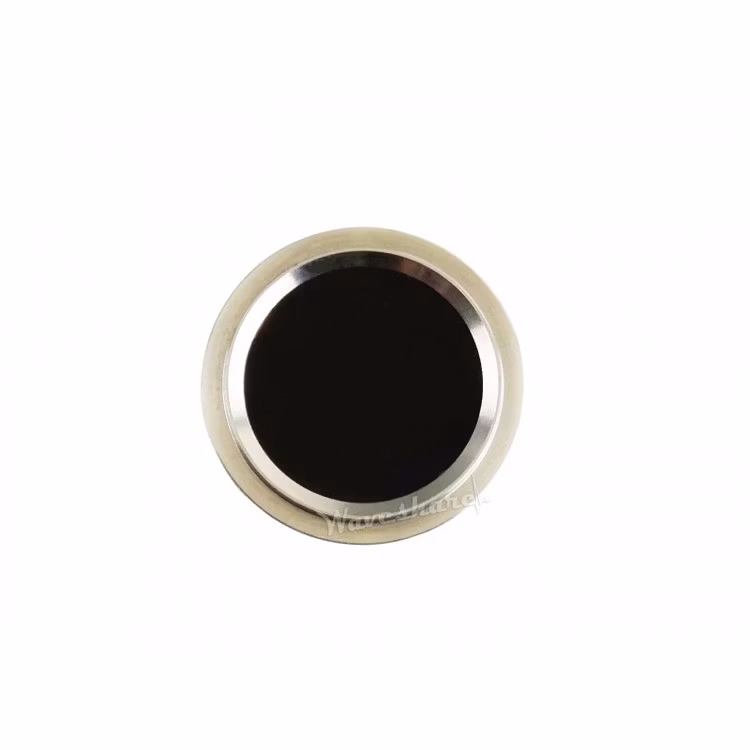

Narrow stainless steel rim, large touching area, supports 360° Omni-directional verification
Embedded human sensor, the processor will enter sleep automatically, and wake up when touching, lower power consumption

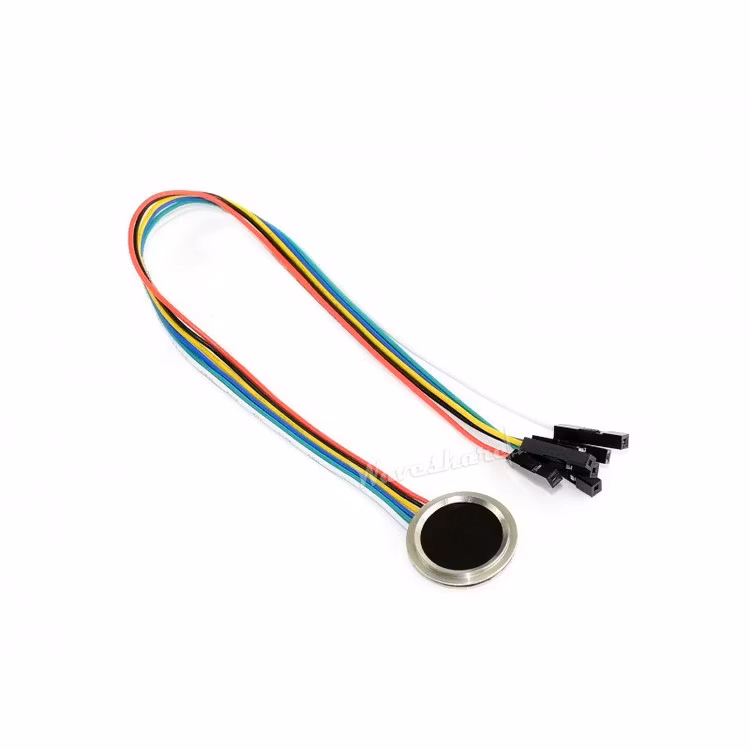

Onboard UART connector, easy to connect with hardware platforms like STM32 and Raspberry Pi

Specifications

Sensor type: capacitive touching
Resolution: 508DPI
Image pixels: 192×192
Image greyscale: 8
Sensor size: R15.5mm
Fingerprint capacity: 500
Matching time: <500ms (1:N, and N≤100)
False acceptance rate: <0.001%
False rejection rate: <0.1%
Operating voltage: 2.7~3.3V
Operating current: <50mA
Sleep current: <16uA
Anti-electrostatic: contact discharge 8KV / aerial discharge 15KV
Interface: UART
Baudrate: 19200 bps
Operating environment:
- Temperature: -20°C~70°C
- Humidity: 40%RH~85%RH (no condensation)
Storage environment:
- Temperature: -40°C~85°C
- Humidity: <85%RH (no condensation)

Applications

Fingerprint lock
Fingerprint safe deposit box
Access control system
Clock in and out

Development Resources

Wiki: www.waveshare.com/wiki/UART_Fingerprint_Sensor_(C)
