Seeed IoT Button for AWS - Cloud Programmable Dash Button

449 kr

Produkten är tyvärr slut i lager. :(

Artikelnummer: 748

Preorder, new product delivery v16

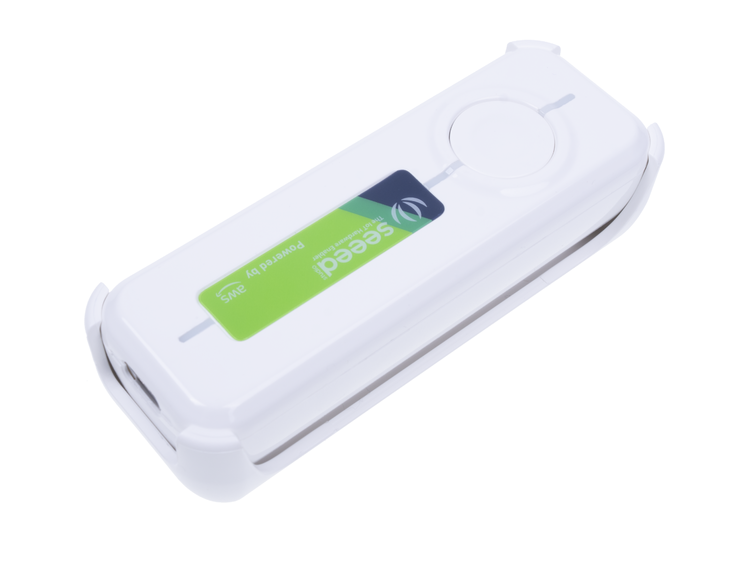

The Seeed IoT Button For AWS is a Wi-Fi-based, programmable button that deploys the AWS IoT 1-Click service. The simple Wi-Fi device is easy to configure and designed for developers to get started with AWS IoT Core.

Features

  • AWS IoT 1-Click service
  • Single/Double/Long Press Click Events
  • Onboard Power Status LED
  • Onboard Event Status LED
  • Onboard Wi-Fi Configuration LED
  • Removable and Chargeable NCR18650B Battery
  • Battery polarity reversed protection and indication

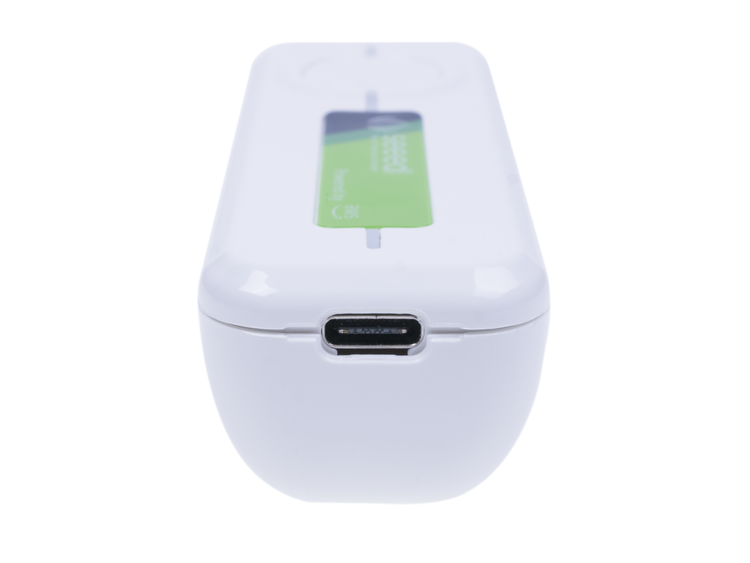

  • USB Type-C Charging
  • Stickable Bracket

Attention

Please kindly know that there is no battery in the package, while the battery is available in regular convenience stores and customers need to prepare themselves. And what we propose is Panasonic NCR18650B Flat Top 3400mAh Battery.

Photo Reference for Panasonic NCR18650B Flat Top 3400mAh Battery

Description

The Seeed IoT Button For AWS is a Wi-Fi-based, programmable button that is easy to configure and simple to use. You can use the Seeed IoT Button For AWS to capture quick customer feedback without burdening customers with time-consuming questionnaires. It is designed for enterprises and developers to easily integrate with existing business workflows and systems using the AWS IoT 1-Click service.

This IoT Button is fully compatible with the official AWS IoT 1-Click iOS app and Android app. The battery for this device is NCR18650B chargeable Li-ion battery. There is also a stickable bracket for this IoT Button. Customers can stick it on the wall or other surface and easily put the IoT Button in and get out from the bracket. The Seeed IoT Button for AWS supports three types of clicks: single, double, and long press, and 3 LEDs for different indications.

Applications

  • AWS IoT Button
  • Home Control
  • Integrate with third-party APIs
  • One-click to order takeout button
  • Remote control for Netflix

What can Seeed IoT Button For AWS do

Scenario

Methods

Hotel

By using different types of clicks to differentiate what services do the tenant wants.

Hospital

By using different types of clicks to differentiate what helps the patient wants.

Restaurant

Using different types of clicks to indicate where the customers are sitting and what food they ordered.

Manufacturing Factories

Different types of clicks to trigger different manufacture problems that appeared.

Near Airports

Install the IoT Button near the airport to investigate complaints about the noise level.


Setup, Document, and Support

Please visit our wiki for more information about Seeed IoT Button For AWS.

Specifications


Parameter

Value

Size

92*32*25mm

MCU

Dual core: 20MHz Cortex M0; 200MHz Cortex M4F

Flash

4MB

Button

100,000 Cycles

LED

RGB

Wi-Fi

802.11 a/b/g/n 2.4GHz & 5GHz

Bluetooth

BLE 5.0

Battery

3.6V Li-ion 18650 Rechargeable battery

Charging Interface

USB Type-C

Charging Current

500mA

Charging time

4-6 Hours(According to battery capacity)

Battery Protection

Overcharge, Overcurrent, Over-discharge, and Reverse polarity protection

Firmware Update

Support OTA


Hardware Overview

Part List

  • Seeed IoT Button For AWS x 1
  • Stickable Bracket x 1
  • User Manual x 1
  • Triangle Plastic Pry Opening Tool x 1

 Documents

Seeed IoT Button For AWS User Manual

Learn

Seeed IoT Button for AWS - Cloud Programmable Dash Button

This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.
