MLX90640 IR Array Thermal Imaging Camera, 32×24 Pixels, 55° FOV

  • 1 275 kr

MLX90640 IR Array Thermal Imaging Camera, 32×24 Pixels, 55° Field Of View, I2C InterfaceIR Array Thermal Imaging CameraMLX90640, 32×24 IR ArraySmall Size, Non-C

I lager.
Lagersaldo: 2
Artikelnummer: SKU55619
Dela

MLX90640 IR Array Thermal Imaging Camera, 32×24 Pixels, 55° Field Of View, I2C Interface

IR Array Thermal Imaging Camera

MLX90640, 32×24 IR Array

Small Size, Non-Contact, Low Cost



Features At A Glance

The MLX90640-D55 Thermal Camera is a small size, non-contact, and low cost IR array thermal imaging camera, with 32×24 pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.

  • Adopts MLX90640 far-infrared thermal sensor array, 32×24 pixels
  • Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate)
  • Noise Equivalent Temperature Difference (NETD) 0.1K RMS@1Hz refresh rate
  • Onboard voltage translator, compatible with 3.3V/5V operating voltage
  • Programable frame rate 0.5~64Hz (0.25~32FPS)
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)

Typical applications:

  • High precision non-contact temperature measurements
  • IR thermal imaging devices, IR thermometers
  • Smart home, intelligent building, intelligent lighting
  • Industrial temperature control, security & safety, intrude/movement detection

Specifications

OPERATING VOLTAGE3.3V/5VCURRENT< 23mA
FIELD OF VIEW (FOV)55° × 35°ABSOLUTE ACCURACY±2℃ (ambient temp. 0 ~ 50℃)
COMMUNICATION BUSI2C (0x33 by default)REFRESH RATE0.5~64Hz (0.25~32FPS)
TARGET TEMPERATURE RANGE-40 ~ 300℃OPERATING TEMPERATURE-40 ~ 85℃
DIMENSIONS28 × 16mmMOUNTING HOLE SIZE2.0mm

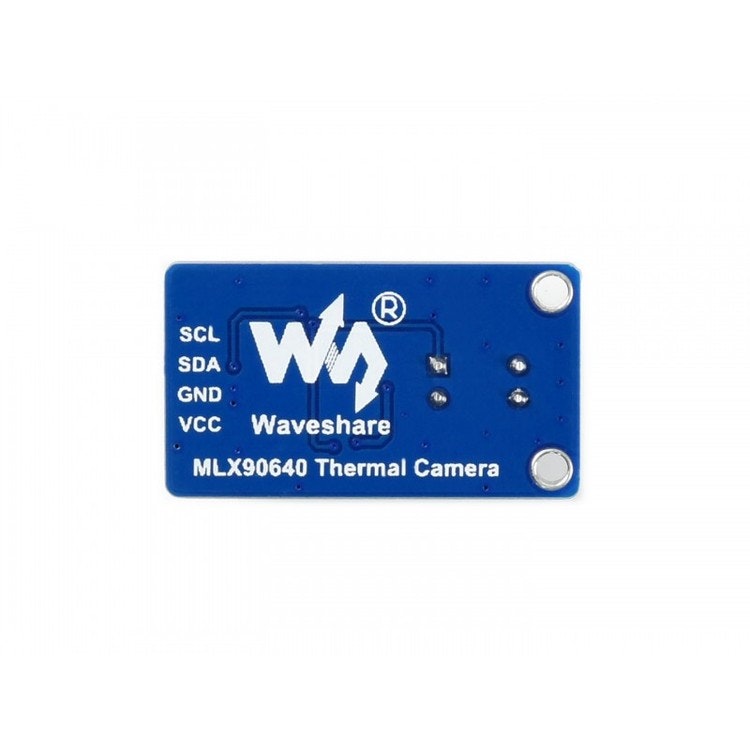

I2C Control Interface

Supports Host Boards Including Raspberry Pi/Arduino(ESP32)/STM32...

VCC3.3V/5V power input
GNDGND
SDAconnects to MCU I2C data pin
SCLconnects to MCU I2C clock pin

Demonstration



for reference ONLY, Raspberry Pi is NOT included.

Outline Dimensions


WIKI: MLX90640-D55_Thermal_Camera

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

 MLX90640-D55MLX90640-D110MLX90641-D55MLX90614ESF-BCC
Pixel array32×2416×121
Absolute accuracy±2℃ (ambient temp. 0 ~ 50℃)±0.5℃ (ambient temp. 0 ~ 50℃)
Target temp. range-40 ~ 300℃-70 ~ 380℃
Field of view (FOV)55° × 35°110° × 75°55° × 35°35°
Refresh rate0.5~64Hz (0.25~32FPS)-
Operating temperature-40 ~ 85℃-40 ~ 125℃-40 ~ 85℃
Current< 23mA≈12mA< 2mA
Market orientationmedium pixels, higher pricelow costhigh precision


Shipping

Weight: 0.007 kg

  1. MLX90640-D55 Thermal Camera x1
  2. PH2.0 4PIN wire x1
