SHT20 I2C Temperature & Humidity Sensor (Waterproof Probe)

I lager.
Antal: 1

375 kr

Artikelnummer: SKU482

This SHT20 I2C temperature & humidity sensor is equipped with the waterproof probe. It comes with the 4C CMOSens® SHT20 temperature & humidity sensor chip and the probe has gone through dual waterproof protection test.

The SHT20 I2C temperature & humidity sensor adopt Sensirion techniques. Except for the humidity sensor of capacitive type and the temperature sensor of the band gap, SHT20 contains an amplifier, A/D converter, OTP memory and a digital processing unit. Compared with early SHT1x series and SHT7x series, SHT20 shows strong reliability and long-term stability. It can measure the surrounding environment temperature and relative air humidity precisely.

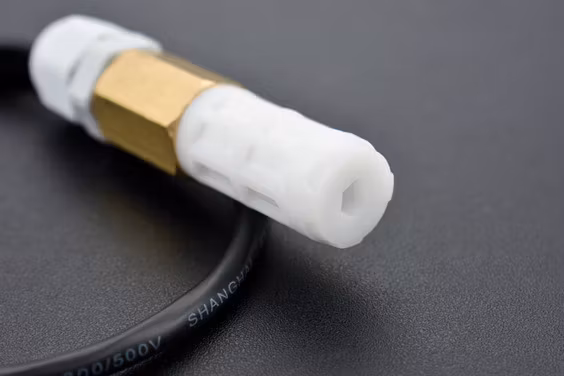

The Arduino SHT20 waterproof temperature & humidity sensor adopts dual waterproof protection techniques. The inner PCB has perfusion and encapsulation protection, and the probe enclosure is made of PE waterproof materials. This is a special waterproof breathable material that allows water molecules to seep in while blocking water droplets from seeping in at the meantime. The sensor won't be damaged even after a long time submerges in the water. There is also a built-in 10k Pull-up resistor and 0.1uf filter capacitor. It enables the sensor to be directly used with the microcontroller such as Arduino. We recommend DFRobot Gravity 4Pin Sensor Adapter convenient.

Sensor Interface:

  • Red VCC
  • Green GND
  • Blue (Black) SDA
  • Yellow (White) SCL


  • Operating Voltage: 3.3/5V
  • Communication Interface: I2C / IIC
  • Protection Class: waterproof anti-condensation
  • RH Response Time: 8s (tau63%)
  • Accuracy: ±3% RH / ±0.3 ℃
  • Measuring Range: 0-100% RH / -40-125 ℃
  • Dimension: 73mm * 17mm / 2.87 * 0.67 inches
  • Weight: 44g


Product WIKI
SHT20 Datasheet

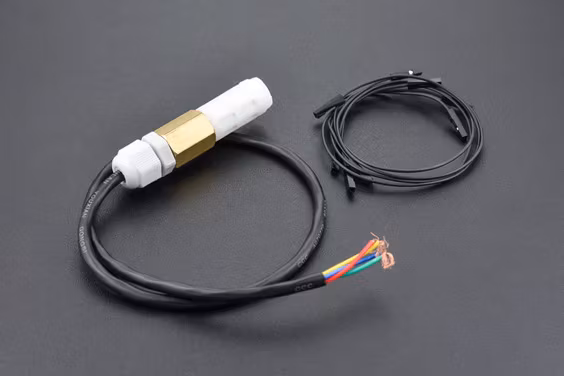

  • SHT20 I2C Temperature & Humidity Sensor (Waterproof Probe)x1

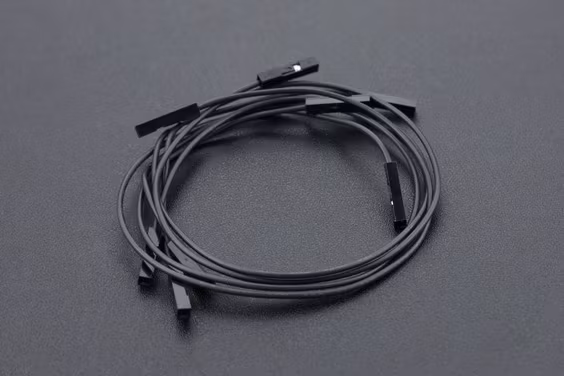

  • Jumper Wires 7.8" F/F x4
