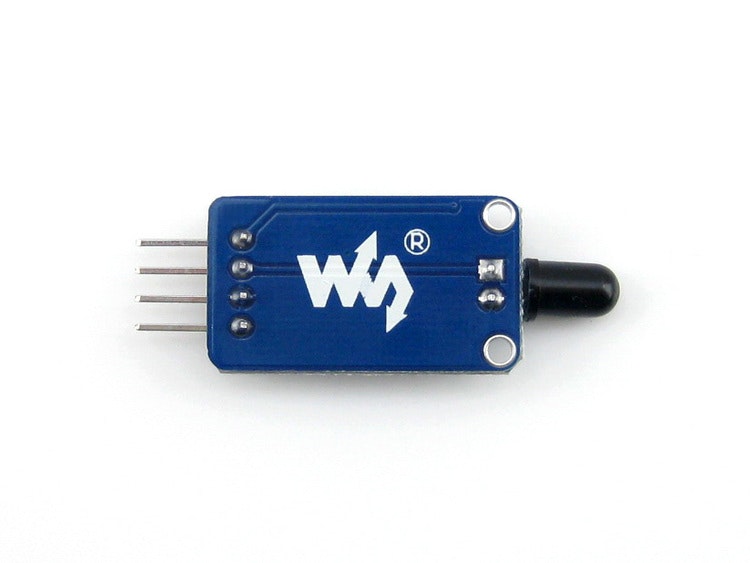

Flame Sensor

  • 45 kr

OverviewSensitive to flame spectrumFeatures wide range voltage comparator LM393Adjustable sensitivitySignal output indicatorSpecificationsSpectrum range: 760nm

I lager.
Artikelnummer: 241
Dela
  • Information

Overview

  • Sensitive to flame spectrum
  • Features wide range voltage comparator LM393
  • Adjustable sensitivity
  • Signal output indicator

Specifications

  • Spectrum range: 760nm ~ 1100nm
  • Detection angle: 0 - 60 degree
  • Power: 3.3V ~ 5.3V
  • Operating temperature: -25℃ ~ 85℃
  • Dimension: 27.3mm * 15.4mm
  • Mounting holes size: 2.0mm

Applications

  • Fire detection
  • Fire fighting robot
  • Fire alarm

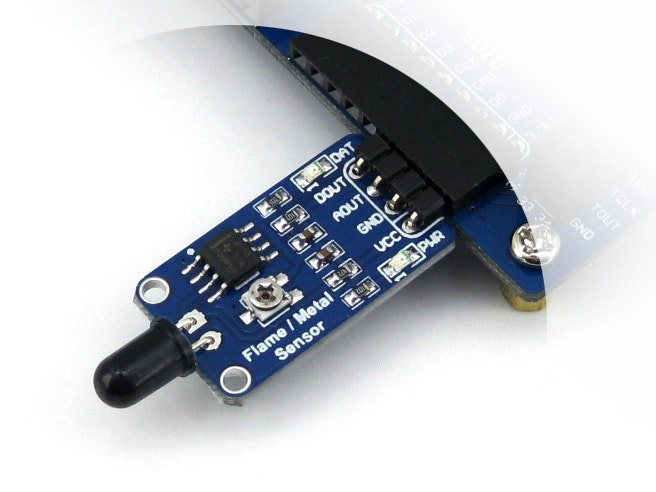

How to Use

In the case of working with a MCU:

  • VCC ↔ 3.3V ~ 5.3V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)

Note: the Flame Sensor is used for detecting fire without any fire-protection for itself, please keep distance from the fire to avoid damage.

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: Wiki
