Luckfox PicoKVM Lightweight IP KVM Remote Management Tool

Remote Control and IoT Automation with Waveshare Luckfox PicoKVM – The Future of Smart Management Systems

At HiTechChain, we work with the latest technologies in AI, IoT, and cloud solutions.
One of our most exciting projects right now is based on the Waveshare Luckfox PicoKVM – a compact yet powerful platform that enables remote control, monitoring, and automation in entirely new ways.

In this post, we will show how PicoKVM can be applied in education, lab environments, and industrial projects – from simple remote access to advanced AI-driven automation.

Project Idea: Remote Lab Server with PicoKVM

Students build a system where they can remotely control a development computer or lab server via the web.
This includes:

  • Video output streaming (HDMI ? PicoKVM ? browser)

  • Keyboard and mouse commands over the network

  • Virtual USB device mounting for file/ISO access

  • Power ON/OFF and reset via GPIO

  • A dashboard for system status, IP address, and logs

  • Secure authentication and access control

Functional Requirements

  • Live video from the host computer (HDMI ? PicoKVM ? browser)

  • Keyboard & mouse commands sent via network to the host

  • Virtual USB storage mounting for files or OS installation

  • Power/reset control via GPIO on PicoKVM

  • Dashboard showing IP address, status, and logs

  • Secure access with authentication and role-based permissions

Project Plan (4–5 Weeks)

Week 1 – Research & Planning

  • Study PicoKVM specifications

  • Create a system diagram

  • Plan APIs and interfaces

Week 2 – Basic Integration

  • Connect HDMI/USB between host and PicoKVM

  • Verify video streaming and HID input over network

Week 3 – Backend & API Development

  • Build an API (e.g., with Python Flask/FastAPI or Node.js)

  • Connect API to PicoKVM via web service

Week 4 – Frontend & Dashboard

  • Develop a web UI to display video feed and control buttons

  • Add power management controls

Week 5 – Security, Testing & Documentation

  • Implement authentication and role-based access

  • Test with multiple clients and remote WAN access

  • Write project report and present demo

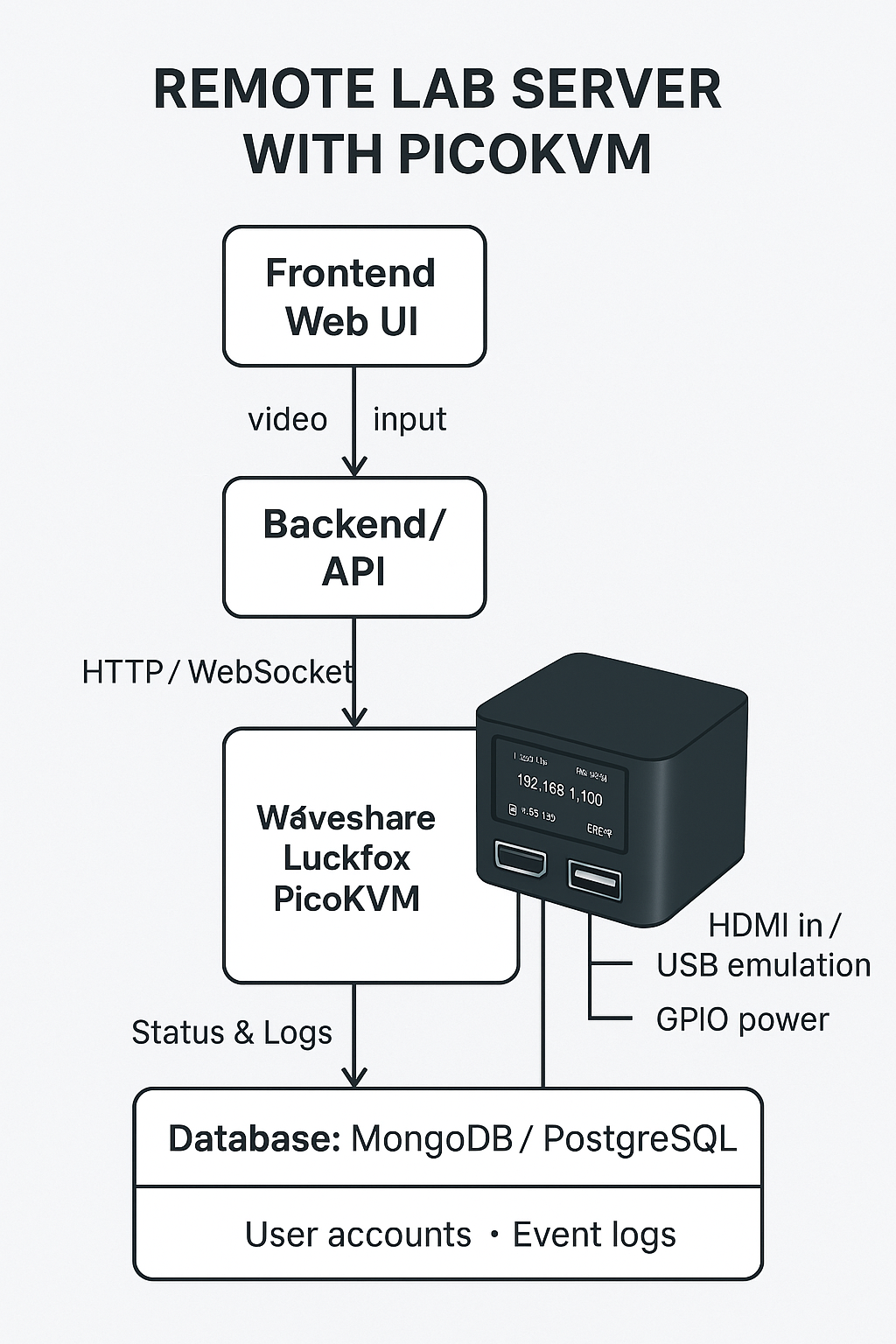

Structural Architecture (System Diagram)

[Frontend Web UI]
video / input
?
[Backend API]
HTTP / WebSocket
?
PicoKVM
HDMI in / USB emulation / GPIO power
?
Status & Logs
?
[Database: MongoDB / PostgreSQL]
• User accounts
• Event logs

- Authentication & session management

- Dashboard with video feed and system logs

Suggested Tech Stack

  • Backend: Python (Flask/FastAPI) or Node.js + Express

  • Frontend: Vue.js / React or lightweight web app

  • Database: MongoDB Atlas or PostgreSQL

  • Authentication: JWT, OAuth, role-based access control

  • Communication: WebSockets for video/input streams

  • Security: TLS/HTTPS, firewall rules, secure authentication

Exercises / Milestones

  1. Connect HDMI + USB to PicoKVM and verify video + input over the network

  2. Build API endpoints (e.g., “get video stream URL” / “send key press”)

  3. Create dashboard showing live video and control buttons

  4. Add power control (ON/OFF) via GPIO

  5. Log events (key presses, power cycles) into database

  6. Implement secure login and role-based access

  7. Test WAN access via secure VPN (e.g., Tailscale/ZeroTier)



Learning Outcomes for Students

  • Understand how IP-KVM technology works at the hardware/software level

  • Work with real-time data streams (video + HID input)

  • Build APIs and frontends for remote system management

  • Learn about security challenges in remote access systems

  • Gain experience in hardware-software integration

? This project blends practical IT skills with modern IoT/edge computing concepts and is ideal for technical education in schools, universities, or innovation labs.
