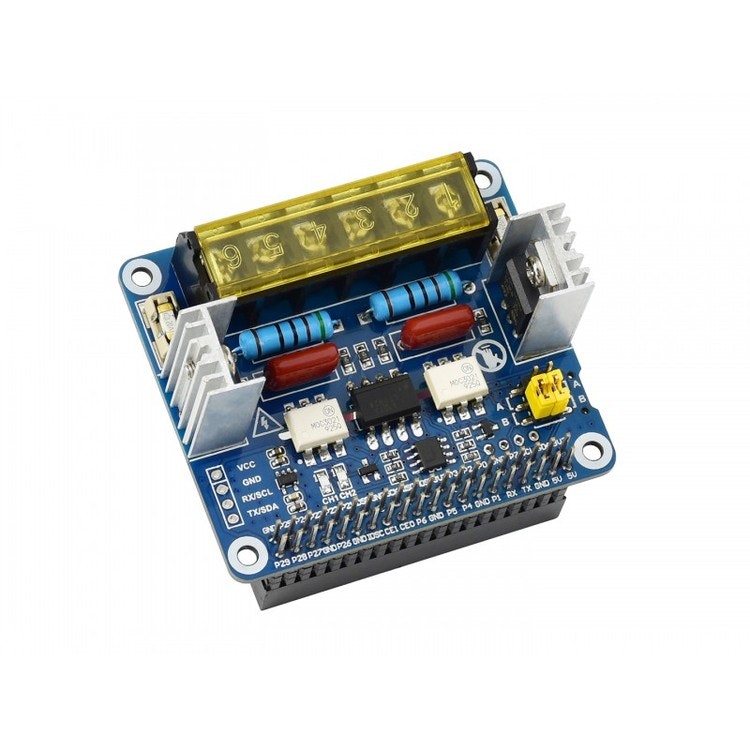

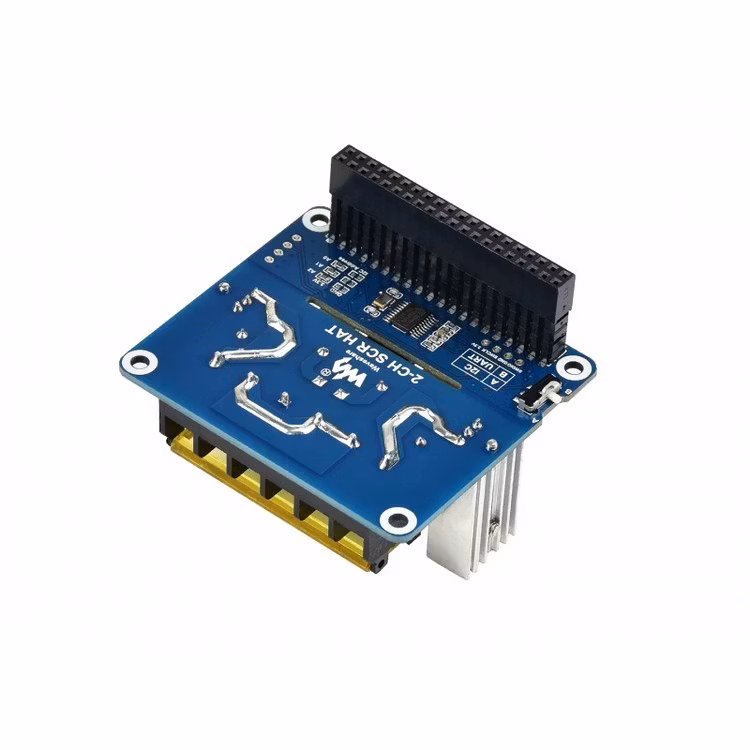

2-CH Triac HAT for Raspberry Pi, Integrated MCU, UART / I2C

  • 34.72 EUR

Dual Channels Bidirectional Triac HAT For Raspberry Pi, Integrated MCU, Commands Control, UART / I2CDual Channels Triac HATBidirectional SCR Isolated HAT, Dual

I lager.
Stock: 2
Article Number: 764
Share
  • Information

Dual Channels Bidirectional Triac HAT For Raspberry Pi, Integrated MCU, Commands Control, UART / I2C

Dual Channels Triac HAT

Bidirectional SCR Isolated HAT, Dual Channels Triac Output Control

Designed for Raspberry Pi

Advantages Over Relay

High Efficiency, No Mechanical Noise Or Wear, Quick Response, Adjustable Output

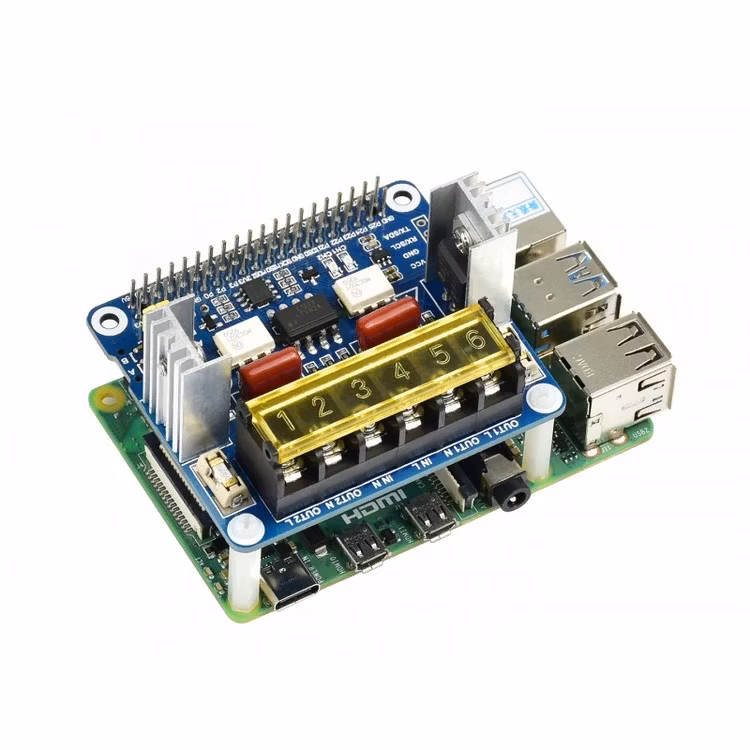

Designed For Raspberry Pi Series

Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards

FEATURES AT A GLANCE

  • STM32F0 MCU controller, requires minimal Raspberry Pi resource, UART / I2C communication
  • RC snubber circuit, protect the triac from power fluctuation
  • Up to 4400W output power, under ideal heat dissipation condition
  • Optocoupler isolation, preventing interference from the high voltage circuit
  • Indicator for easy checking the status of triac
  • Reserved UART and I2C interface, for working with other host control boards
  • Data rate: up to 921.6kbps for UART，up to 1024kbps for I2C
  • Comes with development resources and manual (examples in C and Python)

STM32F0 MCU Onboard

Integrates STM32F030 MCU, Supports Directly Command Control, Easy For Developping
Quicker Response, Requires Minimal Resource From The Raspberry Pi

High Data Rate, Always One Step Ahead

Up To 921.6kbps For UART，Up To 1024kbps For I2C

Powerful Output Power

Up To 4400W Output Power, Under Ideal Heat Dissipation Condition

Optocoupler Isolation Safety First!

Optoisolated Solution, Preventing Interference From The High Voltage Circuit



Home Appliance Support

In The Example Of Controlling 220VAC Home Appliances

Applications

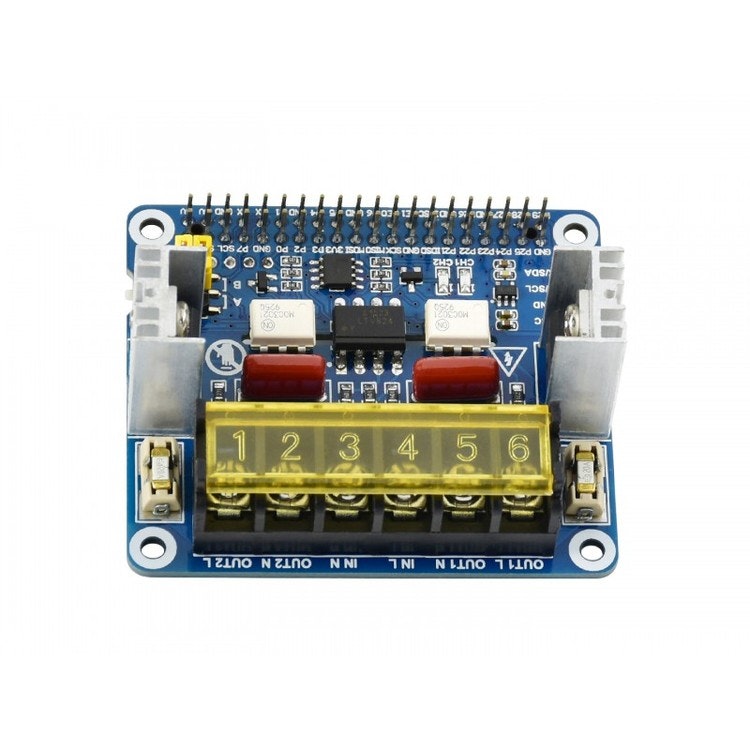

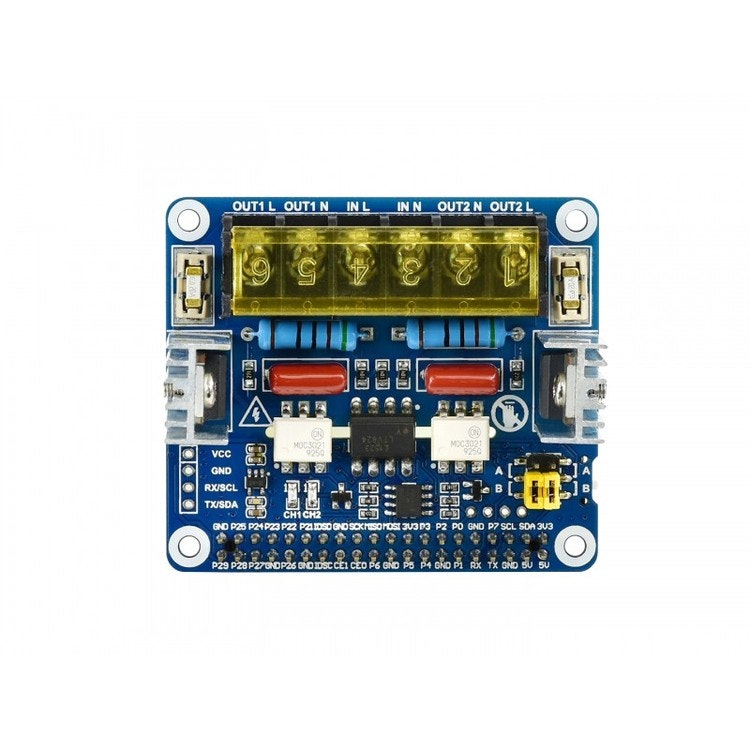

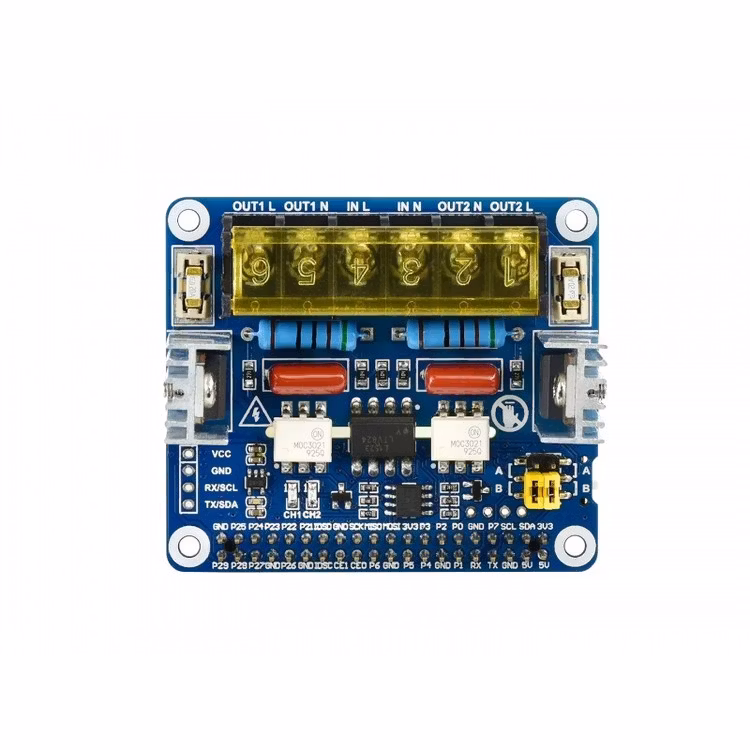

What's On Board

  1. BTA24-600 high power bidirectional triac
  2. MOC3021S photocoupler, the triac driver
  3. LTV-824S AC photocoupler
  4. RC snubber circuit
  5. LM358DR OP amplifier
  6. STM32F030F4P6 main controller
  7. RT9193-33PB power chip
  8. Output indicator
  9. 20A blow fuse

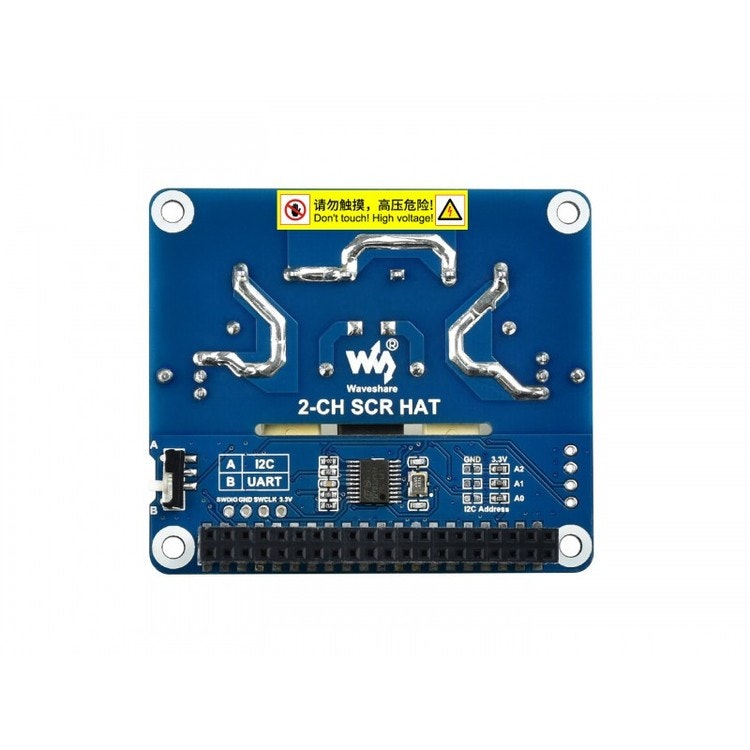

  1. Standard Raspberry Pi 40PIN GPIO header
  2. MCU control interface, for use with other host control boards like Arduino
  3. AC input
  4. AC output
  5. Data bus selection
    A: use Raspberry Pi I2C bus
    B: use Raspberry Pi UART bus
  6. Mode selection
    A: I2C mode
    B: UART mode

Specifications

AC VOLTAGE100 ~ 600VUART DATA RATE1.2 ~ 921.6 kbps
AC CURRENT0~20AI2C DATA RATE1024 kbps
CONTROLLERSTM32F030LOGIC LEVEL VOLTAGE3.3V/5V
COMMUNICATION BUSI2C/UARTDIMENSIONS65 × 56.5(mm)

Pinout Definition

Outline Dimensions

Resources & Services



Comes with example in C and Python

WIKI: www.waveshare.com/wiki/2-CH_TRIAC_HAT
