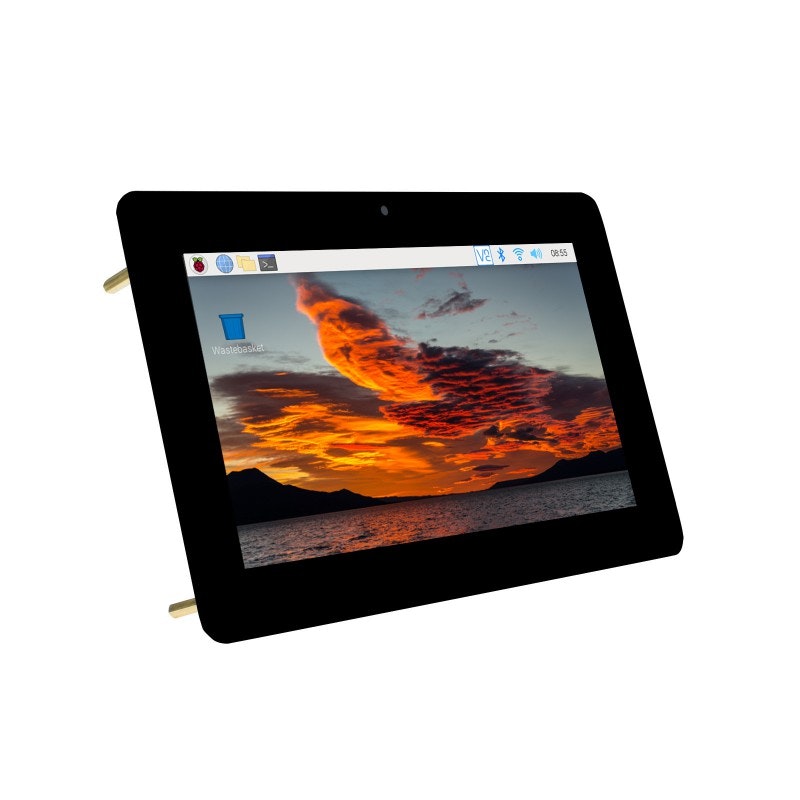

8inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800×480

  • 93.10 EUR

8inch Capacitive Touch Display For Raspberry Pi, 800×480, DSI Interface8″ Touch DisplaySize 8″Resolution 800×480Display Port DSIPower Consumption Low PowerTouch

I lager.
Article Number: 1086
Share

8inch Capacitive Touch Display For Raspberry Pi, 800×480, DSI Interface

8″ Touch Display

Size 8″

Resolution 800×480

Display Port DSI

Power Consumption Low Power

Touch Type Capacitive

Touch Points 5-Points

Touch Port I2C

Touch Panel Toughened Glass

Device & System Support



Raspberry Pi

Supports Raspberry Pi OS, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*

* CM3/3+/4 requires extra adapter board

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Touch Control



1) up to 5-points touch, depending on the operating system.

Adjustable Brightness Via Software

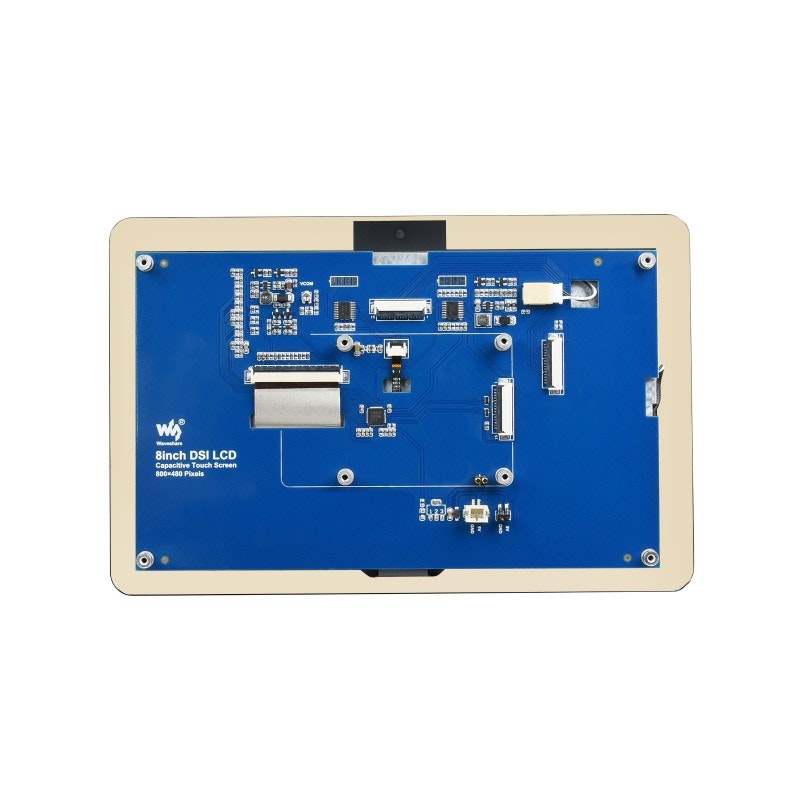

Design Features

  1. LCD FFC cable anti-interference design, more stable for industrial application
  2. VCOM voltage adjustment for optimizing display effect
  3. Power supply via pogo pins, eliminating messy wiring
  4. Two types of 5V output headers, for connecting cooling fan or other low power devices
  5. Reversed camera hole on the touch panel, allows integrating external camera
  6. Large front panel design, make it easy to match user-defined cases, or to be integrated into sorts of devices
  7. Adopts SMD nuts for holding and fixing the board, more compact structure

Appearance And Dimensions

Resources & Services

Wiki: 8inch_DSI_LCD

Shipping list

Weight: 0.412 kg

  1. 8inch DSI LCD x1
  2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x2
  3. 2PIN wire 10cm x1
  4. Screws pack x1
