2.8inch Touch LCD Shield for Arduino

  • 25.98 EUR

2.8inch Touch LCD Shield for ArduinoFeaturesResistive touch screen TFT LCD, 2.8inch, 320x240 resolutionStandard Arduino interface, compatible with development b

I lager.
Stock: 3
Article Number: Ardsk30
Share
  • Information

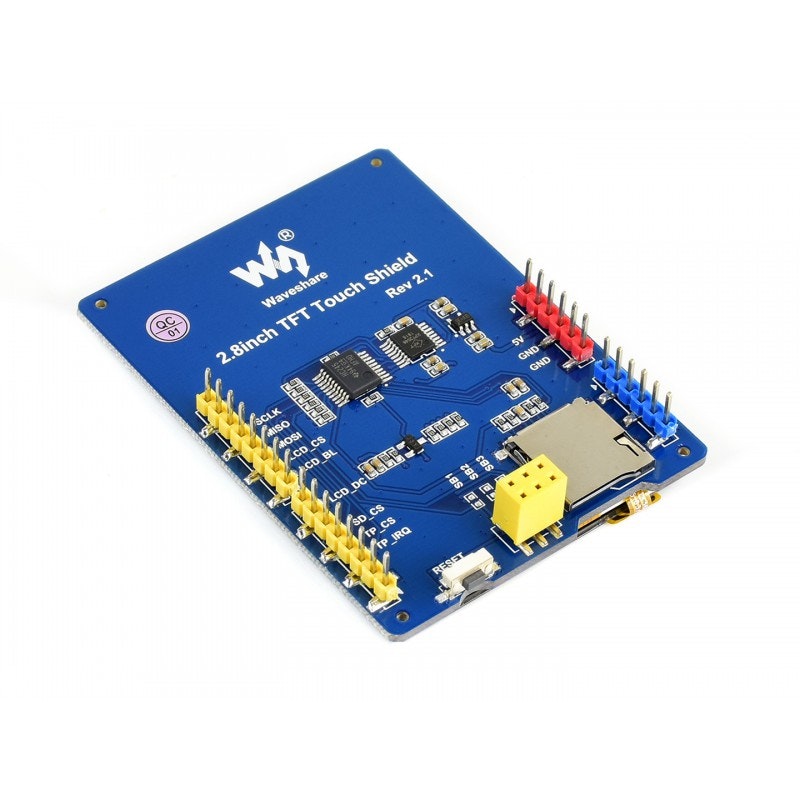

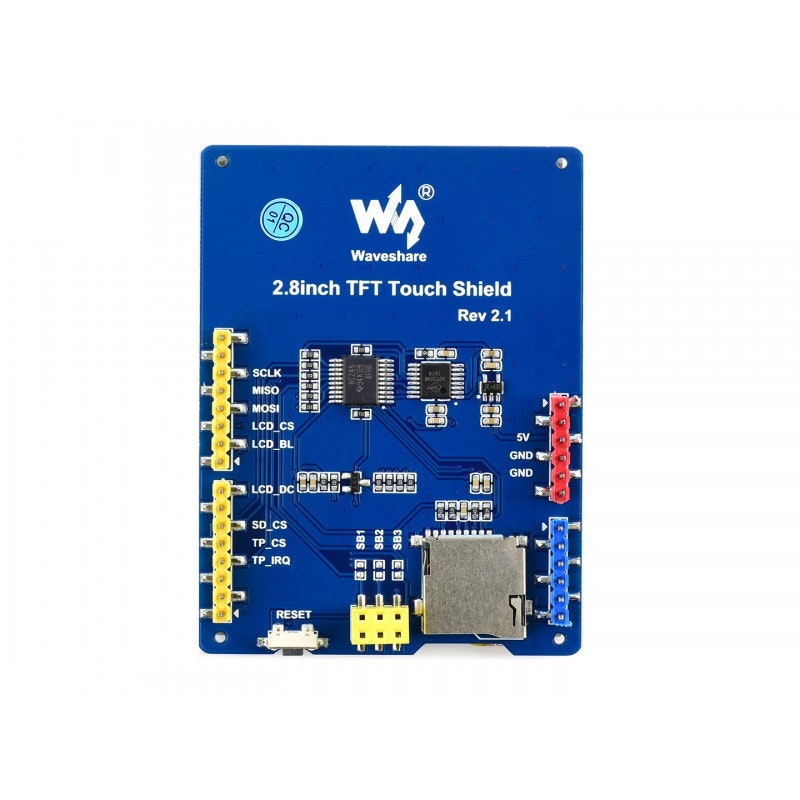

2.8inch Touch LCD Shield for Arduino

Features

  • Resistive touch screen TFT LCD, 2.8inch, 320x240 resolution
  • Standard Arduino interface, compatible with development boards like : Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
  • Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
  • Micro SD slot, provides an easy way to store photos for displaying
  • Controlled via SPI, only a few Arduino pins are used
  • Backlight adjustable by program, lower power consumption

Key Parameters

LCD TYPE
TFT
LCD INTERFACE
SPI
LCD CONTROLLER
ST7789
TOUCH SCREEN TYPE
Resistive
TOUCH SCREEN CONTROLLER
XPT2046
COLORS
RGB, 65K colors
RESOLUTION
320x240 (Pixel)
I/O VOLTAGE
3.3V/5V

Interface

ARDUINO PIN
SYMBOL
DESCRIPTION
D3
TP_IRQ
Touch panel interrupt
D4
TP_CS
Touch panel chip select
D5
SD_CS
Micro SD card chip select
D7
LCD_DC
LCD data/command selection
D9
LCD_BL
LCD backlight control
D10
LCD_CS
LCD chip select
D11
MOSI
SPI data input
D12
MISO
SPI data output
D13
SCLK
SPI clock

External Dimension

2.8inch-TFT-Touch-Shield-dimension

Development Resources

Wiki : www.waveshare.com/wiki/2.8inch_TFT_Touch_Shield


Shipping list

Weight: 0.038 kg

  1. 2.8inch TFT Touch Shield x1
