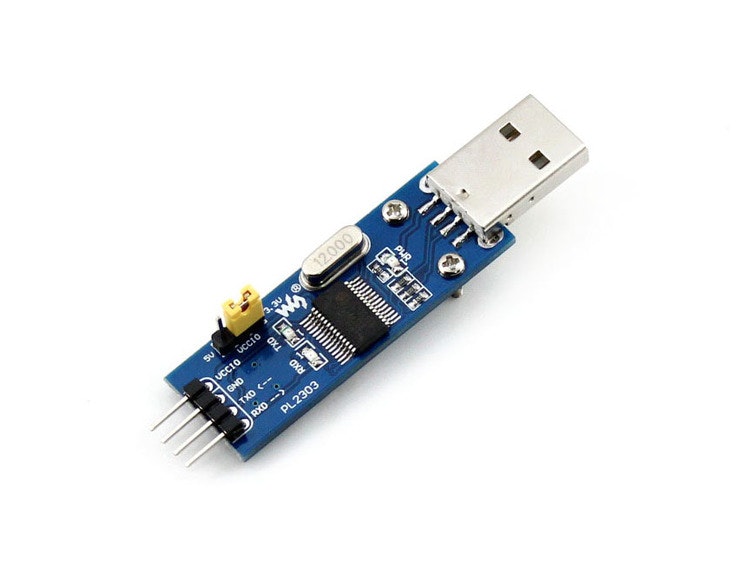

PL2303 USB UART Board (type A)

  • 7.33 EUR

PL2303TA onboard (the latest device, compatible with PL2303HXA)Supports windows XP/7/8/8.1/10/...3 power mode : 5V output, 3.3V output, or powered by target boa

I lager.
Article Number: 468
Share
  • PL2303TA onboard (the latest device, compatible with PL2303HXA)
  • Supports windows XP/7/8/8.1/10/...
  • 3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)
  • 3 LEDs: TXD LED, RXD LED, POWER LED

How to Use

In the case of working with a MCU:

  • VCCIO ↔ 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
  • GND ↔ GND
  • TXD ↔ MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
  • RXD ↔ MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/PL2303_USB_UART_Board_(type_A)

Shipping list

Weight: 0.008 kg

  1. PL2303 USB UART Board (type A) x1
  2. 4-pin custom connector jumper wire x1
