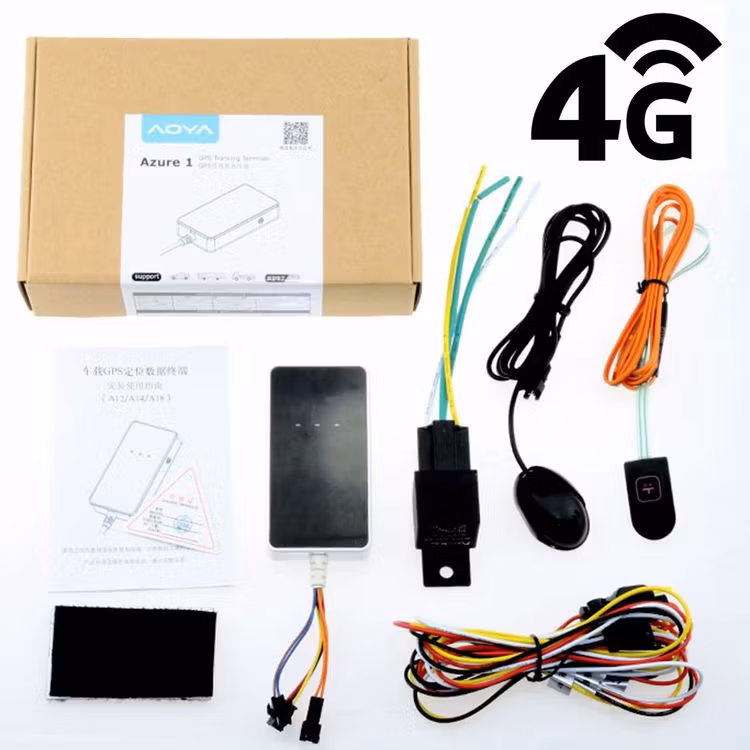

Bil GPS Tracker

71,39 €

Hög säkerhet bagage och lastbehållare spårning GPS tracker med följande funktioner. Garanti : 12 månader Functions: &nbs

Produkten är tyvärr slut i lager. :(

Article Number: SKU95

Information

Hög säkerhet bagage och lastbehållare spårning GPS tracker med följande funktioner. Garanti : 12 månader

Functions:

Accurate positioning, accuracy up to 5 meters.
GPS+BDS +LBS three-mode positioning.
Functions: ACC detection, remote power off, DC detection, power off alarm, overspeed alarm, language intercom, electronic fence, remote photography, etc.
Industrial design, working voltage 9V - 100V.

Applications:

Rental vehicles

Credit vehicles

Passenger vehicles

Freight vehicles

Specifications:

Electric Specifications
Power supply mode: Battery power supply
Working voltage range: DC 9V - 100V
Working current: 12V/30MA-60MA
Sleep current: 12V/ 5ma-15ma
Built-in battery capacity: 180mAH (3.7v polymer battery)
Environmental Features
Working temperature range -30℃ - 75℃
Storage temperature range, low - 30 ℃ 80 ℃
Working humidity range - 5%-95%
Communication features
Communication module brand/chip model QUECTEL EC20
Communication frequency band -
LTE	FDD-LTE :B1/B3
	TDD-LTE :B38/ B39/ B40/ B41
3G	WCDMA:B1
	TD-SCDMA:B34/B39
	EVDO/CDMA2000 1x :BC0
GSM/EDGE	B3/B8
Communication antenna - built-in antenna
GPS/DBS Positioning Characteristics
Positioning module brand/chip model ZKM AT6558D
Cold start time - average 32 seconds
Hot start time - average 1 second
Sensitivity (tracking) -162DBM
Positioning antenna - built-in antenna
External Interface
Speaker output interface: Support 2-Pin external speakers
Microphone input interface: Yes, supports 2-Pin external microphone
I/O Port	Low output one circuit (cut off oil and electricity)
	High input first circuit (ACC)
	Low input first line (SOS)
5V Ouput	Yes, 1 Channel
ADC detection input interface: No
RS485 interface: No
RS232 interface/CAN/K line(compatible): 1 Channel, Can connect to external camera,
RFID and other external equipments
Appearance Specifications
Main machine size (length, width and height) 87mm * 64mm * 26mm
Host Machine Weight:140g
Shell material ABS plastic
IP protection level: No
Strong magnetic: No
