10.1inch Capacitive Touch Screen LCD (E), 1024×600, HDMI, IPS, Fully Laminated Screen

10.1inch Capacitive Touch Screen LCD (E), 1024×600, HDMI, IPS, Fully Laminated Screen, Supports Raspberry Pi, Jetson Nano, And PC.

10.1" HDMI Touch Display

Size  10.1"

Resolution  1024×600

Display Port  HDMI

Display Panel IPS

Viewing Angle 170°

Touch Type Capacitive

TouchPoints 10-Points

Touch Port  USB

Touch Panel  Toughened Glass

Touch Panel Tech  Fully Laminated

OSD Menu Brightness/Contrast

Audio Output1 3.5mm Jack

Audio Output2 4PIN Header

Gaming  Xbox360/PS4/Switch

Device & System Support

Raspberry Pi

Supports Raspbian, 10-points touch, driver, free
Supports Ubuntu / Kali / WIN10 IoT, single-point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single-point touch, driver, free

PC

Supports Windows 10 / 8.1 / 8 / 7, 10-points touch, driver free

Game Console

Xbox360, PS4, Switch...

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With AI Computer Jetson Nano

Working With Mini PC

Display

IPS Panel

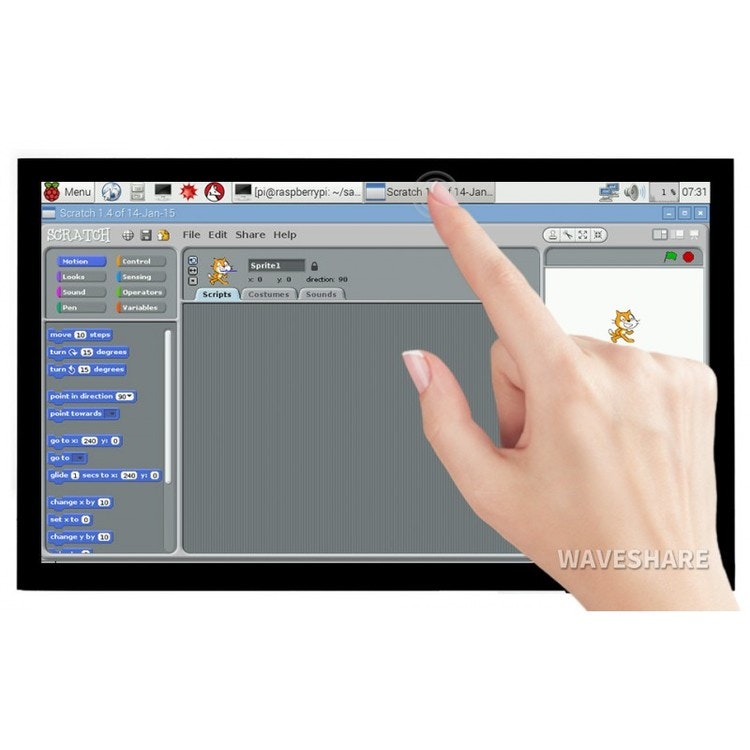

Touch Control

1) up to 10-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Enjoy Gaming

* audio output from earphone jack and speaker header.

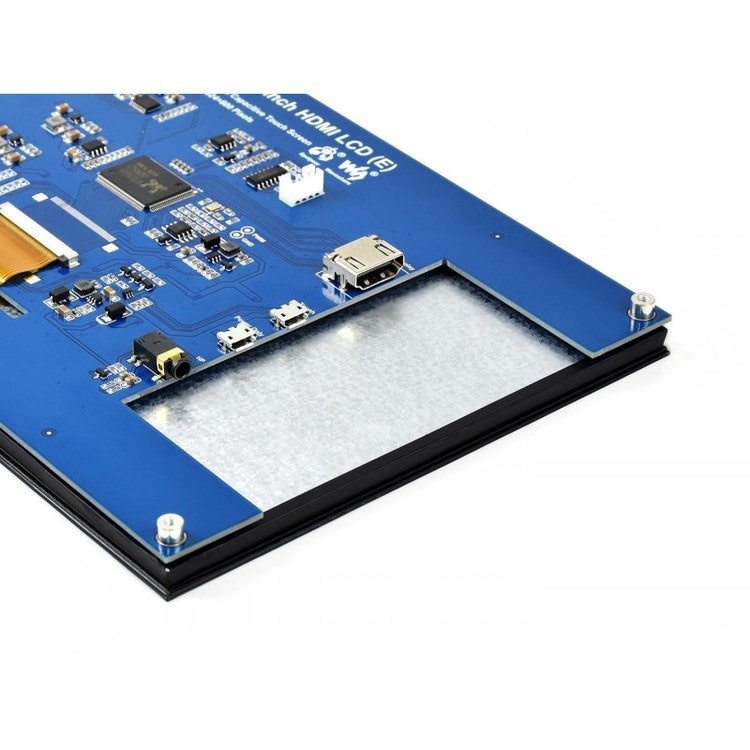

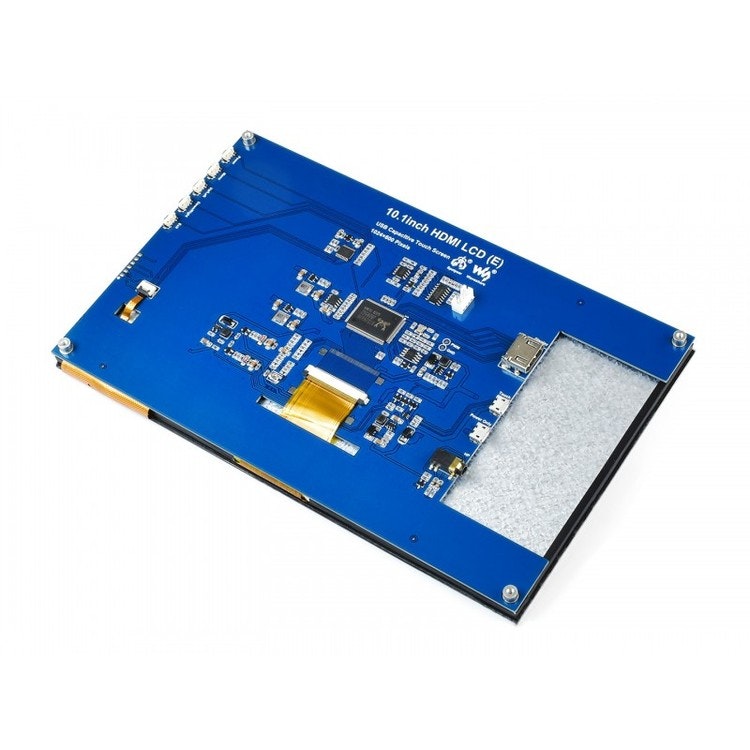

Appearance And Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/10.1inch_HDMI_LCD_(E)

Shipping list

Weight: 0.598 kg

1. 10.1inch HDMI LCD (E) x1
2. HDMI cable x1
3. HDMI to Micro HDMI Adapter x1
4. USB-A to Micro-B cable x1
